ANthony 101 - Door Female Plug Replacement (1989 to 1991); Frame Female Plug And;Or Socket Replacement (1991 to Present)

Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 25 of 95
21. Door Female Plug Replacement (1989 to 1991)
1. Model 101 Only – Gently insert flat-head screwdriver under edge of top side access
plate and pull up to remove (Hinge Pin and Cover Plate/Door Cut-Away).
2. Unsnap hinge pin from female receptacle.
3. Female plug is installed with additional lead wire. Pull female plug out through access
hole and cut Black, White and Green/Yellow lead wires.
4. Reverse instructions to replace door female plug. Re-wire Black to Black, White to
White and Green/Yellow to ground.
5. Replace side access plate.
22. Frame Female Plug and/or Socket Replacement (1991 to Present)

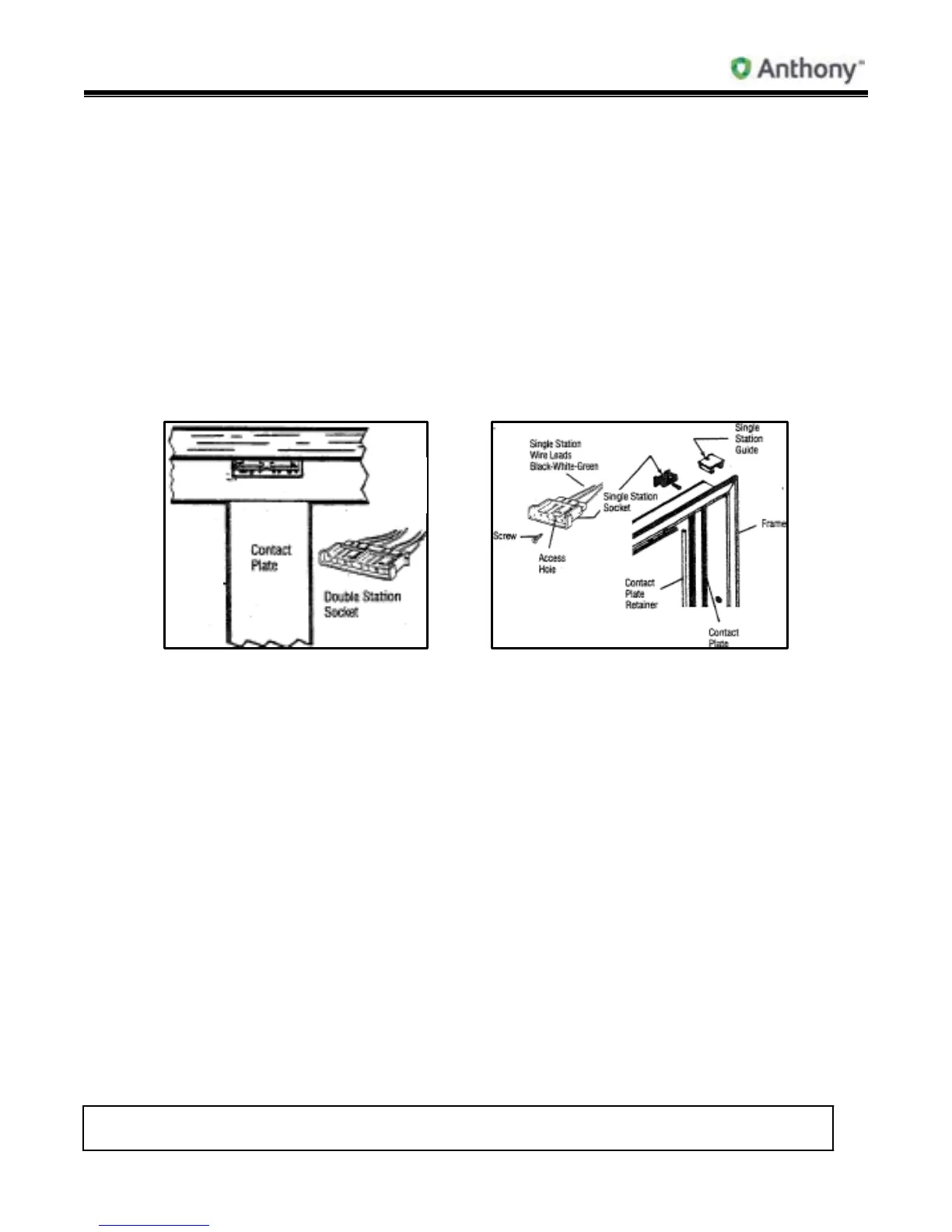

Double Station Socket Single Station
Socket
Model 100R, 100FR, 101 (1989) Model 100R, 100FR, 101 (1987 to Present)
Note: Double Station Socket Wire Leads – 2 Reds, 2 Whites, 2 Greens
1. Model 101 Only – Frame female plug is removed through front side of frame.
2. Insert small Phillips-head screwdriver into round access hole in face of female plug, and
turn screw counter-clockwise to remove. For double station socket replacement,
remove two screws out through front.
3. Female plug has extra length wire leads in raceway for easy placement.
4. Pull plug out front and cut lead wires: Black-White, and Green/Yellow.
5. Reverse instructions to re-wire: Black to Black, White to White and Green/Yellow to
ground.
