Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service &
Installation

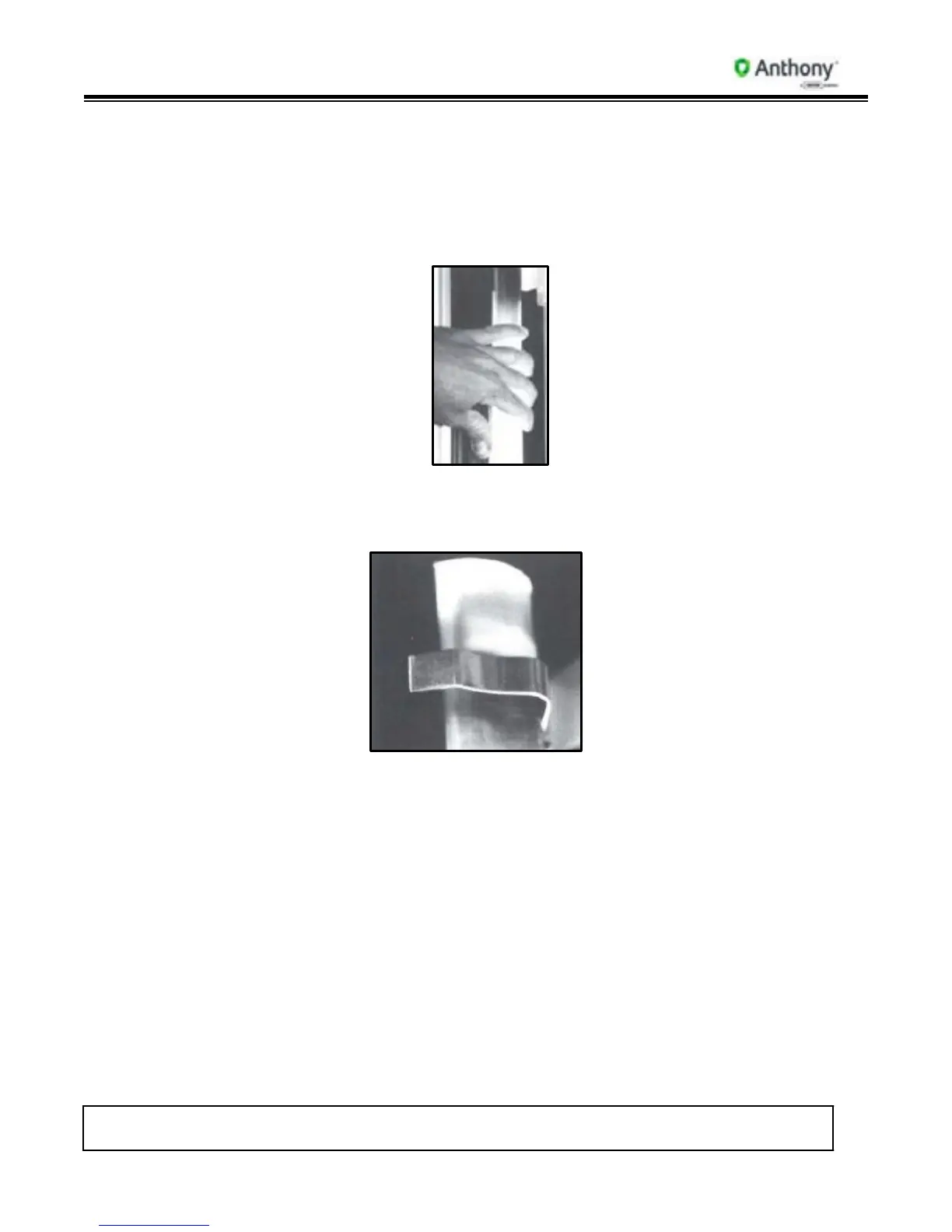

5. Re-install ELS lens. If lens has been completely removed from fixture, pull grooved
plastic rear section of fixture forward, and snap rear edge of ELS Lens back into the
groove. (This part of the light fixture has a “hinge” or flexible portion, that swings away
for easy bulb access. Install clip on hinging side, if required, before re-installing the
other end of the lens. Starting at the top, snap the other side of the lens into the front
groove of the lamp fixture.
6. End clips conform to the shape of the end fixture, and can be snapped into place only
one way. The curved sides of the spring steel clip should be touching the lens. Snap
the top and bottom clips into place.
IMPORTANT: Bulb insulators must be on each end of bulb before lens is re-installed.
Foam end caps should be securely attached to top and bottom of lamp
sockets. (Foam end caps are cut to fit snugly, but if they have become
dislodged, or pulled out during changes, they must be replaced!)
7. Turn light power on.
