Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 50 of 95

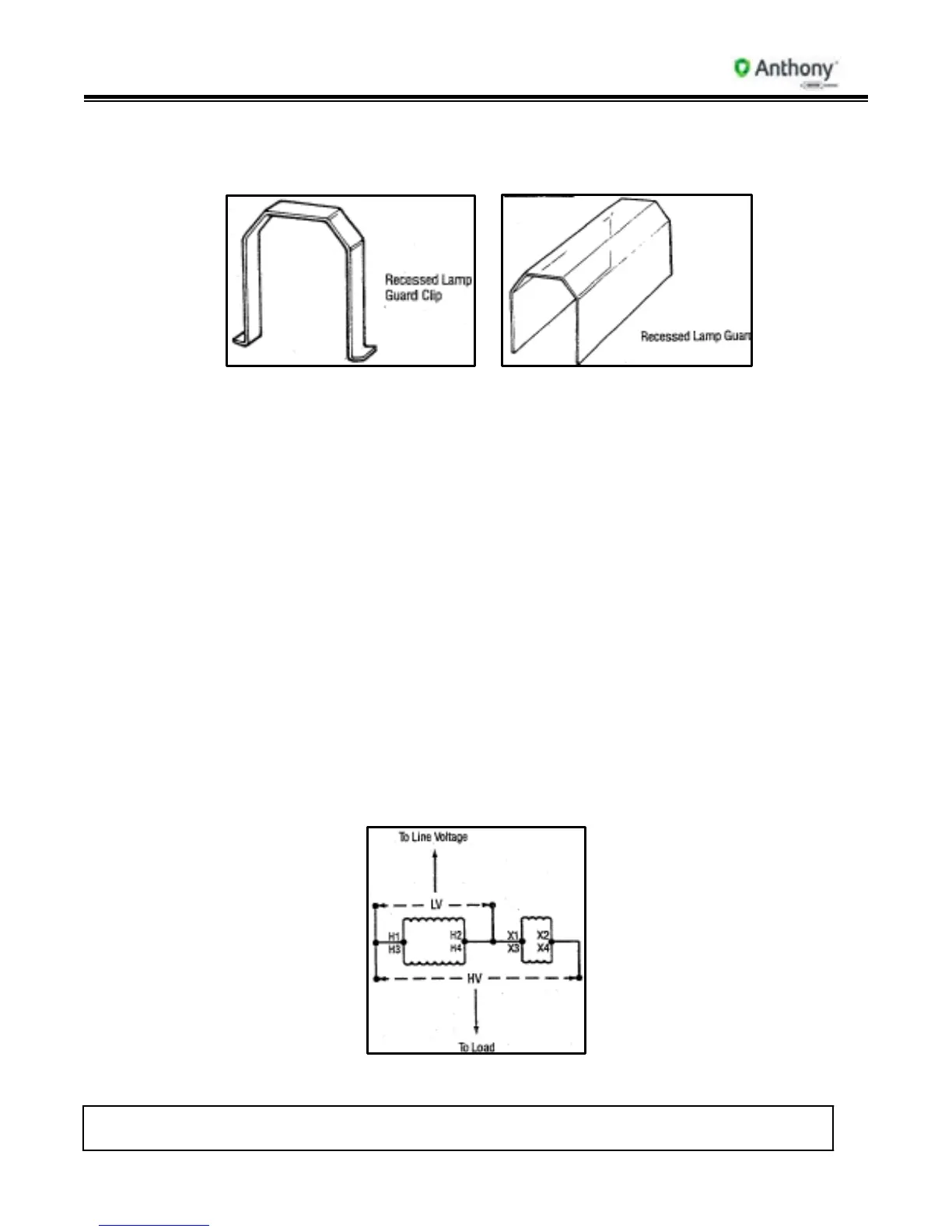

52. Recessed Lamp Guard Replacement with Remote Ballast
1. Compress metal safety clips on each end and in the center of light guard to remove.
2. Lift light guard up to release from lower shield clip, drop down to release guard from top
clip.
3. To replace, insert guard into bottom clip first, then into top clip. Compress metal safety
clips when they’re put into recessed channel. Release to let clip seat into groove in
recessed channel.
4. To replace end plastic clips, compress sides and pull out.
5. To replace end clips, compress new end clip and insert into access groove in light
channel.
53. Recessed Lamp Replacement
1. Remove light guard per previous instructions.
2. Lift bulb up into top plunger socket and pull bulb out and down at bottom to remove.
3. To replace bulb, insert bulb into top light socket and set into bottom socket.
4. Re-install light guard and clips.
54. “Boost & Buck” Transformer Wiring Diagram
1. Recommended wiring for 110/120 volt applications.
