ANthony 101 - Model 101 Door Cylinder Lock Replacement or Repair

Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 29 of 95
3. Anthony provides pre-drilled screw holes in bar. Customer must drill a #30 or 1/8” hole
in door rail 13/16” from each side of door rail.
4. Screws for mounting bar are self-tapping. Screws are not to exceed 3/8” in length.
5. Mount bar at desired vertical height to protect door glass.

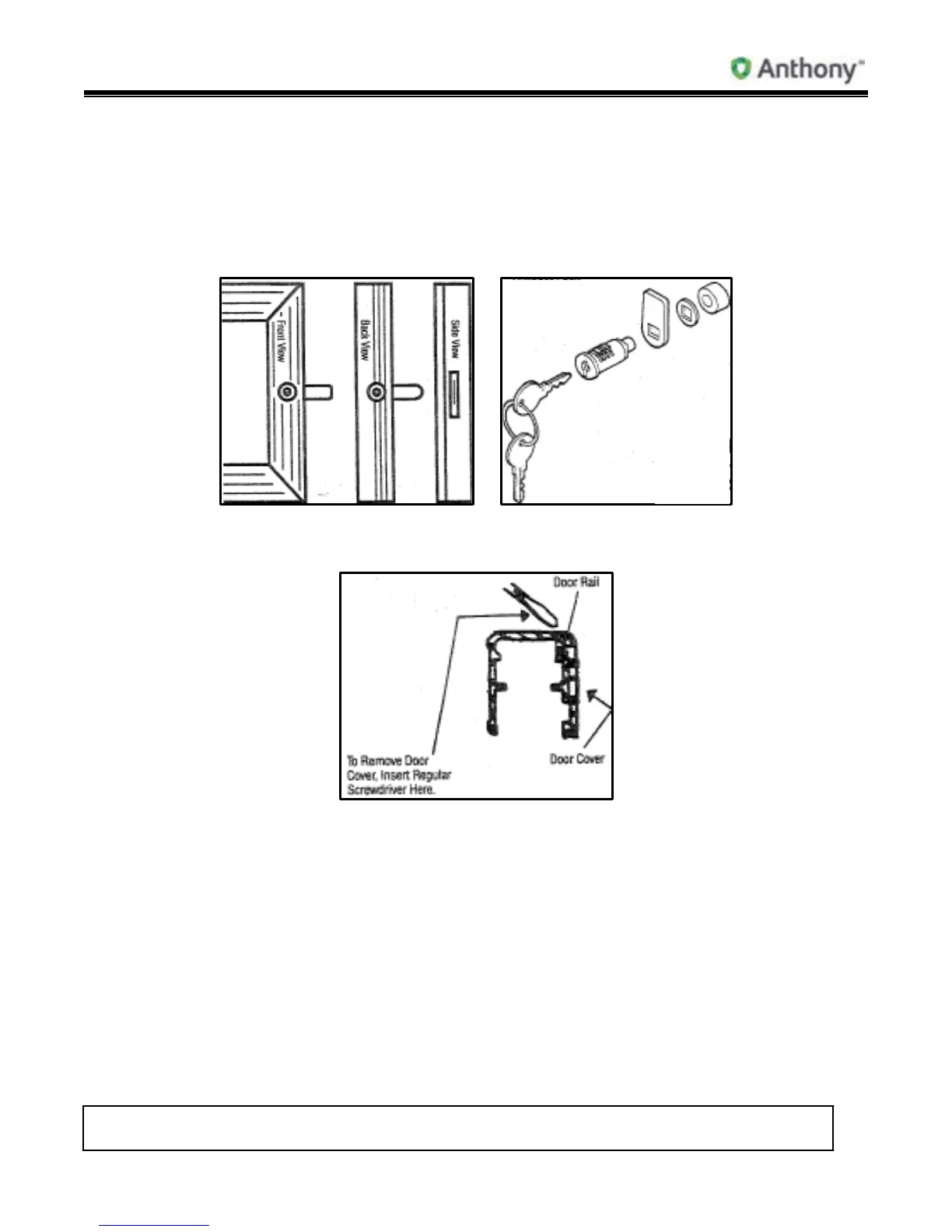

31. Model 101 Door Cylinder Lock Replacement or Repair
Cylinder
Lock
1. If lock arm is bent or damaged, remove door plastic from back of door.
2. Insert Allen wrench in lock access hole and remove screw.
3. Pull washers out, then lock arm and replace.
4. Reverse instructions to replace.
5. If cylinder lock is defective, follow instruction #2 above. Insert key into lock and pull lock
out through front of door.
6. Reverse instructions to replace.
