ANthony 101 - Contact Plate and Contact Plate Retainer Replacement

Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 20 of 95
13. Contact Plate and Contact Plate Retainer Replacement
End and Center Mullion (1987 to Present)

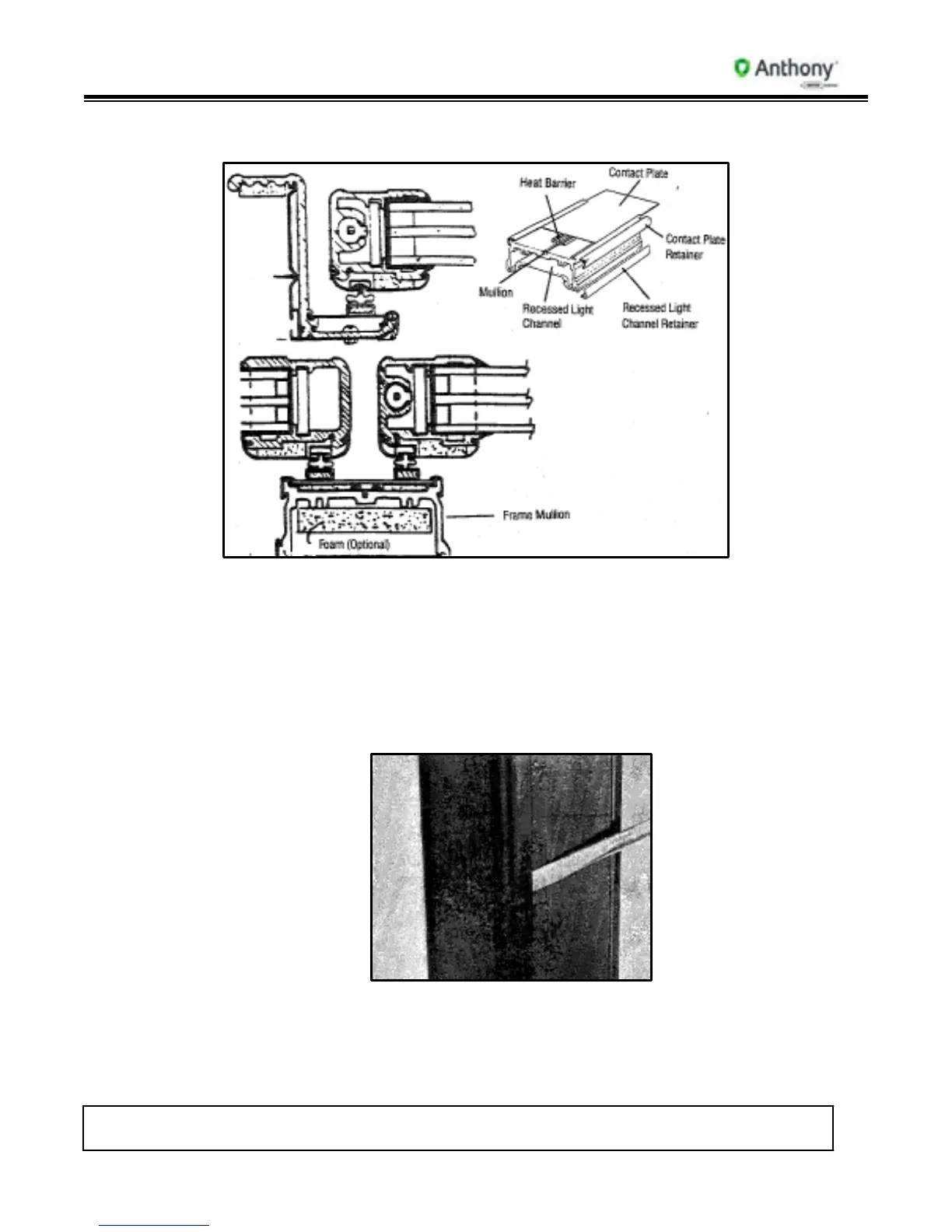

Note: In the illustration above, Model 100R is shown. Model 100FR is the same
except for the mullion and mullion contact plate. Model 101 is the same except
for the mullion cover as shown in Door Quick Disconnect and Reversing.
1. Remove door.
2. To remove contact plate and contact plate retainer, insert flat-head screwdriver under
side back edge of retainer plastic.
Pull up to unsnap retainer from mullion and perimeter of frame. Remove contact plate.
Frame heaters are now exposed.
