Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service &
Installation
8. Holding lens snugly against top of light fixture, install spring steel clip over lenses. Snap
clip into pre-punched holes on each side of mullion. Move to bottom of fixture and install
bottom clip.
IMPORTANT: Bulb insulators must be on each end of bulb before lenses are re-installed.
Foam end caps should be securely attached to top and bottom of lamp
sockets. (Foam end caps are cut to fit snugly, but if they have become
dislodged, or pulled out during changes, they must be replaced!)
9. Turn light power on.
FRAME END FIXTURES
1. Turn light power off before start of lamp replacement.

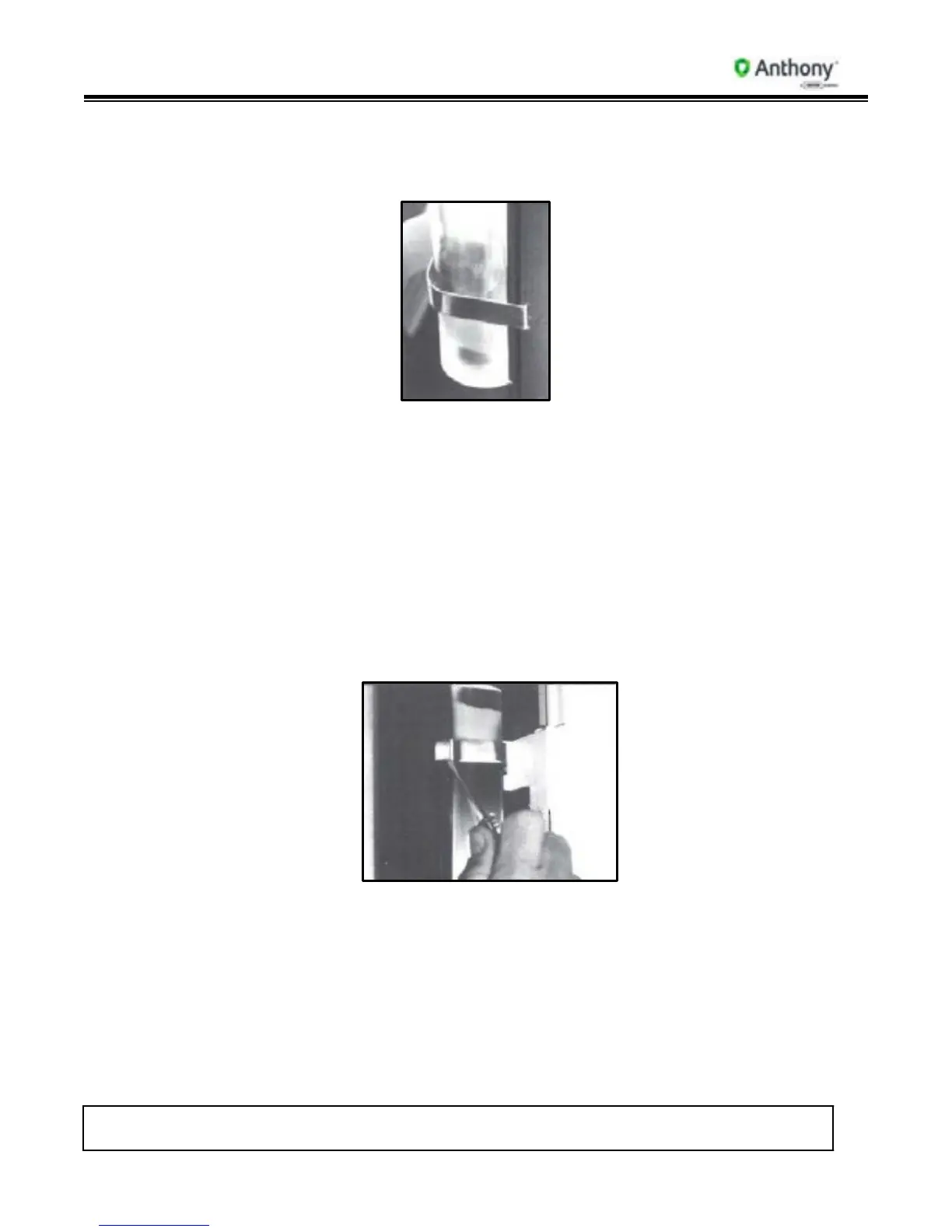

2. Remove top and bottom spring steel clips. Insert small flat-head screwdriver under
flat portion of spring steel clip to remove from side of fixture (as shown in the following
figure). Swing clips to the side until re-installation.
