ANthony 101 - Models 101 & 2100 Standard (before 7;94) Frame Net Opening Widths; 24 Door (Catalog Size) 23-3;16 Actual Door Width; 26 Door (Catalog Size) 26-3;8 Actual Door Width; 30 Door (Catalog Size) 29-7;8 Actual Door Width

Model 101/2100 Doors Service & Installation
TITLE:
99-13312-S001 Model 101/2100 Doors Service & Installation
REV.
B
Page 8 of 95

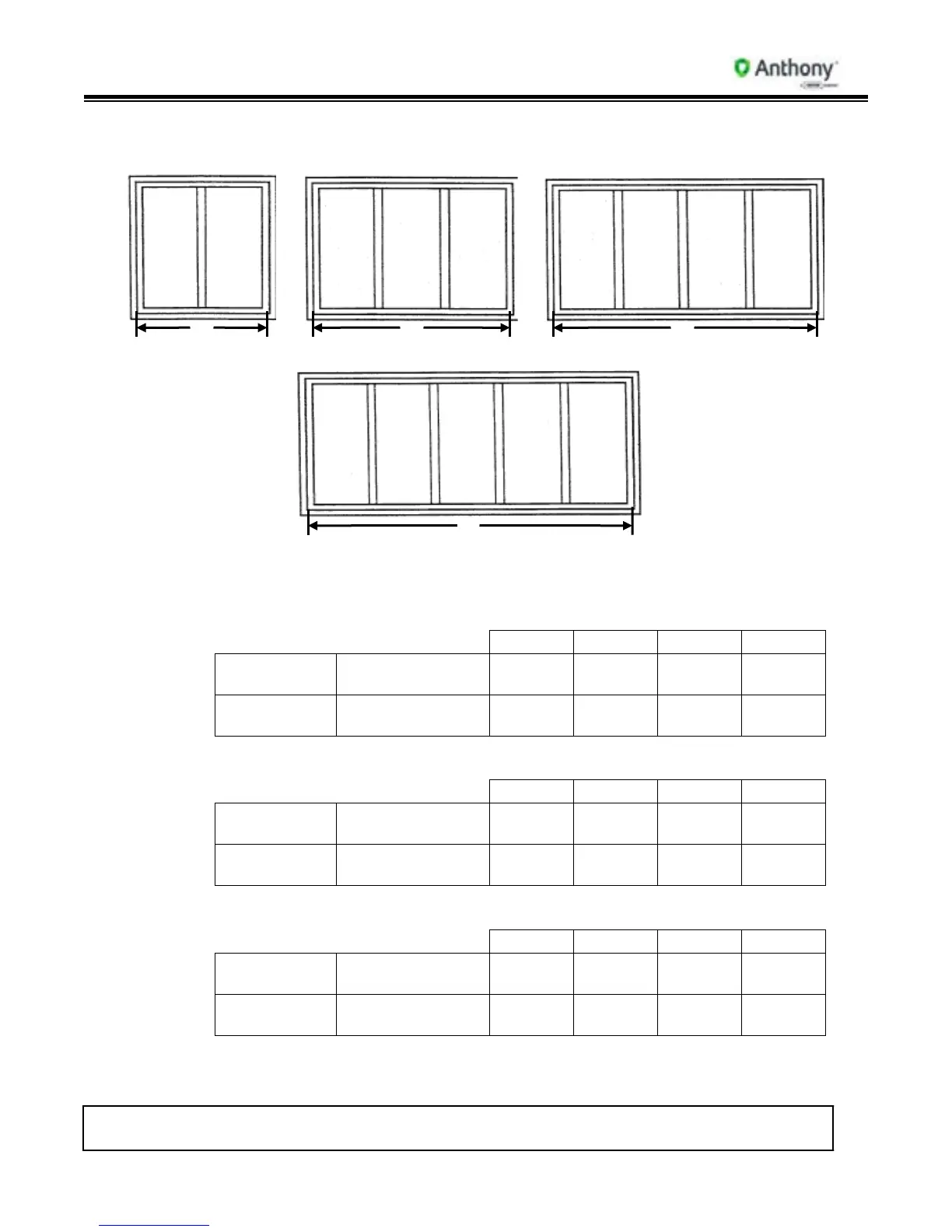

3. Models 101 & 2100 Standard (Before 7/94) Frame Net Opening Widths
A B C
TWO-DOOR FRAME THREE-DOOR FRAME FOUR-DOOR FRAME
3.1. Frame Width Data
D
FIVE-DOOR FRAME
3.1.1. 24” Door (Catalog Size) 23-3/16” Actual Door Width
A
B
C
D
ENDLESS
MULLION
FINISHED FRAME
NET OPENING
48-5/8” 72-3/8” 96-1/8” 119-7/8”
FULL
FLANGE
FINISHED FRAME
NET OPENING
48-7/8” 72-5/8” 96-3/8” 120-1/8”
3.1.2. 26” Door (Catalog Size) 26-3/8” Actual Door Width
A
B
C
D
ENDLESS
MULLION
FINISHED FRAME
NET OPENING
55-1/4” 82-3/16” 109-1/8” 136-1/16”
FULL
FLANGE
FINISHED FRAME
NET OPENING
55-1/2” 82-7/16” 109-3/8” 136-5/16”
3.1.3. 30” Door (Catalog Size) 29-7/8” Actual Door Width
A
B
C
D
ENDLESS
MULLION
FINISHED FRAME
NET OPENING
62” 92-7/16” 122-7/8” 153-5/16”
FULL
FLANGE
FINISHED FRAME
NET OPENING
62-1/4” 92-11/16” 123-1/8” 153-9/16”
