Model 101/2100 Doors Service & Installation

TITLE:

99-13312-S001 Model 101/2100 Doors Service &

Installation

REV.

Page 64 of 95

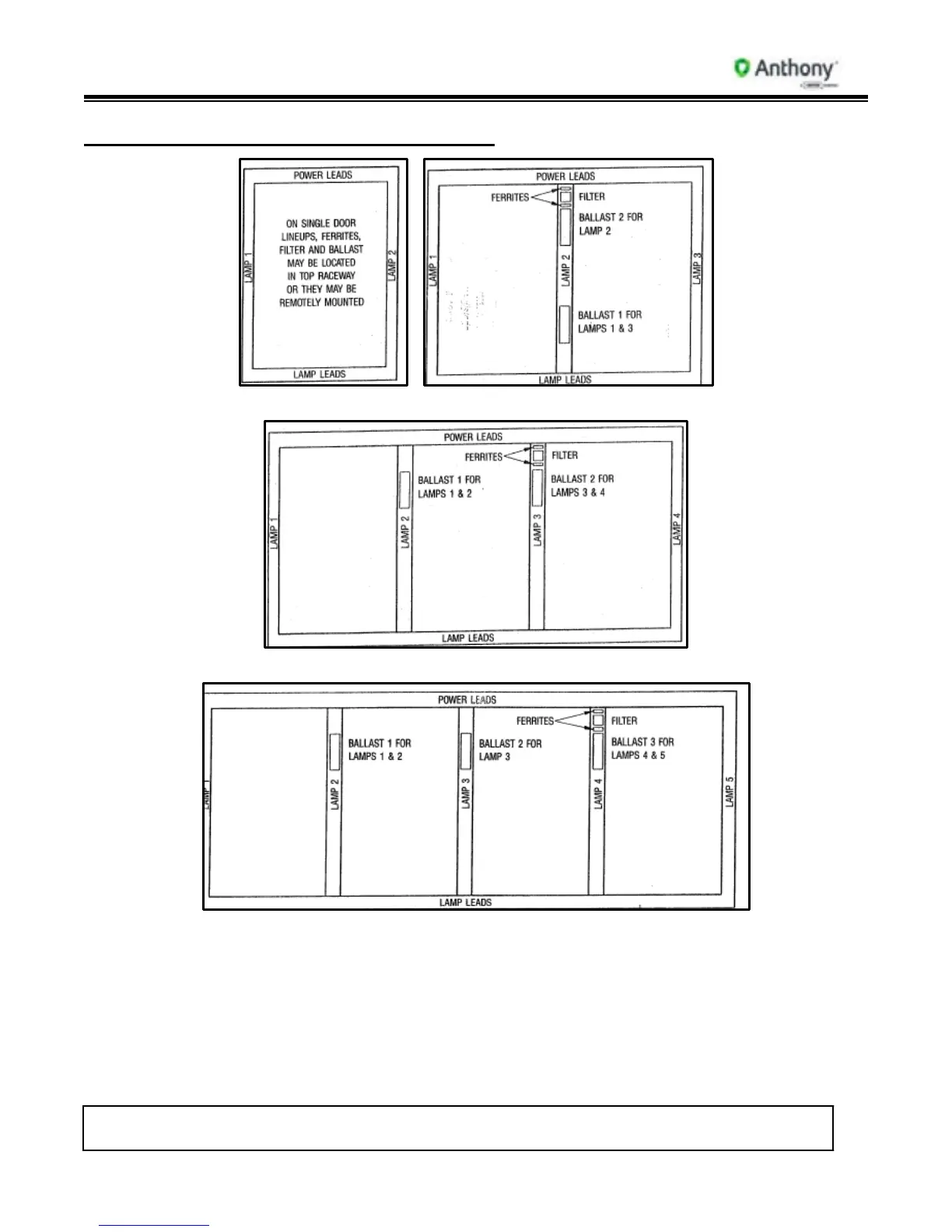

220V ELS Lighting System Component Layout

1-Door Section 2-Door Section

3-Door

Section

4-Door

Section
