26
Start Smart Eye - monitoring device (on traditional bait and spring trap boxes).
Should Smart Eye be mounted on traditional bait box or spring trap box screw holes and a hole
for the sensor, must be drilled with a cup drill on the box lid.

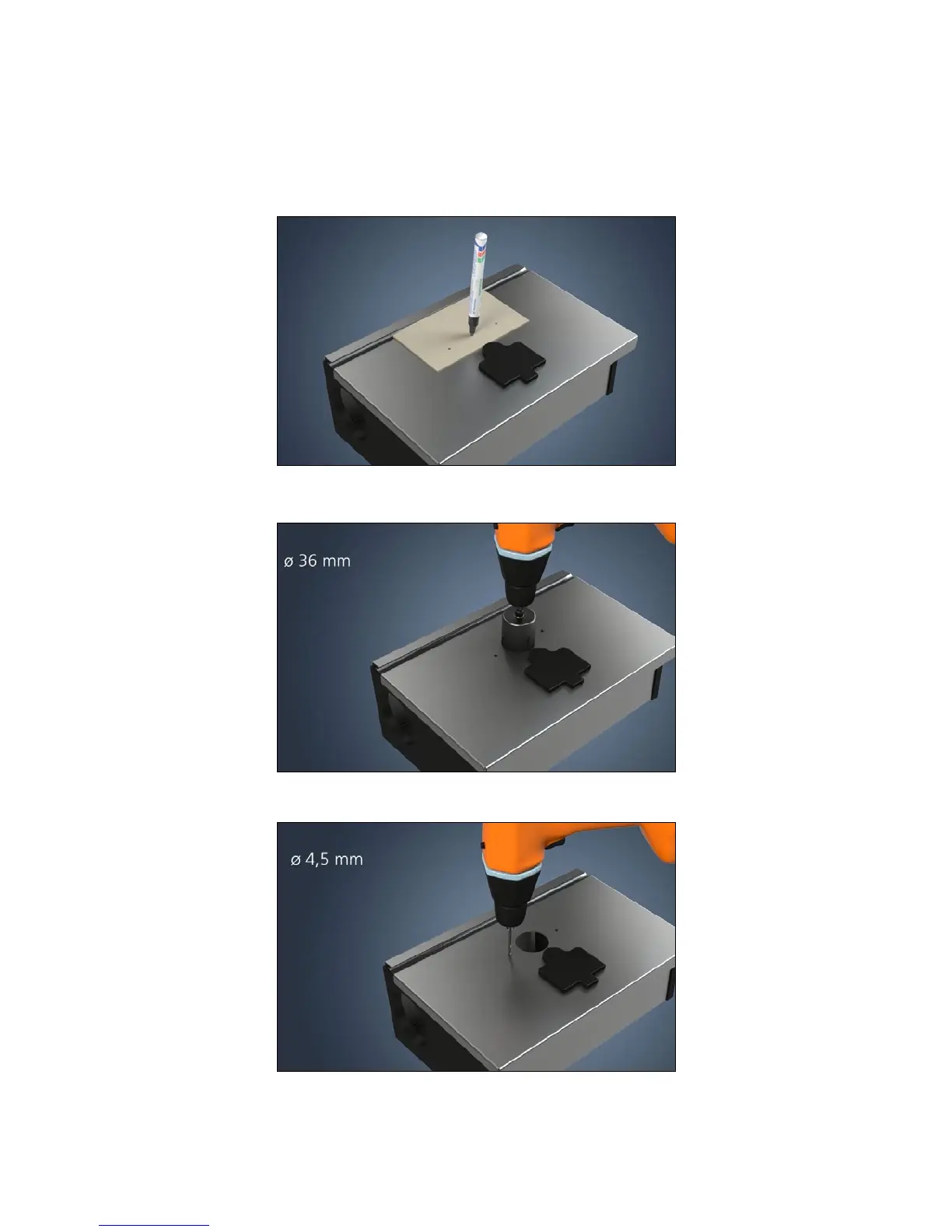

1. Use the enclosed drilling jig to mark the screw holes on box lid.
2. Drill a hole for pir with a cup drill (Ø 36 mm) in the box lid.
3. Drill holes for screws with drill (Ø 4.5 mm) in the box lid.
