Anybus Communicator - 5. Installation

5. Installaon
5.1. External Parts

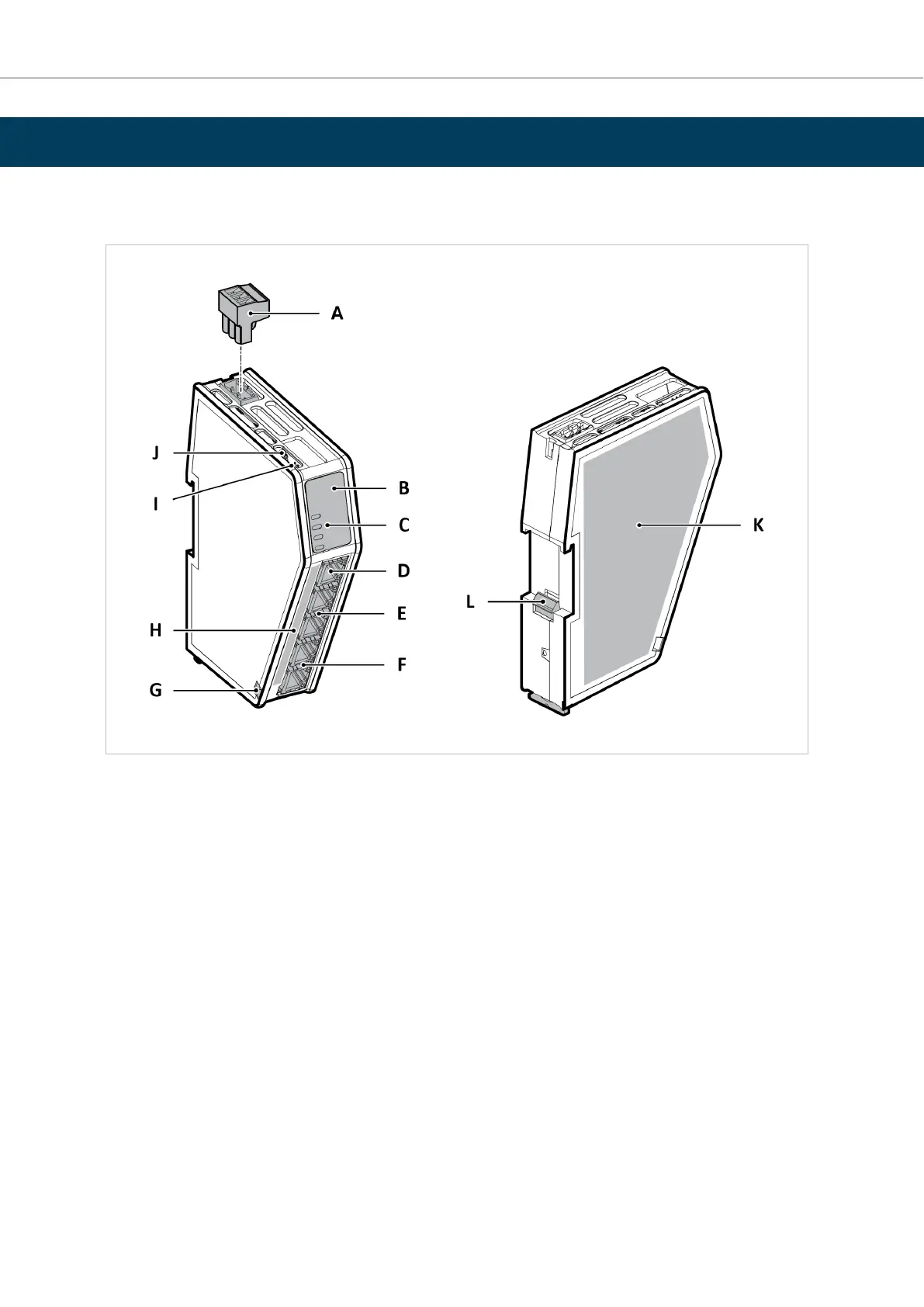

Figure 3. External parts
A. Power connector
B. Label with LED designaon
C. Status LEDs
D. Conguraon port
E. PROFINET port x 2
F. EtherNet/IP port x 2
G. Cable e mount
H. Laser engraved connectors designaon
I. Security switch
J. Factory reset buon
K. Laser engraved label with product informaon
L. DIN rail locking mechanism
Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter Installaon
Page 8 of 56 SCM-1202-195 Version 1.0
