5.5. Connect to Power
CAUTION
Ensure that the power supply is turned o before connecng it to the equipment.
IMPORTANT
Using the wrong type of power supply can damage the equipment. Ensure that the power supply is
connected properly and of the recommended type.

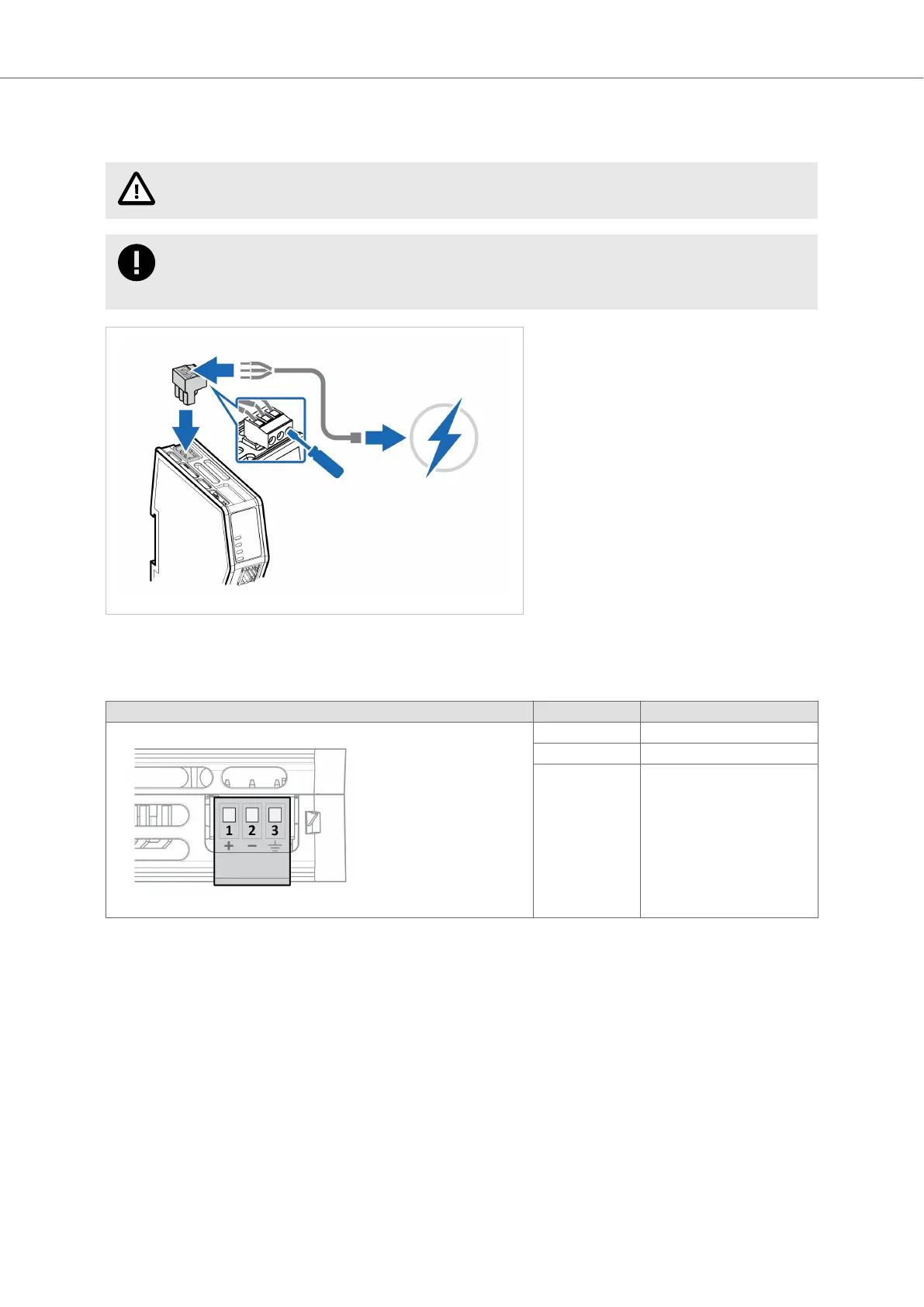

Figure 7. Connect to power
1. Insert the cable wires to the terminal block and ghten the wire clamp screws.
Power port Pin Descripon
1 12-30 VDC Power Connector
2 Ground (GND)
3 Funconal Earth (FE)
2. Connect the terminal block to the Communicator.
3. Connect the Communicator to a power supply.
4. Turn on the power supply.
To Do Next
Check LED status, refer to Communicator LED Indicators.
Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter Connect to Power
Page 12 of 56 SCM-1202-195 Version 1.0

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
