Anybus Communicator User Manual

7.2. Export Product EDS File
Opon for Ethernet/IP Adapter.
Opon if the PLC program requires a product le, EDS (Electronic Data Sheet) le to congure the EtherNet/IP
PLC to use the Communicator.

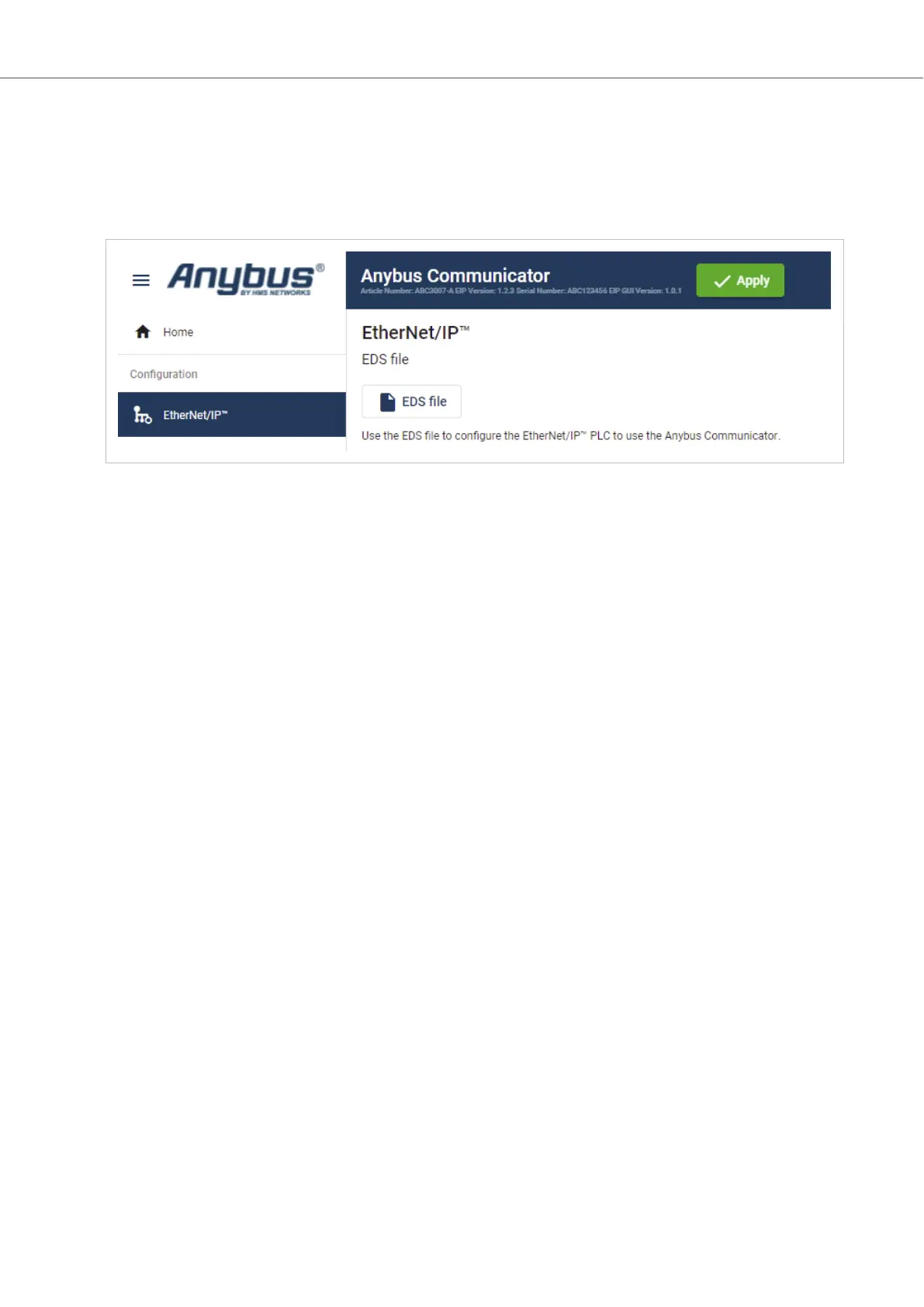

Figure 35. Export Product EDS File
You nd the EtherNet/IP™ EDS le on the Communicator built-in web interface EtherNet/IP™ page, Files &
rmware page and on the Support page.
To export the EDS le:
1. Click EDS le.
The EDS le is downloaded to your PC.
Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter Export Product EDS File
Page 38 of 56 SCM-1202-195 Version 1.0

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
