Anybus Communicator User Manual

9.3.4. Update Firmware
Before You Begin
Ensure that the Communicator is disconnected from the OT networks.
Procedure

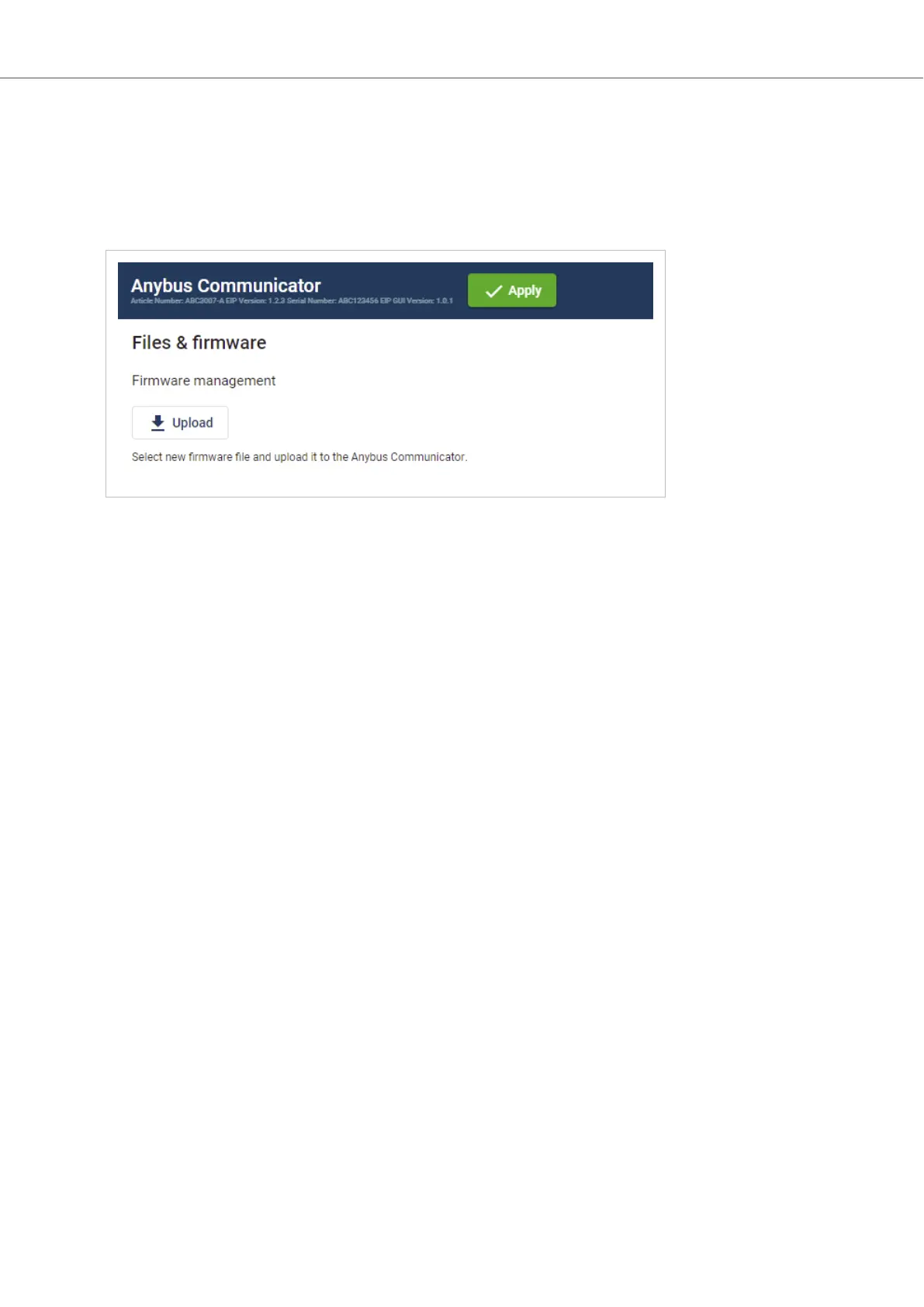

Figure 42. Files & rmware page
To update the rmware:
1. On the Files & rmware page, click Upload.
2. In the Upload Firmware window, click Select rmware (.hi).
3. In the Open dialog box, browse to and select the rmware le and click Open.
4. To start the rmware upgrade, click Update rmware.
The rmware le is validated and transferred.
Result
• If the rmware le pass the validaon: The rmware is upgraded and then the Communicator automacally
reboots, for the upgrade to take eect.
• If the rmware le is rejected: An error message appear.
Firmware Management Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter
SCM-1202-195 Version 1.0 Page 47 of 56

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
