Anybus Communicator User Manual

8. Verify Operaon
8.1. Communicator Status Monitor
On the Home page, you can get a quick overview of the network and the Communicator operang status.

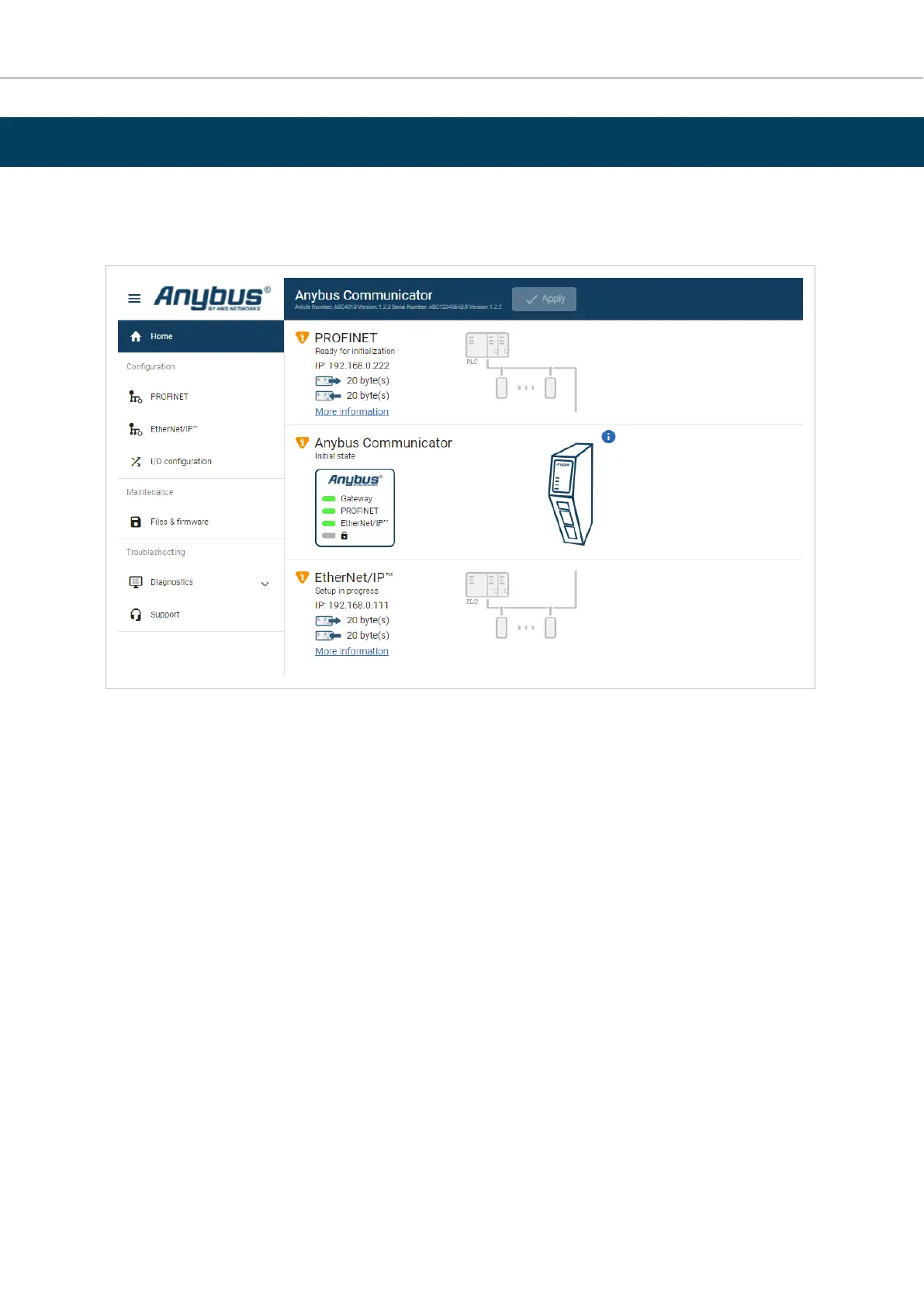

Figure 36. Home page
Gateway status
Overview the Communicator LED indicaons remotely.
Refer to Communicator LED Indicators.
Network Status and Sengs
Overview communicaon status and the current networks sengs.
Verify Operaon Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter
SCM-1202-195 Version 1.0 Page 39 of 56

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
