5.7. Lock the Cables

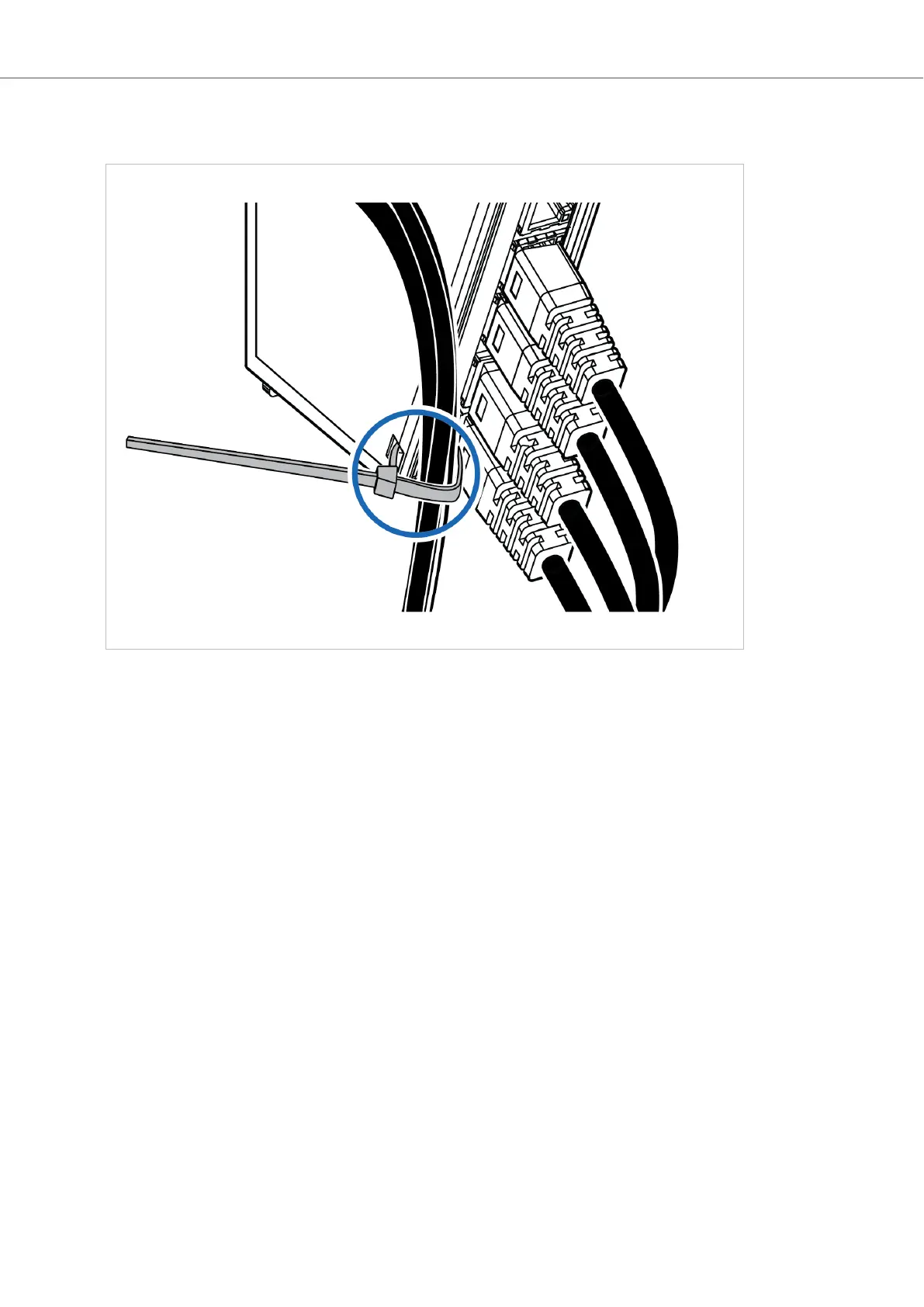

Figure 10. Lock the cables
To strain relieve the cables, place a cable e in the holder and lock the cables.
Lock the Cables Anybus
®
Communicator
- PROFINET IO-Device to EtherNet/IP Adapter
SCM-1202-195 Version 1.0 Page 15 of 56
