Anybus Communicator User Manual

Security Switch Status LED

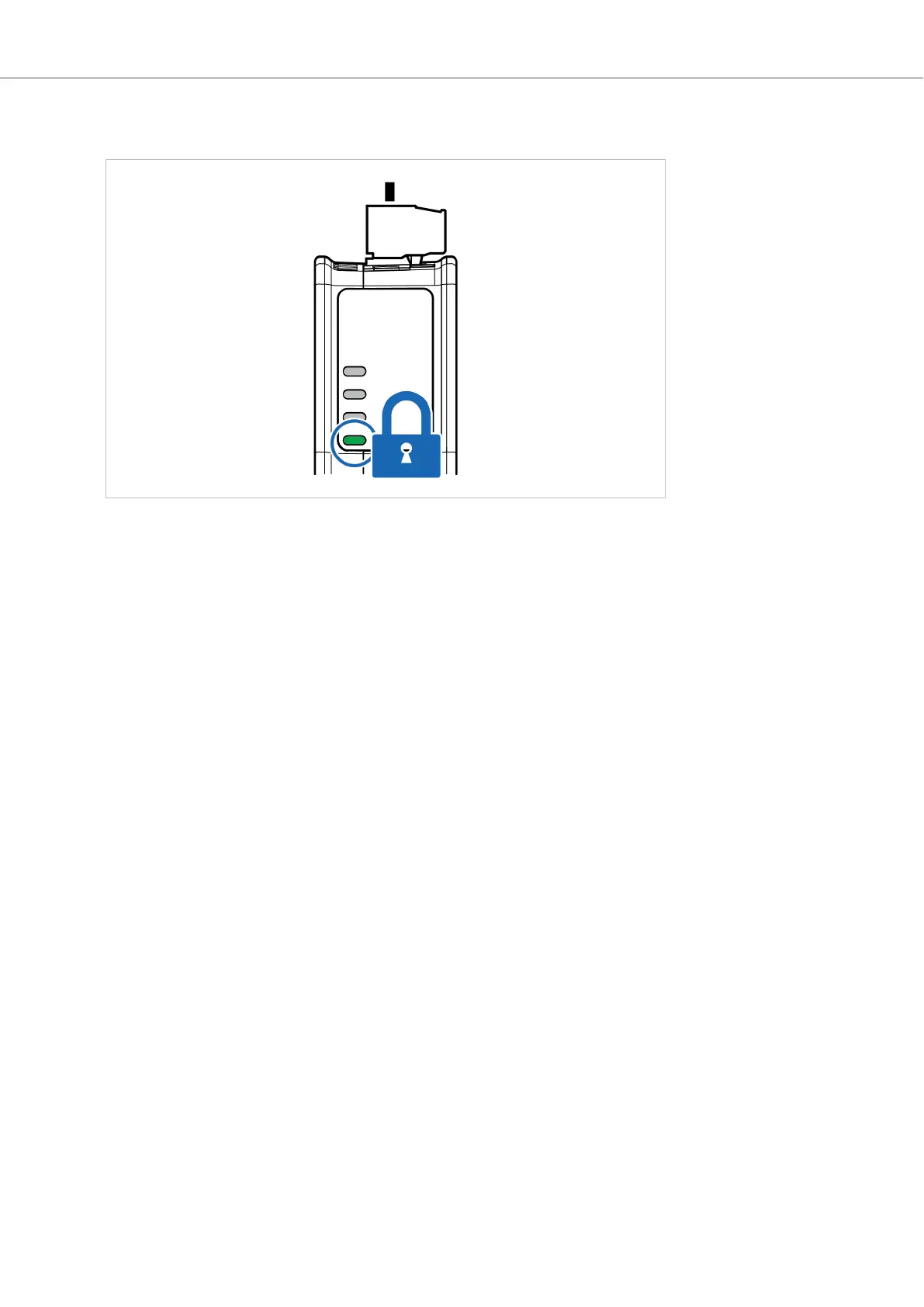

Figure 9. Security switch locked status LED
When the security switch is in its:
• locked posion, the security switch status LED turn solid green.
• unlocked posion, the security switch status LED is turned o.
Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter Security Switch
Page 14 of 56 SCM-1202-195 Version 1.0

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
