Anybus Communicator User Manual

10.3. Firmware Upgrade Error Management
If the rmware update process is interrupted or if the power is lost during the update process, the
Communicator goes into fallback mode.
The last working rmware is sll available on the ash, but it is not acve.
Procedure
To complete the interrupted rmware update:

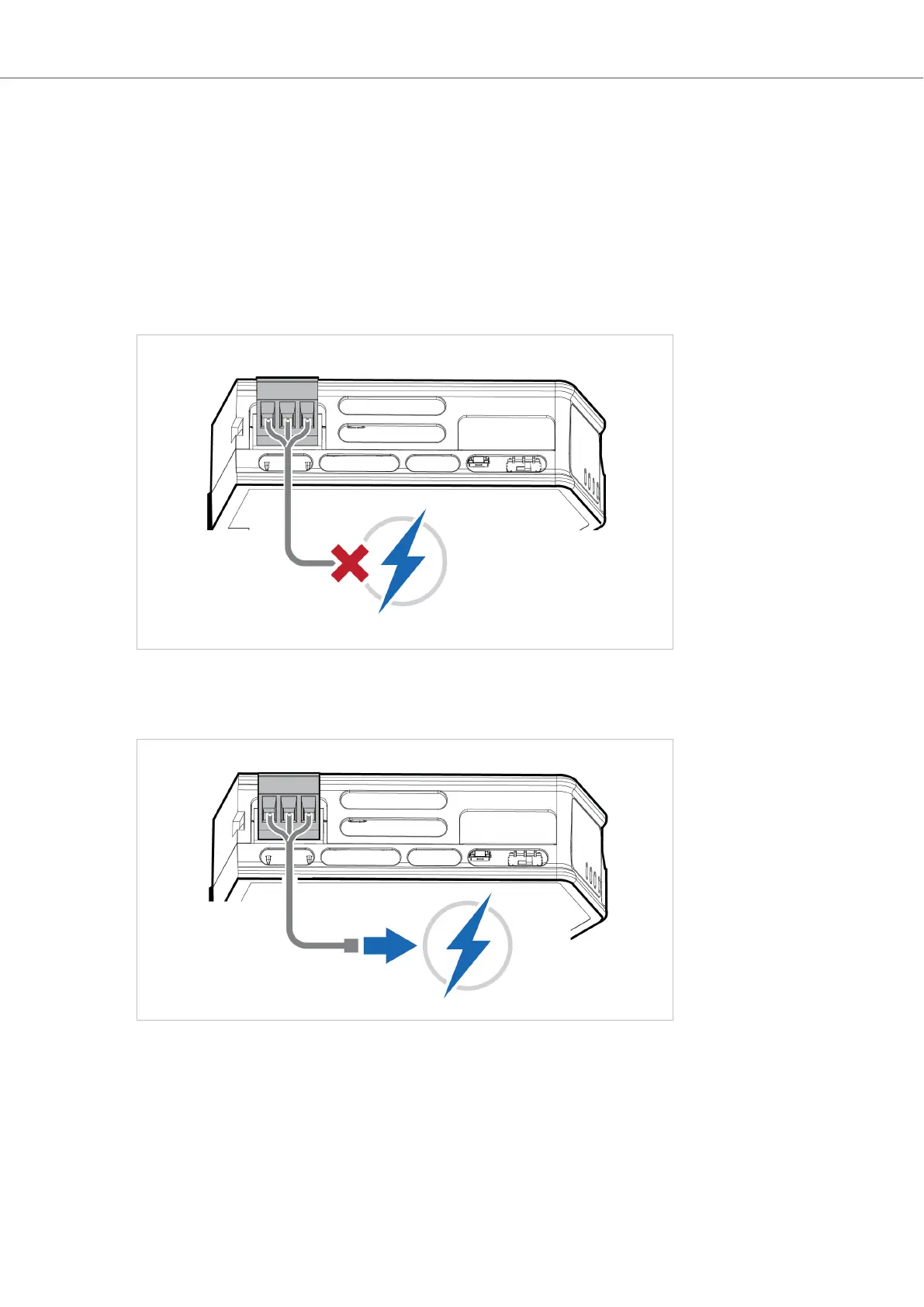

1. Disconnect the Communicator from power.
Figure 49. Disconnect power
2. Reconnect the Communicator to power.
Figure 50. Reconnect power
Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter Firmware Upgrade Error Management
Page 52 of 56 SCM-1202-195 Version 1.0

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
