Anybus Communicator User Manual

3. While holding the reset buon, reconnect the Communicator to power.

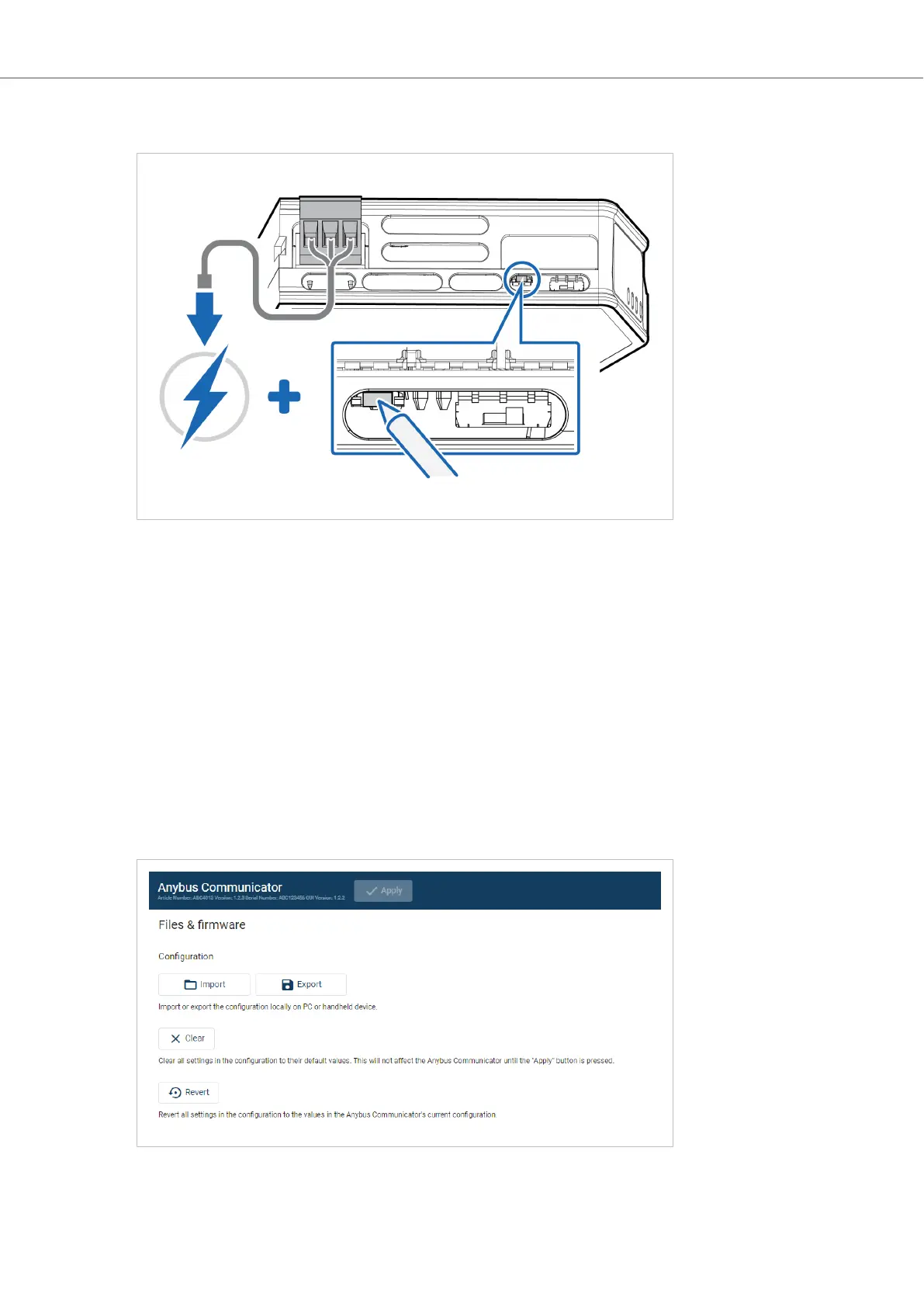

Figure 47. Hold Reset buon and reconnect power
4. Release the reset buon.
The Communicator enters excepon state.
5. Reboot the Communicator.
Result
When the Communicator has successfully rebooted, the Communicator conguraon is reset to the factory
default conguraon or the current conguraon aer rmware upgrade.
To Do Next
To ensure that the Communicator built-in web-interface is synchronized.
1. Open the the Communicator built-in web interface.
2. Navigate to the Files & rmware page and click Revert.
Figure 48. Files & rmware, Revert
Reset to Factory Sengs Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter
SCM-1202-195 Version 1.0 Page 51 of 56

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
