10. Troubleshoong
10.1. Diagnoscs
10.1.1. I/O Data
On the Diagnoscs, I/O data page you can monitor how the data ow between the PROFINET side and the
EtherNet/IP side, including any congured endian conversions.

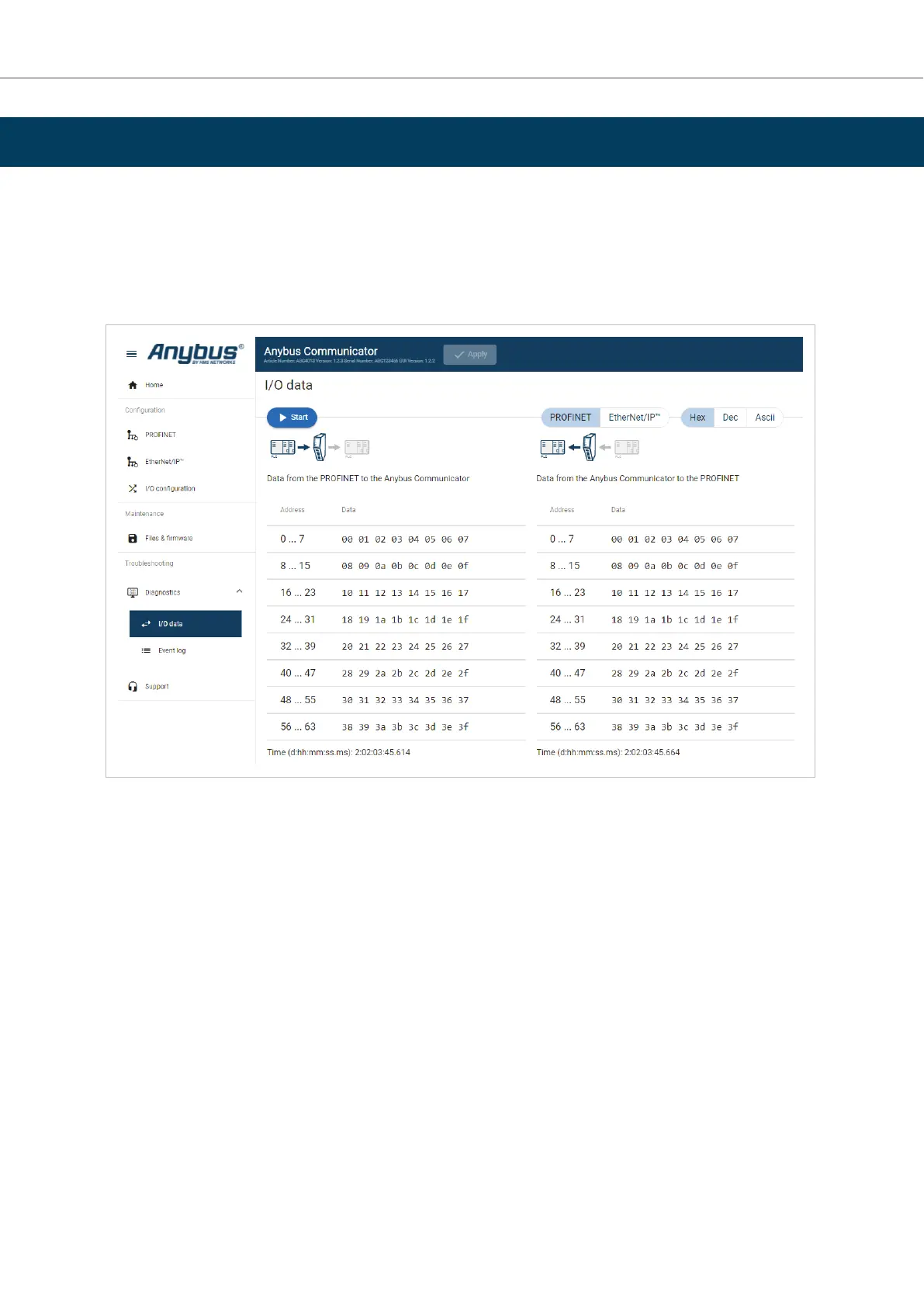

Figure 43. I/O data
The table can contain at most 10000 messages. When the limit is reached, the oldest messages are discarded
when new messages are added.
Switch between the OT networks
To switch between the networks, select PROFINET or EtherNet/IP.
Select how data is displayed
To choose if the data should be displayed in Hexadecimal, Decimal or ASCII, click Hex, Dec or Ascii.
Start and Stop Data ow
• To start the data ow, click Start.
• To end the data ow, click Stop.
Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter Troubleshoong
Page 48 of 56 SCM-1202-195 Version 1.0

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
