Anybus Communicator User Manual

5.4. Connect to EtherNet/IP Network

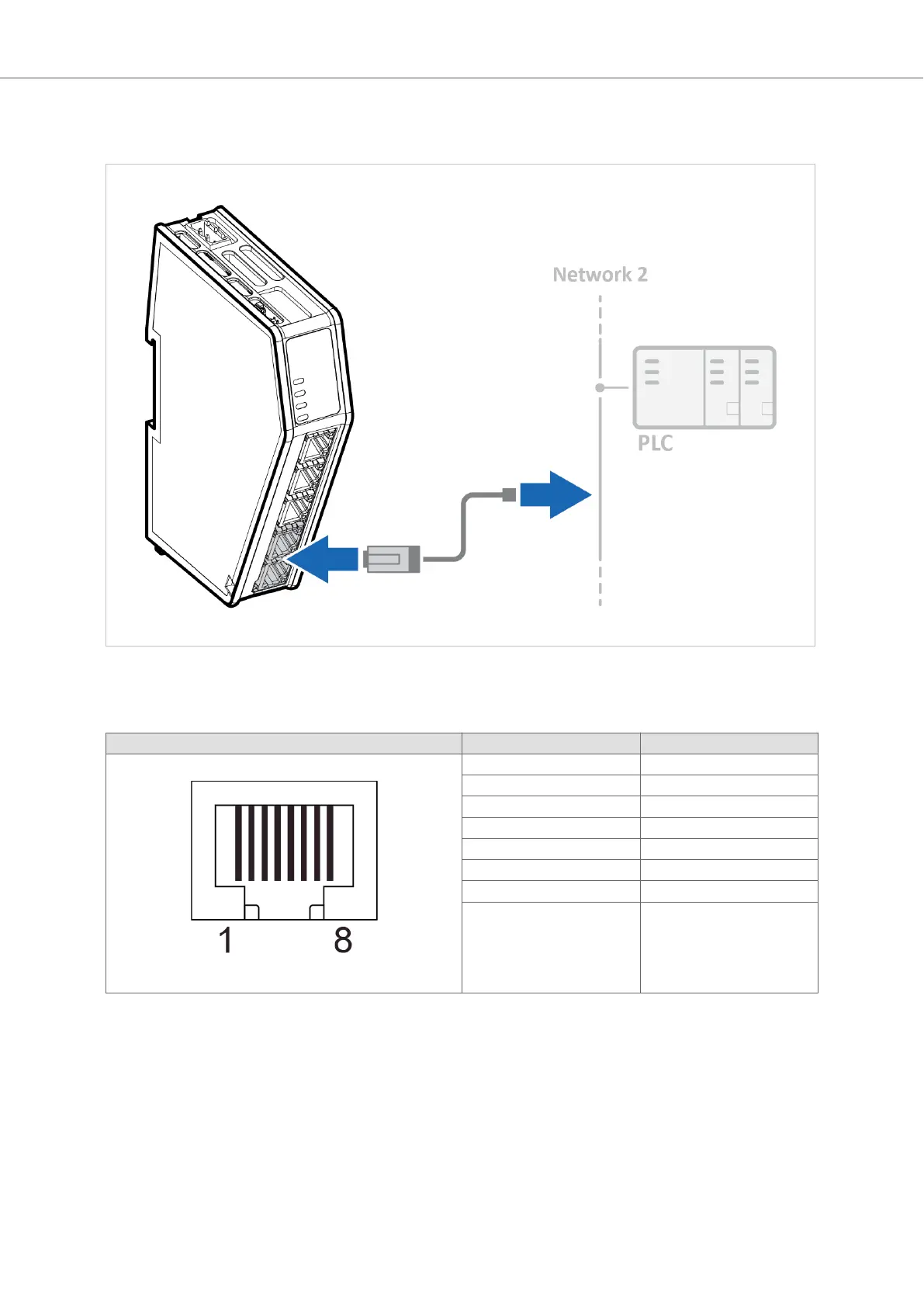

Figure 6. Connect to EtherNet/IP network
1. Connect the Communicator, lower connector, to your EtherNet/IP network.
EtherNet/IP Connector Pin Descripon
1 TD+
2 TD-
3 RD+
4 Not used
5 Not used
6 RD-
7 Not used
8 Not used
To Do Next
Connect the Communicator to the PROFINET network and to power.
Check LED status, refer to Communicator LED Indicators.
Connect to EtherNet/IP Network Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter
SCM-1202-195 Version 1.0 Page 11 of 56

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
