3. Leave the Communicator for 10 minutes.
The Gateway status led indicator ashes red and green unl the rmware upgrade is completed.

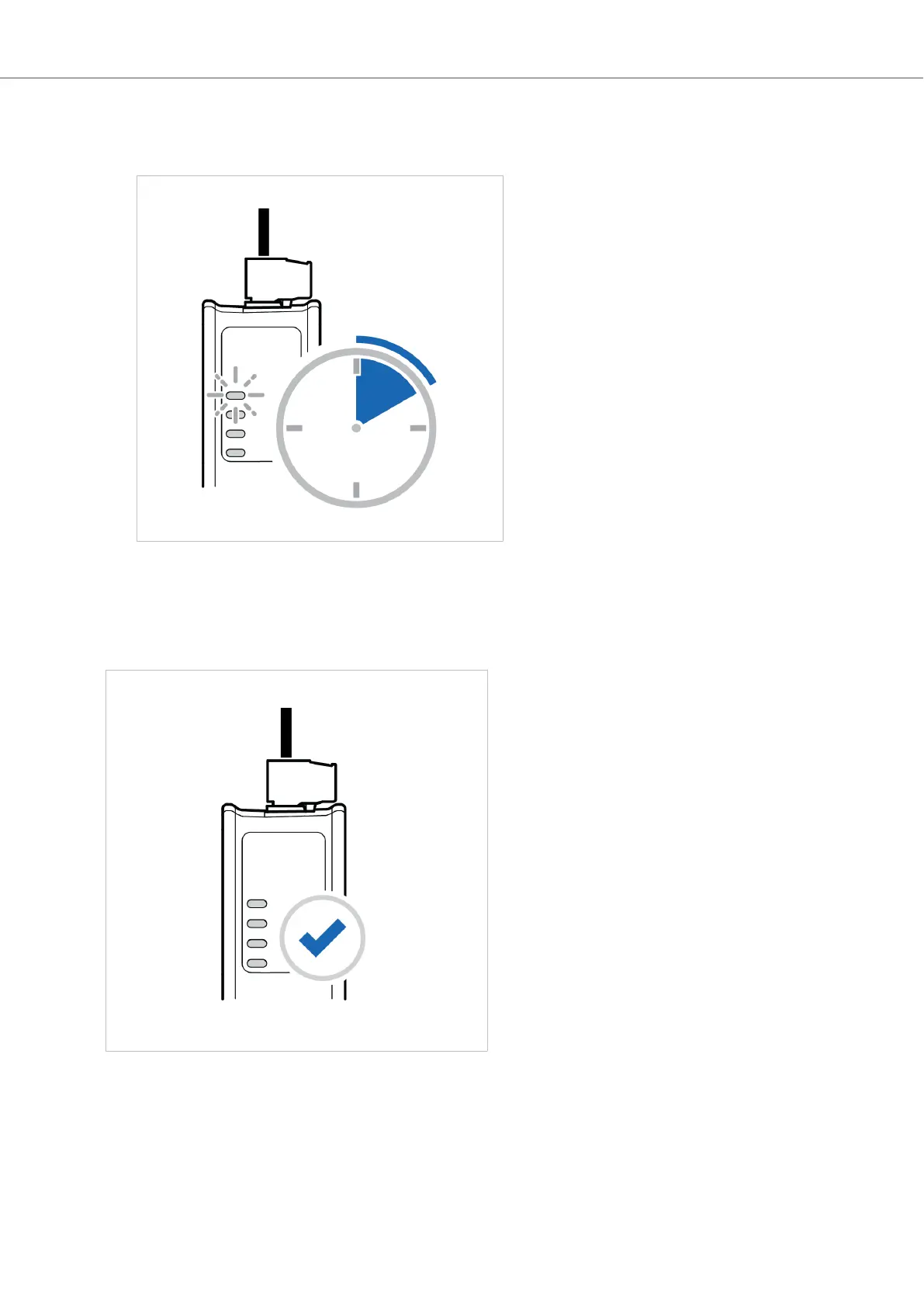

Figure 51. Firmware upgrade LED indicaon
Result
The Communicator recover and return to normal operaon.
Figure 52. Recover and return to normal operaon
To Do Next
To check LED status, refer to Communicator LED Indicators.
