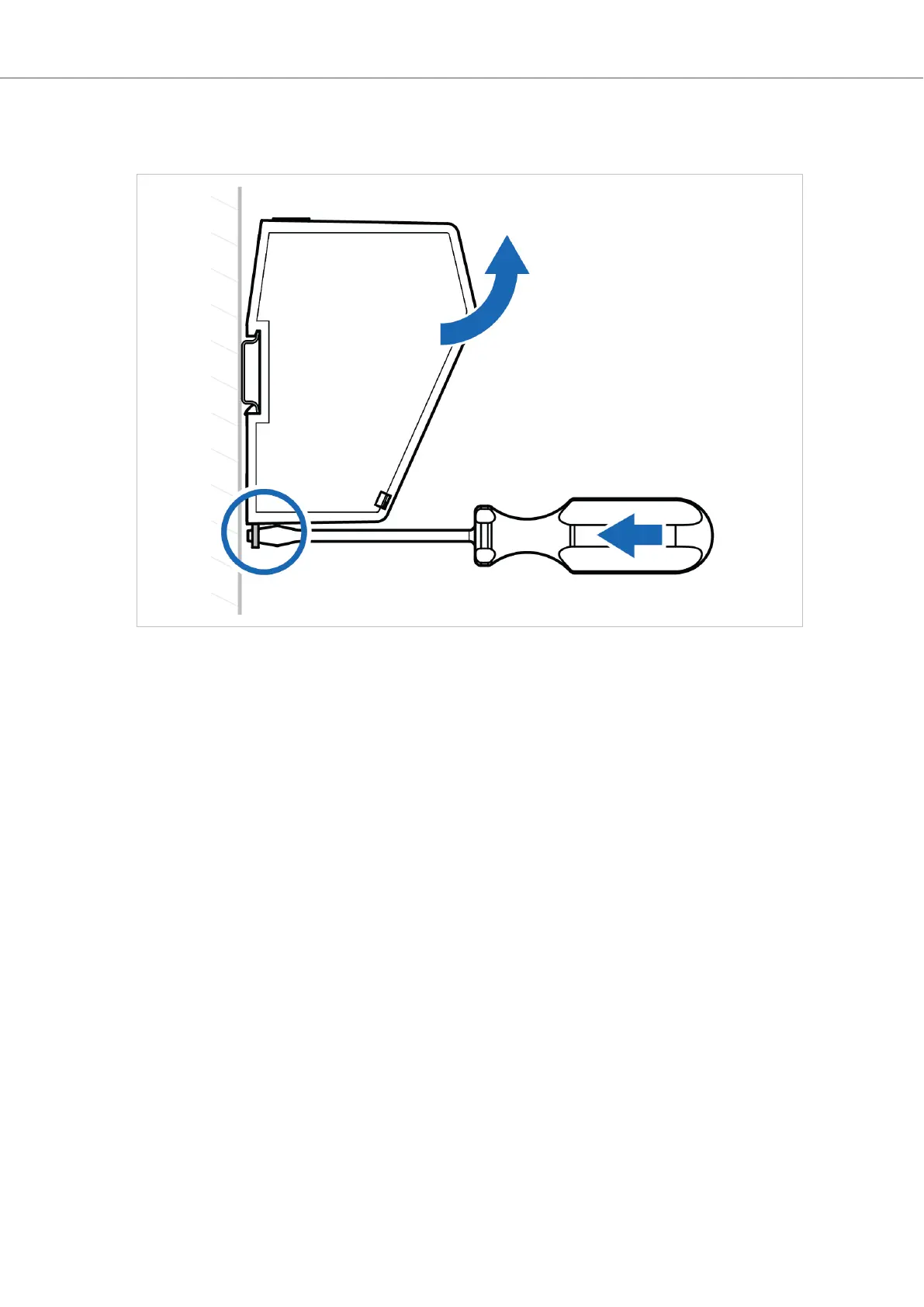

3. Hold the screwdriver in the DIN rail locking mechanism while you unhook the Communicator from the DIN
rail.
Figure 12. Unhook the Communicator
DIN Rail Demount Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter
SCM-1202-195 Version 1.0 Page 17 of 56
