To Congure IP Sengs Manually

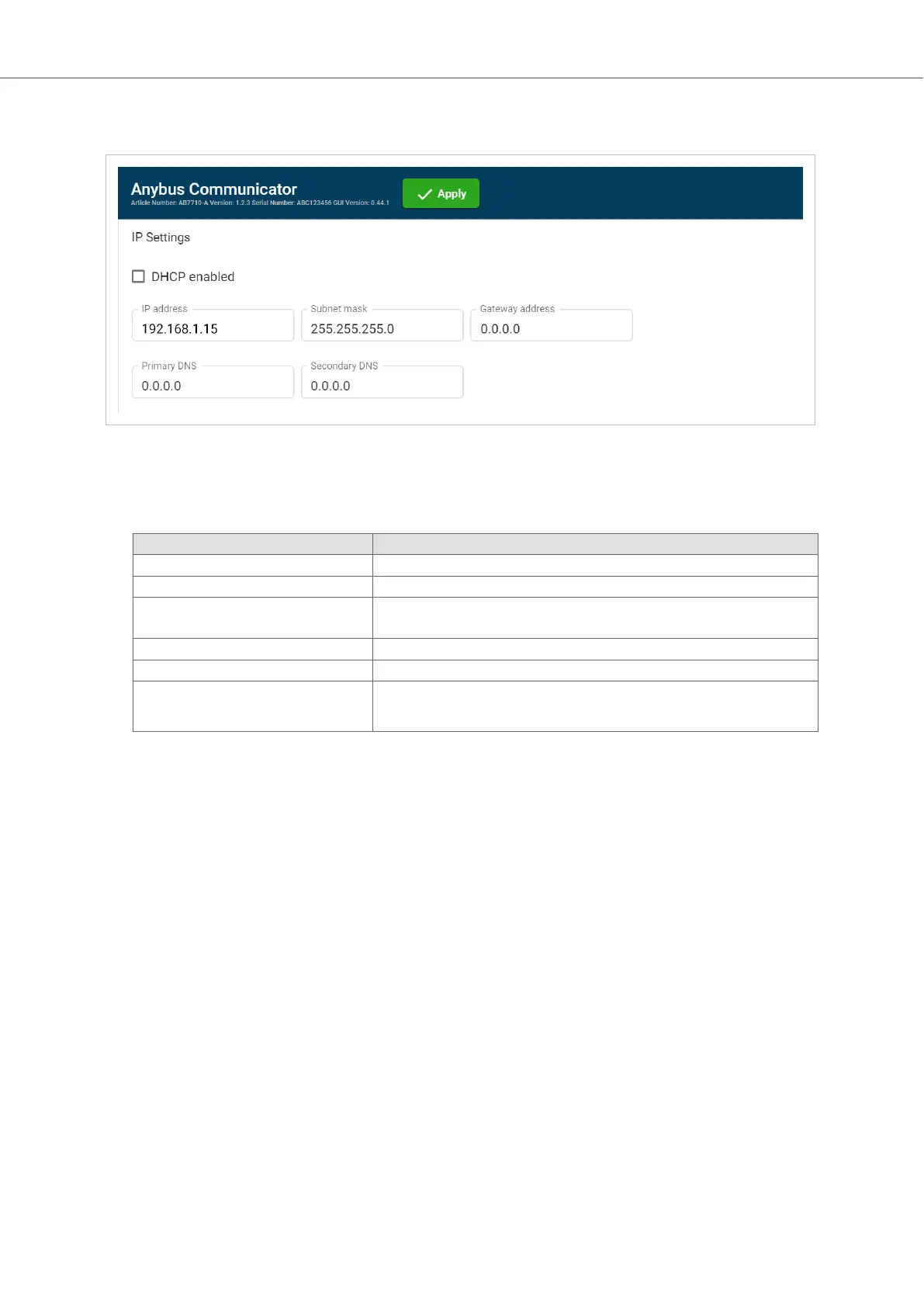

Figure 19. EtherNet/IP IP Sengs, DCHP disabled
1. Deselect the DHCP enabled checkbox.
2. Congure the IP sengs.
Seng Descripon
IP address The EtherNet/IP network IP address in IPv4 dot-decimal notaon
Subnet mask The EtherNet/IP network Subnet mask in IPv4 dot-decimal notaon.
Gateway address The EtherNet/IP network Gateway address in IPv4 dot-decimal notaon.
If there is no gateway available, set the Gateway address to: 0.0.0.0
Primary DNS The EtherNet/IP network Primary DNS in IPv4 dot-decimal notaon.
Secondary DNS The EtherNet/IP network Secondary DNS in IPv4 dot-decimal notaon.
Hostname You can label the Communicator. Maximum length is 64 characters. No symbol characters,
punctuaon characters, or whitespace are permied. Write the Hostname as one single
word.
If you change a value and click Refresh, the value is reset to the last applied value.
EtherNet/IP Sengs Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter
SCM-1202-195 Version 1.0 Page 27 of 56

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
