Anybus Communicator User Manual

Build Detailed Endian Swap
If you have mulple data types, you can use the Detailed endian swap to change dierent parts of the data area
in dierent ways.

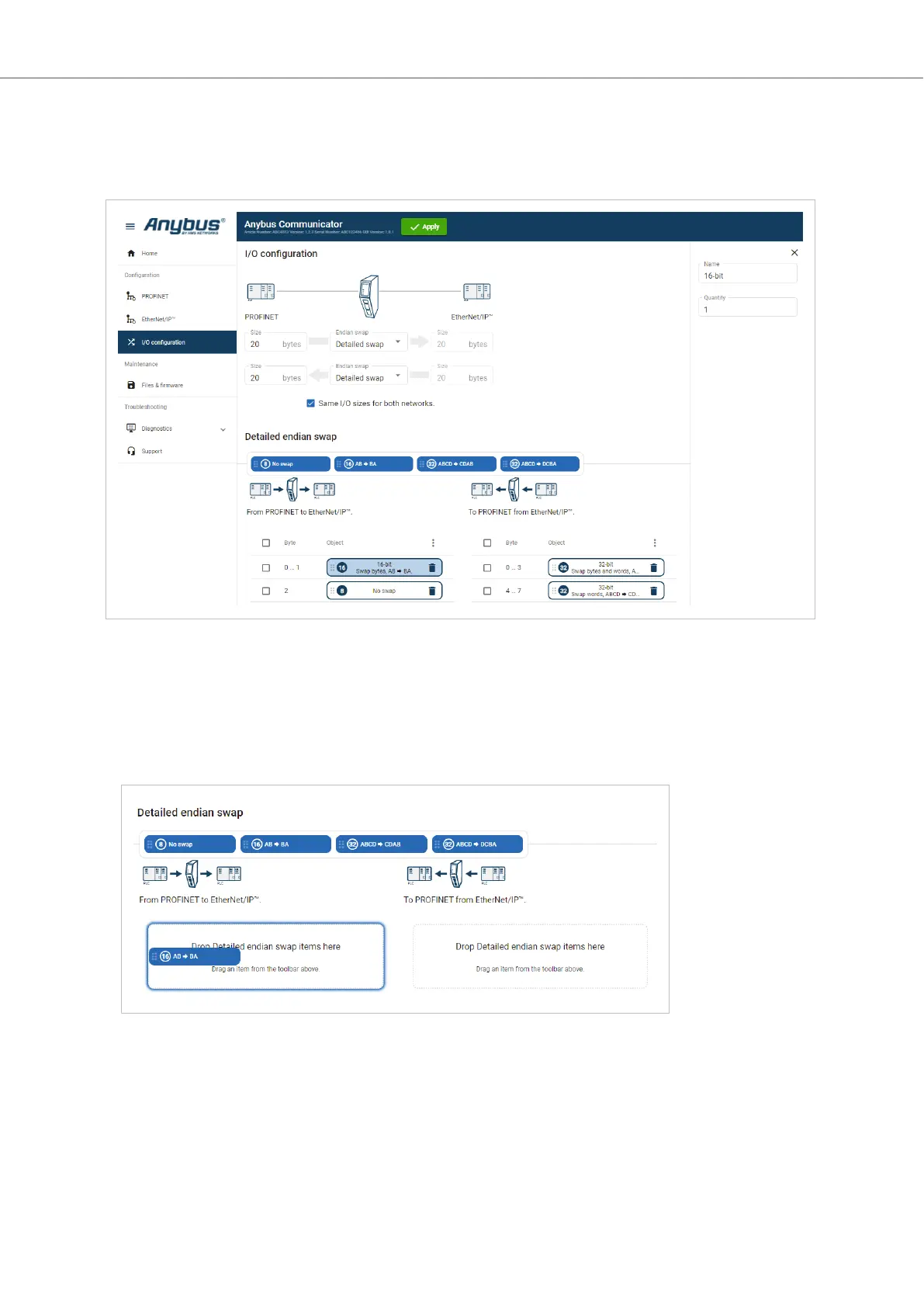

Figure 24. Detailed endian swap example
1. In the Endian swap drop-down menu for the desired network(s), select Detailed swap.
2. Build the detailed endian swap.
• To add an endian swap object: Drag and drop the desired endian swap object from the toolbar into the drag
and drop elds.
Figure 25. Add endian swap object(s)
I/O Conguraon Anybus
®
Communicator
™
- PROFINET IO-Device to EtherNet/IP Adapter
SCM-1202-195 Version 1.0 Page 31 of 56

Anybus Communicator Specifications

General

Protocols Supported	PROFINET, EtherNet/IP, Modbus TCP
Serial Interfaces	RS-232, RS-485
Ethernet Protocols	Modbus TCP, EtherNet/IP, PROFINET
CAN Protocols	CANopen
Operating Temperature	-25°C to +70°C
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% non-condensing
Power Supply	24V DC
Enclosure	Plastic
Protection Class	IP20
