Legacy AXS API
16

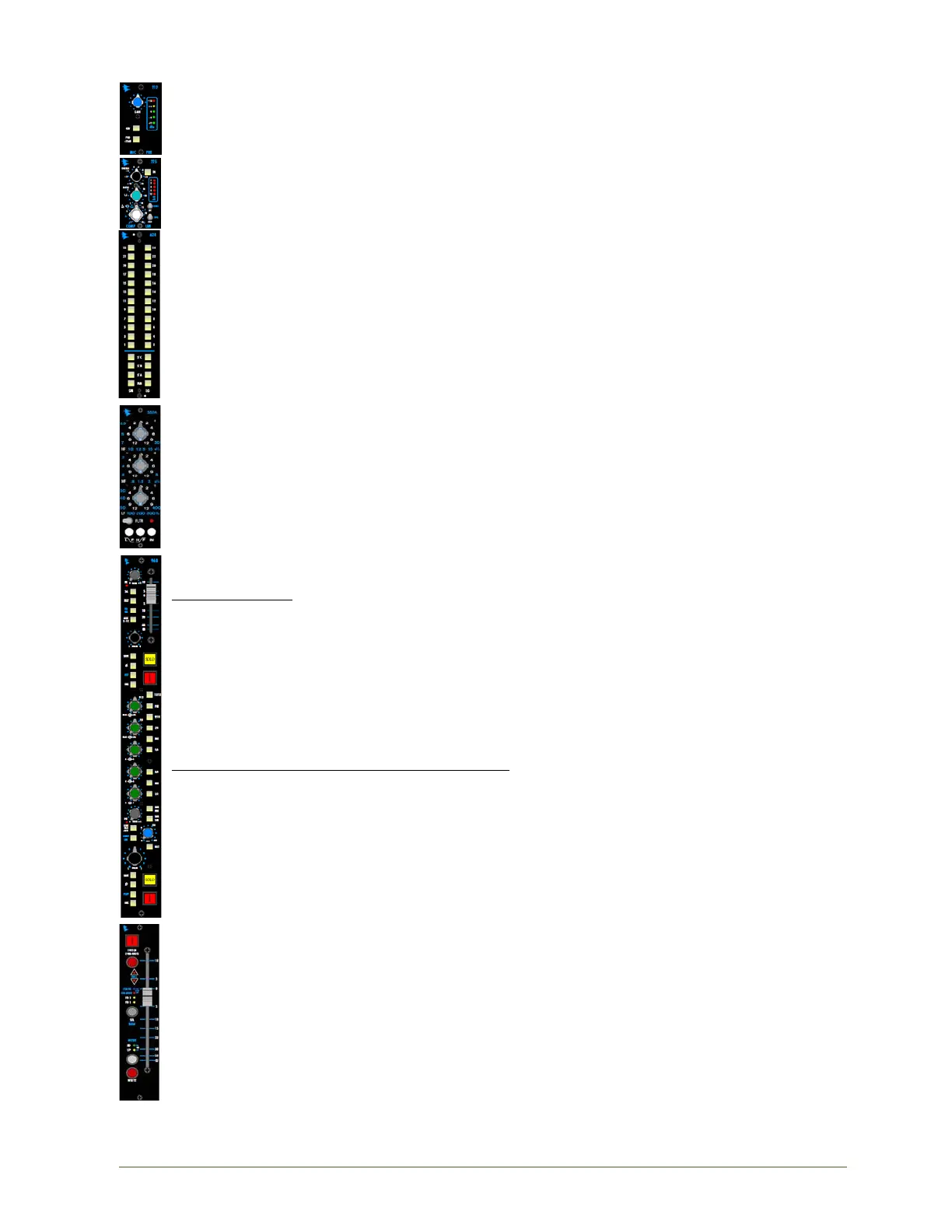

Channel Strip Overview
Upper 200 Slot
• 212 Microphone Preamplifier (standard configuration)
• Optional 205 Direct Input Module
Lower 200 Slot - May be fitted with one of three processor options:
• 215 Sweep Filter
• 225 Compressor/Limiter (standard configuration)
• 235 Noise Gate/Expander
624 Bus Assignment Module
• Routes Small Fader or Large Fader to Multitrack Buses 1-24
• Routes Small Fader and Large Fader to stereo Program Buses (STA, STB, STC)
• PAN switch to engaged the pan-pot for both faders
o Left/Right panning to stereo Program Buses
o Odd/Even panning to Multitrack Buses
500 Series EQ Slot
Receives lower 200 slot output (COMP) when engaged (standard configuration)
• 500 series equalizers:
o 550A 3-Band EQ
o 550b 4-Band EQ
o 560 10-Band Graphic EQ
o 565 Filter Bank
• Any VPR Alliance approved 500 Series module (except preamps)
968 Input Module
Channel Controls
• Input Selection: Input FLIP and ALT Line In to Small Fader
• -6dB Line In Pad In/Out
• Signal Processing Routing: COMP LRG and EQ SM
• Output Routing:
o Direct Output Routing: DIR SM and DIR PRE
o Small Fader to Multitrack Buses: 24
• Auxiliary Sends 1-12: Level, Pan, ON/off
o Pre-fader Routing
o Aux Send 5-12 from Small Fader
Large and Small Fader Controls (on both paths)
• Input TRIM
• Ø: Phase Reverse: Polarity inverter
• FILT: High-pass Filter In/Out: Sweep on Large Fader, fixed on Small Fader
• INS: Insert Return In/Out
• Pan-pot
• 45mm Small Fader
• SOLO
• Solo and channel routing SAFE mode
• MUTE
948 Large Fader
• 100mm long-throw automated resistive Large Fader
