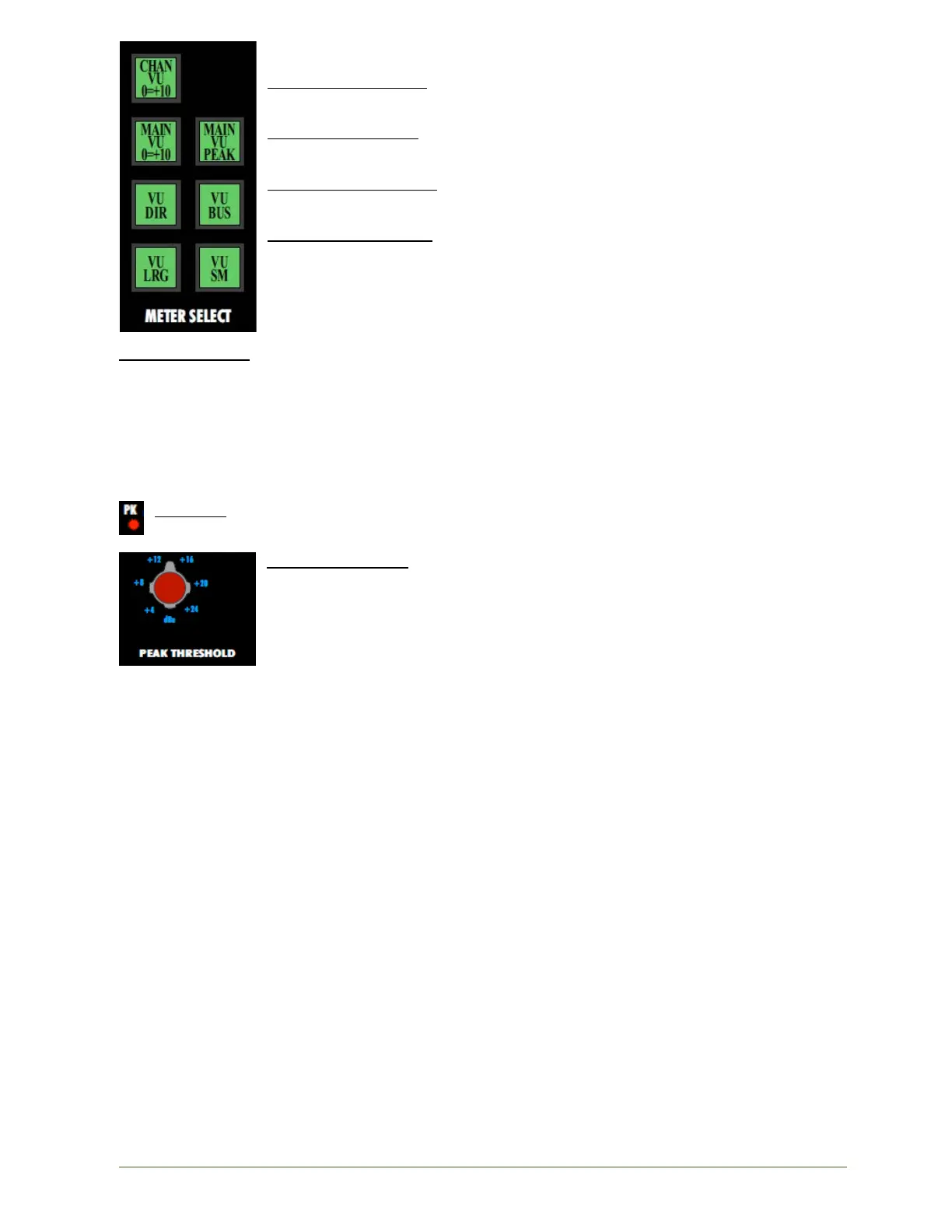

The METER SELECT controls for the channel VU Meters function as follows:
VU LRG (Large Fader): Routes the Large Fader path input to the VU meters
• Illuminates when engaged
VU SM (Small Fader): Routes the Small Fader path input to the VU meters
• Illuminates when engaged
VU DIR (Direct Output): Routes the Direct Output to the VU meters
• Illuminates when engaged
VU BUS (Bus Outputs): Routes the output of the Multitrack Buses 1-24 and the
Program Bus STA, STB, STC, and GM to the VU meters
• Multitrack Buses 1-24 on channel VU meters 1-24
• STA, STB, STC, and GM on channel VU meters 25-32
• Illuminates when engaged
CHAN VU 0=+10: Inserts a -10dB pad before the channel VU Meter input
• Use to meter high level signals
• Illuminates when engaged
Large Fader and Small Fader Peak Indicators
Each fader path is equipped with a LED Peak Indictor. The peak reference level is set on a global basis
by the PEAK THRESHOLD selector in the Master Section.
PK (Peak): LED peak indicator for Small and Large Fader paths
• A red LED illuminates when the selected peak threshold is reached in the audio path
PEAK THRESHOLD: Sets the peak reference level for the channel Peak Indicators
console-wide
+4dBu to +24dBu range
Located in the Master Section
