Legacy AXS API
Auxiliary Buses and Masters
The Legacy AXS console provides a powerful Auxiliary Send system with a variety of options for
headphone cue sends, effects sends, and other applications.
There are twelve (12) Auxiliary Buses and Masters. While all the Aux Buses are technically mono, like
the channel Aux Sends, the Auxiliary Masters are organized as follows:
Six mono Aux Masters: 1-6
Three stereo Aux Masters: 7/8, 9/10 and 11/12
Mono Aux Sends 1-6 are primarily used as effects sends during recording and mixing.
Stereo Aux Sends 7/8, 9/10, and 11/12 are typically used as headphone cue sends during recording,
and stereo effects sends during mixing.

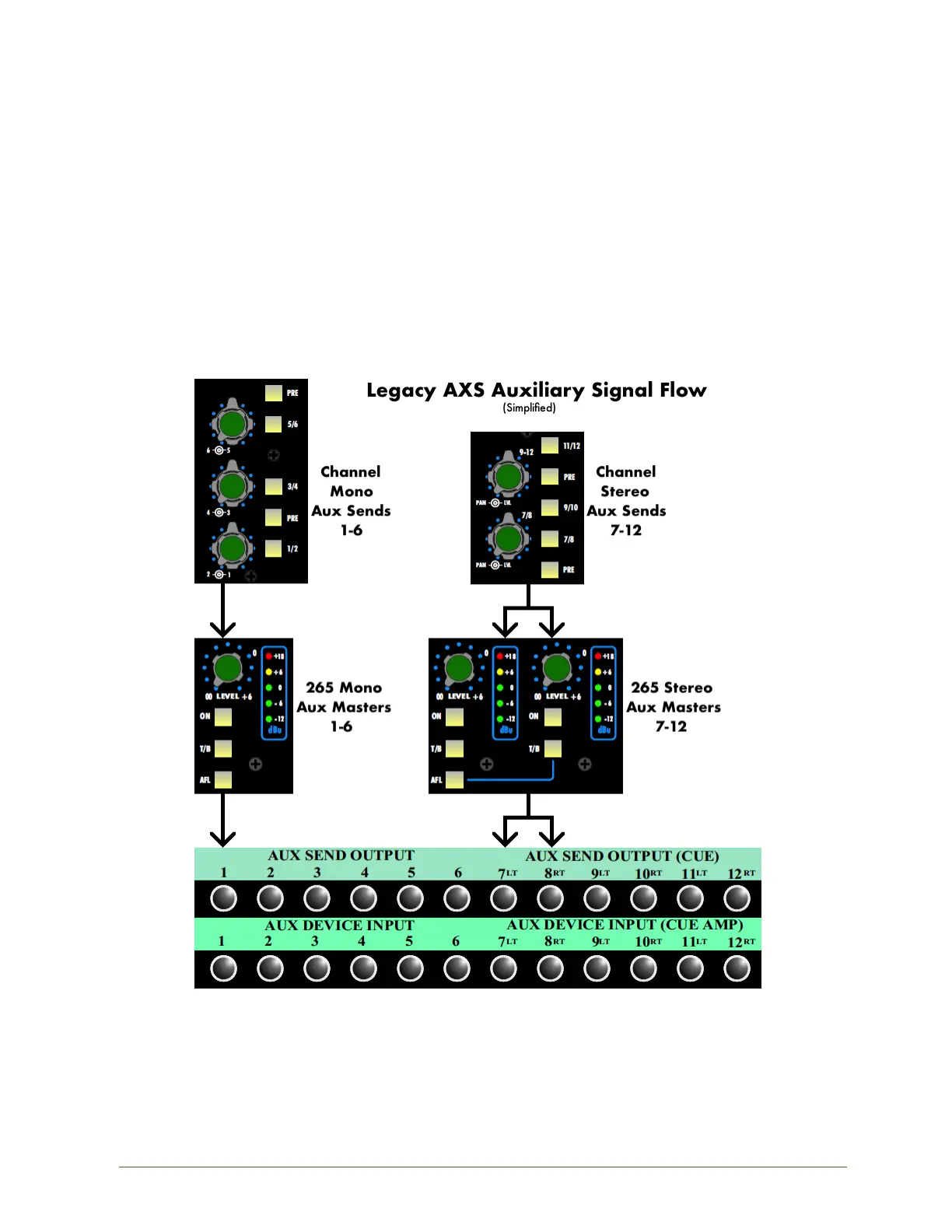

Auxiliary Signal Flow
The diagram below shows the basic Auxiliary signal flow.
