Legacy AXS API
Channel Patch Bay

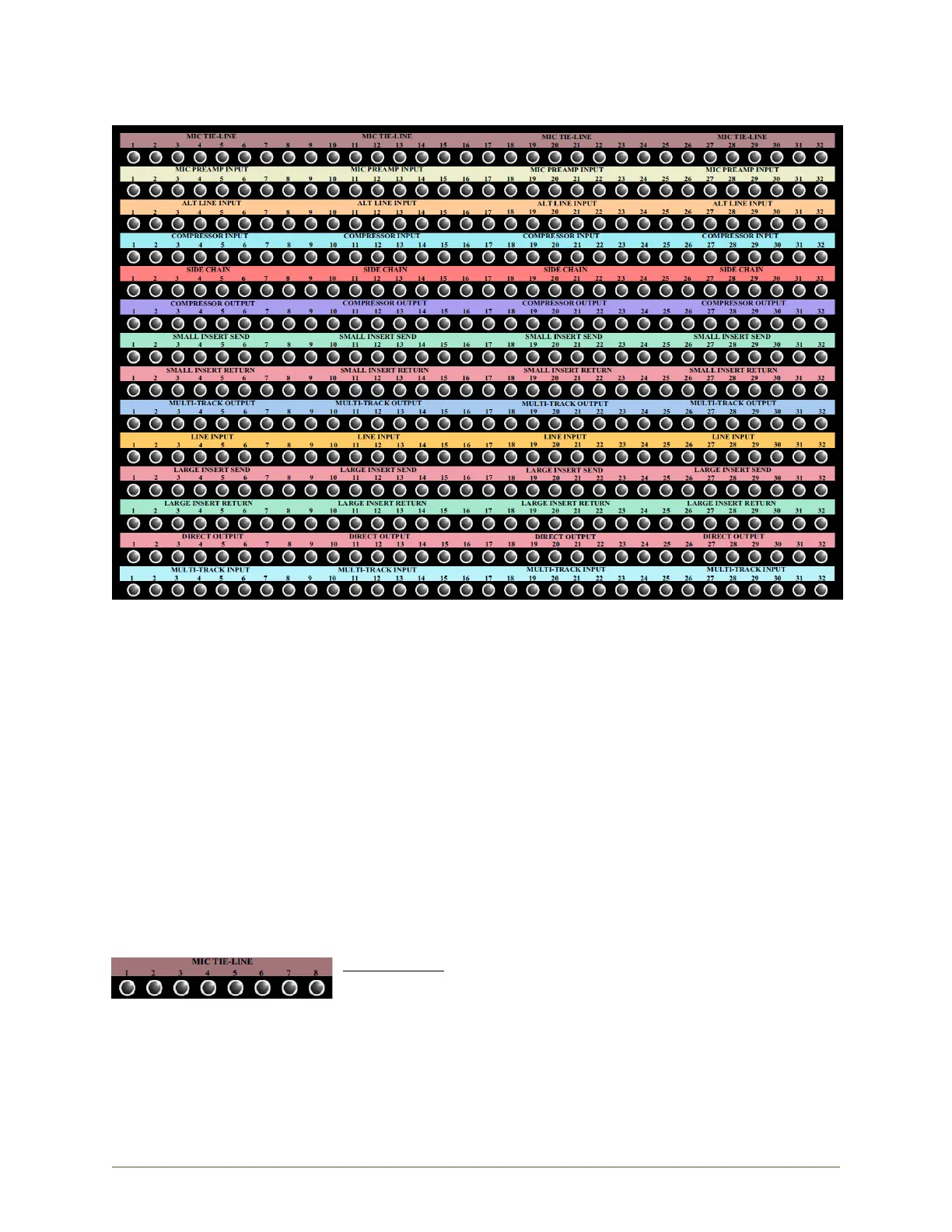

The Legacy AXS has 14 patch points associated with channel signal flow. These points are located in the
Channel patch bay.
The 14 channel patch points are as follows:
MIC TIE-LINE
MIC PREAMP INPUT (upper 200 slot mic preamp in)
ALT LINE INPUT
COMPRESSOR INPUT (lower 200 slot)
SIDE CHAIN (lower 200 slot dynamic processor key input)
COMPRESSOR OUTPUT (lower 200 slot)
SMALL INSERT SEND (Small Fader path)
SMALL INSERT RETURN (Small Fader path)
MULTITRACK OUTPUT
LINE INPUT (Large Fader path)
LARGE INSERT SEND (Large Fader path)
LARGE INSERT RETURN (Large Fader path)
DIRECT OUTPUT
MULTITRACK INPUT
The following section outlines the channel patch points in the order they appear in the Channel patch
bay. Depending on console configuration, there will be patch points for 32, 48, 64, or 80 channels in
the bay. In the interest of space, patch points for only 8 channels are shown below.
MIC TIE-LINE: Studio microphone outputs
• Full-normal to MIC PREAMP INPUT
• Breaking output: Inserted patch cord will replace studio tie-
line connection
