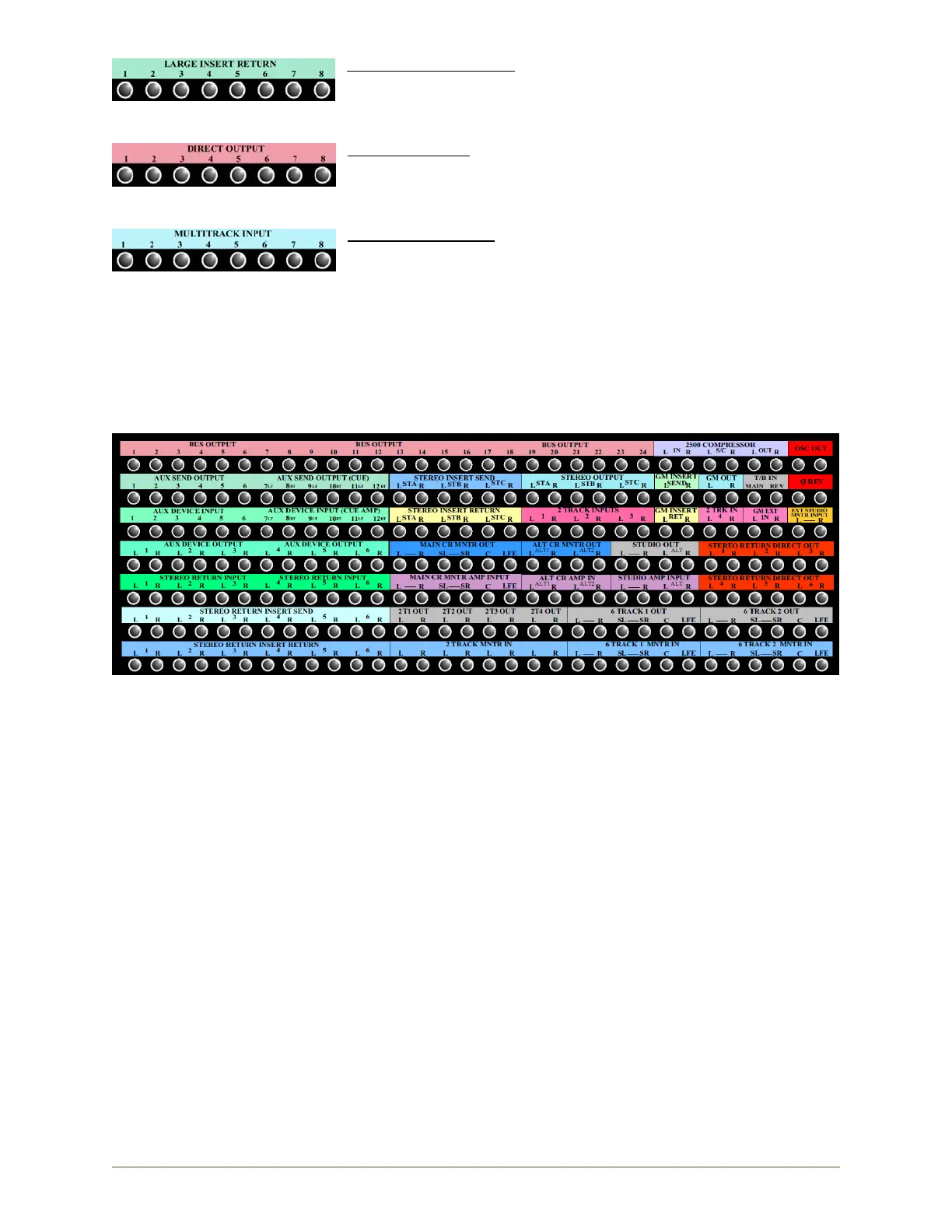

LARGE INSERT RETURN: Insert Return to the Large Fader path
Patched signal is inserted in the Large Fader path when the
INS button is engaged
Pre-fader, post-EQ
DIRECT OUTPUT: Channel Direct Output (as assigned)
Fed post-fader from the Large Fader by default
Half-normalled to the MULTITRACK INPUT
• Outputs split if patched
MULTITRACK INPUT: Connection to multitrack recorder inputs
Half-normalled from the DIRECT OUTPUT
Breaking input: Inserted patch cord will replace normalled
connection
NOTE: The multitrack recorder may alternately be fed from the Multitrack Buses by patching the
BUS OUTPUT patch points to the MULTITRACK INPUT patch points.
System Patch Bay
The master and system patch points are located in the System patch bay.
The System patch bay contains patch points that support the following:
Stereo Returns: Inputs, inserts, and Direct Outputs
Stereo Program Masters: Insert and output
Stereo Grand Master: External input, insert, and output
2500C Stereo Bus Compressor: Inputs, side chain inputs, and outputs
Multitrack Bus outputs
Auxiliary Master outputs
Auxiliary Device inputs and outputs
2-Track recorder inputs
2-Track record/playback device outputs
Monitor return inputs
Control room and studio monitor outputs
Control room and studio amplifier inputs
Talkback inputs
Oscillator outputs
Ø phase reverse (polarity inverter)
