Legacy AXS API
2500C Stereo Bus Compressor
The Legacy AXS is equipped with a 2500C Stereo Bus Compressor. This compressor is available only
on patch, but can be routed to STA, STB, STC, or GM via insert. See the user guide in the appendix.
946 Stereo Program Master Faders

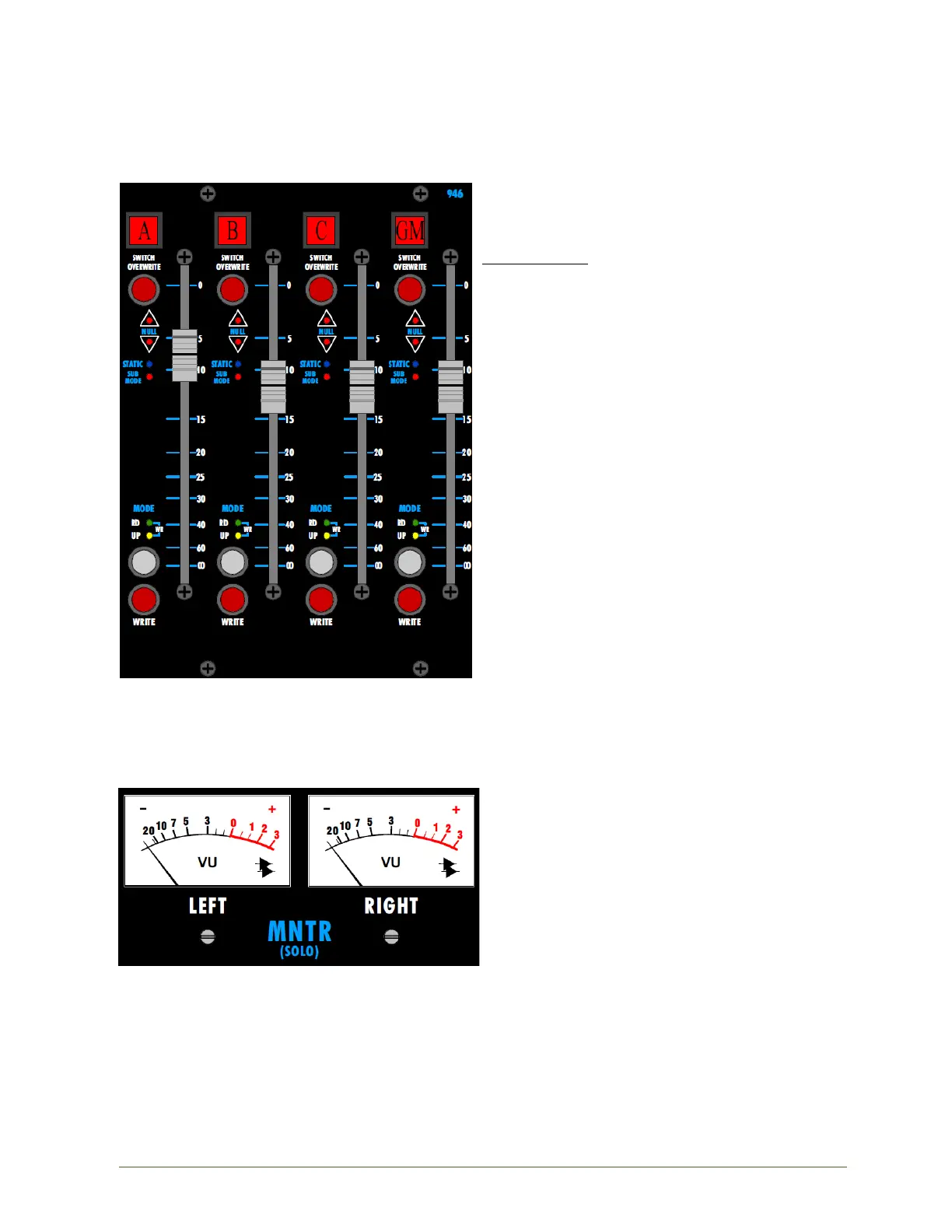

The 946 Stereo Master Fader Module contains the
three stereo Program Master Faders (A, B, & C) and
one Grand Master Fader (GM).
Master Faders: Controls the output level of the
stereo Program Masters.
Stereo fader
Full-size 100mm resistive fader
Cut only: 0dB of gain
-∞dB of attenuation
Unity gain when set to 0dB
The A, B, C Master Faders are the master output
level control for their respective stereo Program
Masters and outputs
The GM fader is the Grand Master Fader. The
Grand Master is the master output level control for
the Grand Master output.
Master Faders are controlled by automation.
Main Stereo Meters
A pair of large, high-quality VU meters are installed in the top bay of the master bucket for indicating
the stereo Program, Playback, and Solo levels.
The source for the Main Stereo Meters is selected
using the Control Room Monitor source selectors
(MNTR). Accordingly the Main Meters can be fed
from the following sources:
Stereo Program Masters (PGM MNTR):
o A, B, or C
o Grand Master
o Aux 7/8, 9/10, & 11/12
Solo Bus
External Playback Sources (PLAY MNTR):
o 2-Track 1-4
o 6-Track 1-2 (Left and Right)
While recording and mixing the Main Meters display the level of the stereo Program Master of the
Program Master that’s being used for mixing and monitoring. When a PFL or AFL SOLO is engaged,
the control room Monitor Source is replaced with the output of the Solo Bus and the Solo Bus is
displayed on the LEFT and RIGHT Main Meters (SOLO).
