Legacy AXS API
Channel Patch Bay
The Legacy AXS has 14 patch points associated with channel signal flow. These points are located in
the Channel patch bay.
The 14 channel patch points are as follows:
MIC TIE-LINE
MIC PREAMP INPUT (upper 200 slot mic preamp in)
ALT LINE INPUT
COMPRESSOR INPUT (lower 200 slot)
SIDE CHAIN (lower 200 slot dynamic processor key input)
COMPRESSOR OUTPUT (lower 200 slot)
SMALL INSERT SEND (Small Fader path)
SMALL INSERT RETURN (Small Fader path)
MULTITRACK OUTPUT
LINE INPUT (Large Fader path)
LARGE INSERT SEND (Large Fader path)
LARGE INSERT RETURN (Large Fader path)
DIRECT OUTPUT
MULTITRACK INPUT

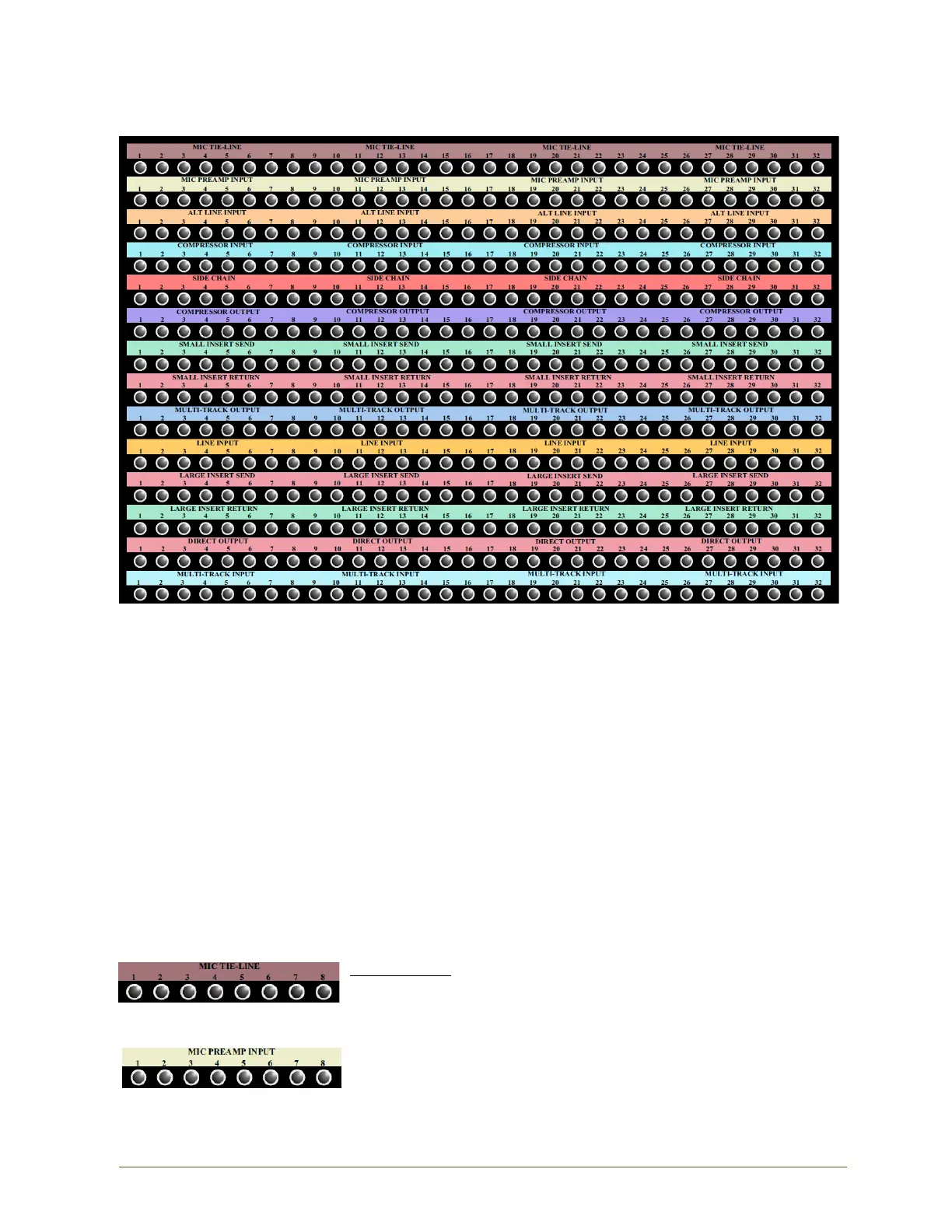

The following section outlines the channel patch points in the order they appear in the Channel Bay.
Depending on console configuration, there will be patch points for 32, 48, 64, or 80 channels in the
bay. In the interest of space, patch points for only 8 channels are shown below.
MIC TIE-LINE: Studio microphone outputs
• Full-normal to MIC PREAMP INPUT
• Breaking output: Inserted patch cord will replace studio tie-
line connection
MIC PREAMP INPUT: 212 Mic Preamp inputs
• Balanced, low-impedance, mic-level input
• Full-normal from MIC TIE-LINE patch points
