API Legacy AXS - Master Channel Routing Controls

Legacy AXS API
45
The Legacy AXS master bucket provides a comprehensive suite of master controls, facilities, and
features that address all the needs of modern audio production. These facilities include:
• Master Channel Routing Controls
• 6 Assignable Stereo Returns
• 3 Stereo Program Bus Masters and Master Faders (A, B, C)
• Stereo Grand Master and Fader (GM)
• Main Stereo VU Meters
• 2500C Stereo Bus Compressor
• Automation Controller
• 2 Automation Group Master Faders
• 24 Multitrack Bus Masters
• 12 Auxiliary/Cue Masters
• Talkback Controls
• Solo Controls
• Meter and Peak Indicator Controls
• Control Room Monitor Controls
• Studio Monitor Controls
• Oscillator
• PSU Indicators
• User Switches
Master Channel Routing Controls

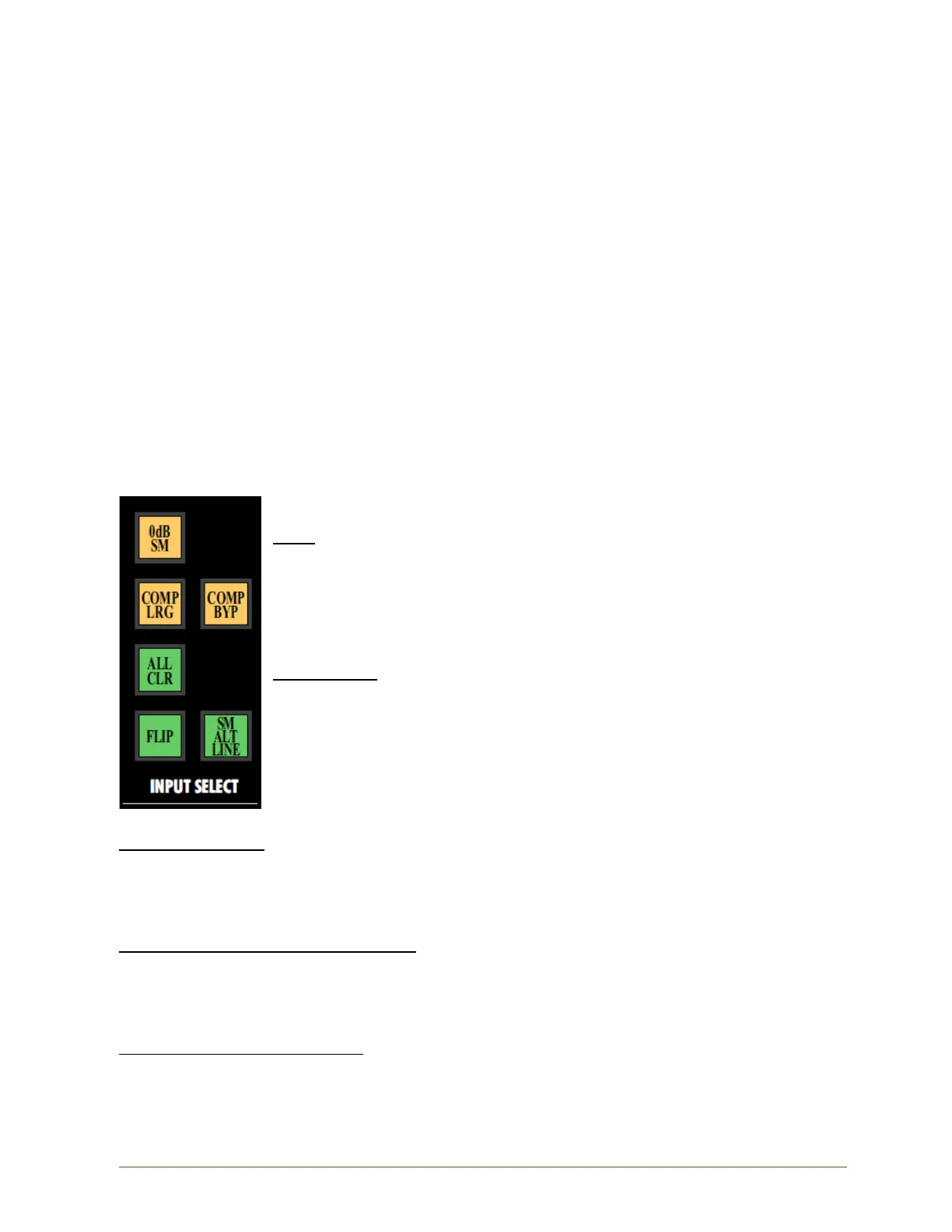

The channel signal flow can be altered console-wide using the controls in the INPUT SELECT area of
the Master Section.
The INPUT SELECT controls function as follows:
FLIP: Swaps the input sources between Large and Small Fader paths globally
 The Preamp Output will be routed to the Large Fader path
 The Line Input will be routed to the Small Fader path
 Input sources on individual channels can be reset by engaging the FLIP
button on the 968 Input Module
 Illuminates briefly when engaged to acknowledge activation, but then
goes out
SM ALT LINE: Switches the Small Fader path input to the Alternate Line In (ALT)
globally
• Replaces the preamp output with the Alt Line In as the Small Fader
path
source on all channels
 The Small Fader input source on individual channels can be reset by
engaging the ALT button on the 968 Input Module
 Illuminates briefly when engaged to acknowledge activation, but then
goes out
ALL CLR (All Clear): Returns all channel input routing to the default positions:
• Resets the FLIP and ALT buttons on all channels
• The Small Fader source will be the Preamp output
• The Large Fader source will be the Line Input
• Illuminates only when pressed
COMP LRG (Compressor to Large Fader): Routes the 200 slot processor into the Large Fader path
globally
 The Compressor routing on individual channels can be reset by engaging the COMP LRG button
on the 968 Input Module
• Illuminates when engaged
COMP BYP (Compressor Bypass): Bypasses the 200 slot processor on all channels
• Illuminates when engaged
