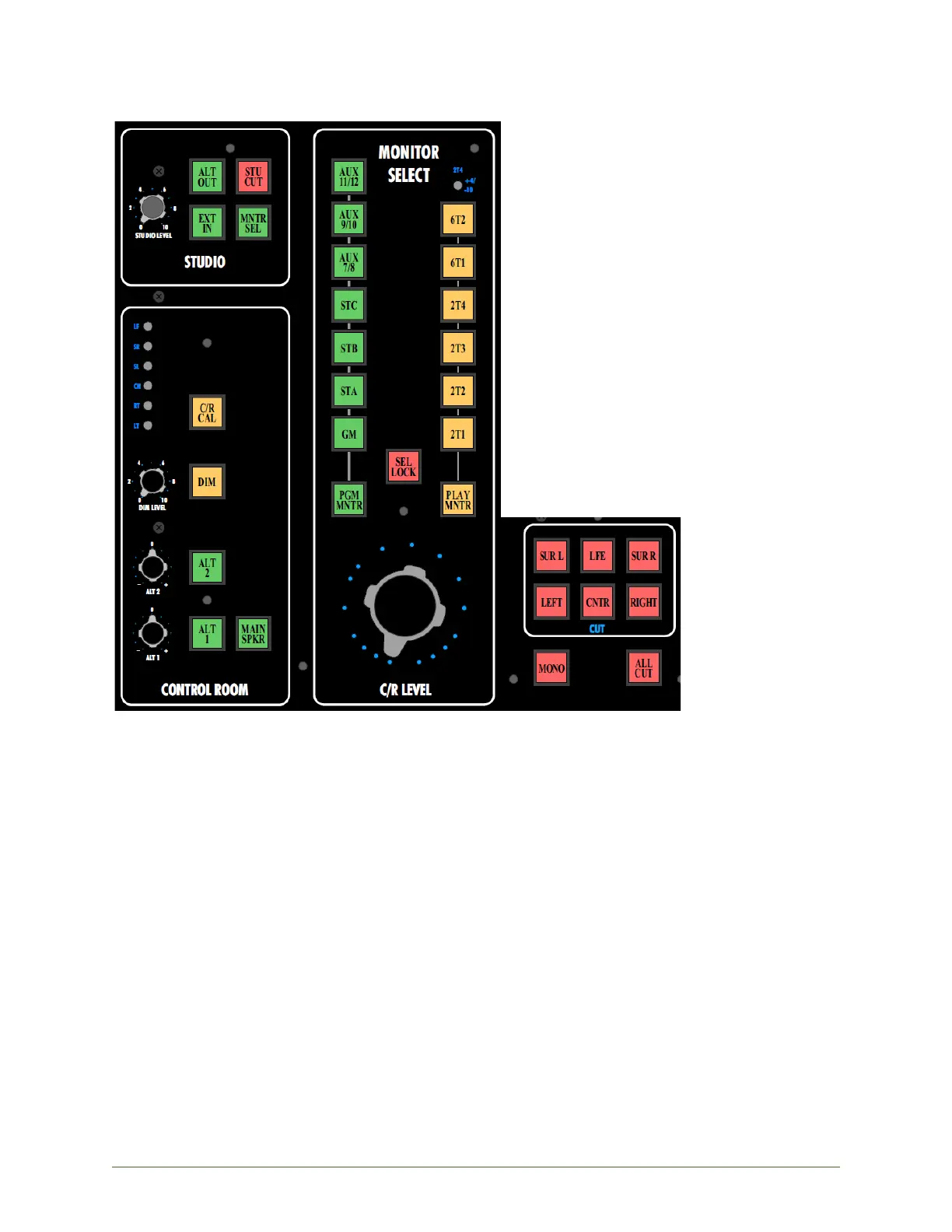

Monitor Control
The Legacy AXS console provides comprehensive control room and studio monitor control facilities.
Control Room Monitoring
Support is provided for three (3) pairs of control room monitors, MAIN, ALT 1, and ALT 2. The source
for the monitors may be selected between seven (7) internal (PGM MNTR) and six (6) external (PLAY)
sources. The MAIN monitors support 5.1 surround playback and stereo monitoring.
Stereo Program (PGM MNTR) sources include stereo Program Buses A, B, C, Grand Master, and Aux 7/8,
9/10, 11/12. External sources (PLAY MNTR) include four (4) 2-track recorders/stereo sources and two
(2) 5.1 surround external inputs. 2-track #4 can accept a -10dBv unbalanced input.
The following features may be applied:
 Speaker system selection
 Control room level controls
 ALL CUT
 DIM with level
 Left and Right monitor mute
 Mono summing
Features include:
 Control room stereo and surround
monitoring
 Control room monitor systems:
o Two stereo ALT systems
with independent level
o One MAIN stereo/5.1
surround system
o Individual monitor cuts
o Calibrated level control
 7 internal stereo monitor sources
 6 external monitor sources:
o 4 stereo
o 2 surround
 One +4/-10dBv external source
 Monitor source selection lock
 ALT monitor output trims
 2 studio loudspeaker systems
 DIM and CUT for Control Room
and Studio
