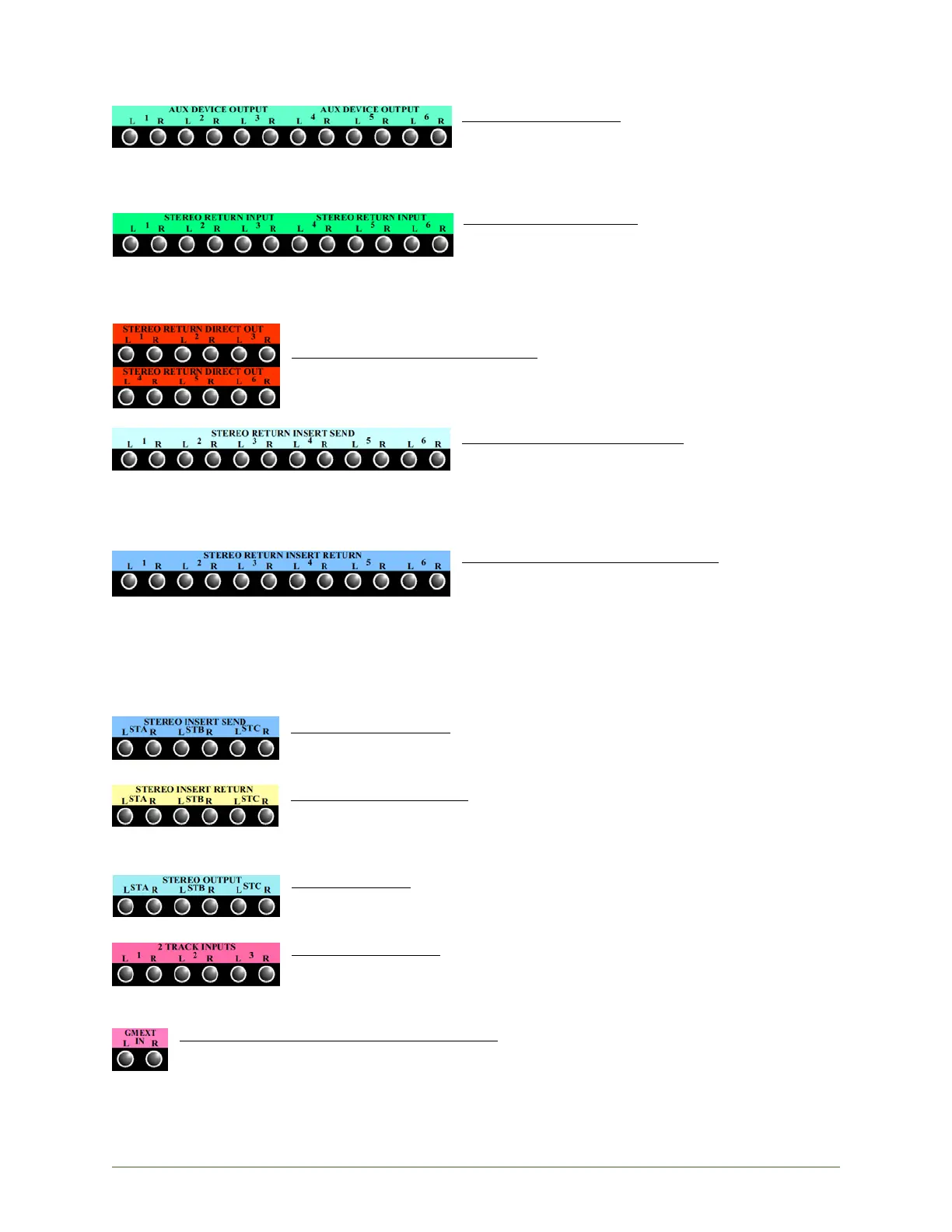

Stereo Return Patch Points
The following section outlines Stereo Return patch points.
AUX DEVICE OUTPUT: Stereo output connections for
external devices
 Half-normalled to the STEREO RETURN
INPUT
 Outputs split if patched
STEREO RETURN INPUT:
 Balanced, line-level, low-impedance
 Half-normalled from the AUX DEVICE
OUTPUT
• Breaking input: Inserted patch cord will
replace normalled connection
STEREO RETURN DIRECT OUTPUT: Stereo Return Direct Output
STEREO RETURN INSERT SEND: Stereo Return Insert
Send
 Pre-fader
 Always active
 Outputs split if patched
STEREO RETURN INSERT RETURN: Stereo Return
Insert Return
• Patched signal is inserted in the Stereo Return
signal flow when the INS button is engaged
 Pre-fader
Stereo Program Master Patch Points
The following section outlines Stereo Program Master patch points.
STEREO INSERT SEND: Insert Send from stereo Program Masters A, B, C
 Always active
 Pre-fader
STEREO INSERT RETURN: Insert Return to stereo Program Masters A, B, C
 Patched signal is inserted in the Program Master signal flow when
the INS button is engaged
 Pre-fader
STEREO OUTPUT: Main outputs for stereo Program Masters A, B, C
• Half-normalled to 2 TRACK INPUTS 1, 2, 3
• Outputs split if patched
2 TRACK INPUTS 1-3: Input to 2-track recorders 1-3
• Half-normalled from STEREO OUTPUT A, B, C
• Breaking input: Inserted patch cord will replace normalled
Connection
GM EXT IN (Grand Master External Input): Stereo external inputs to the Grand Master
summing bus
• The EXT button on the Grand Master must be engaged for the external source to be
routed to the Grand Master summing bus
