Auxiliary Masters 1-12

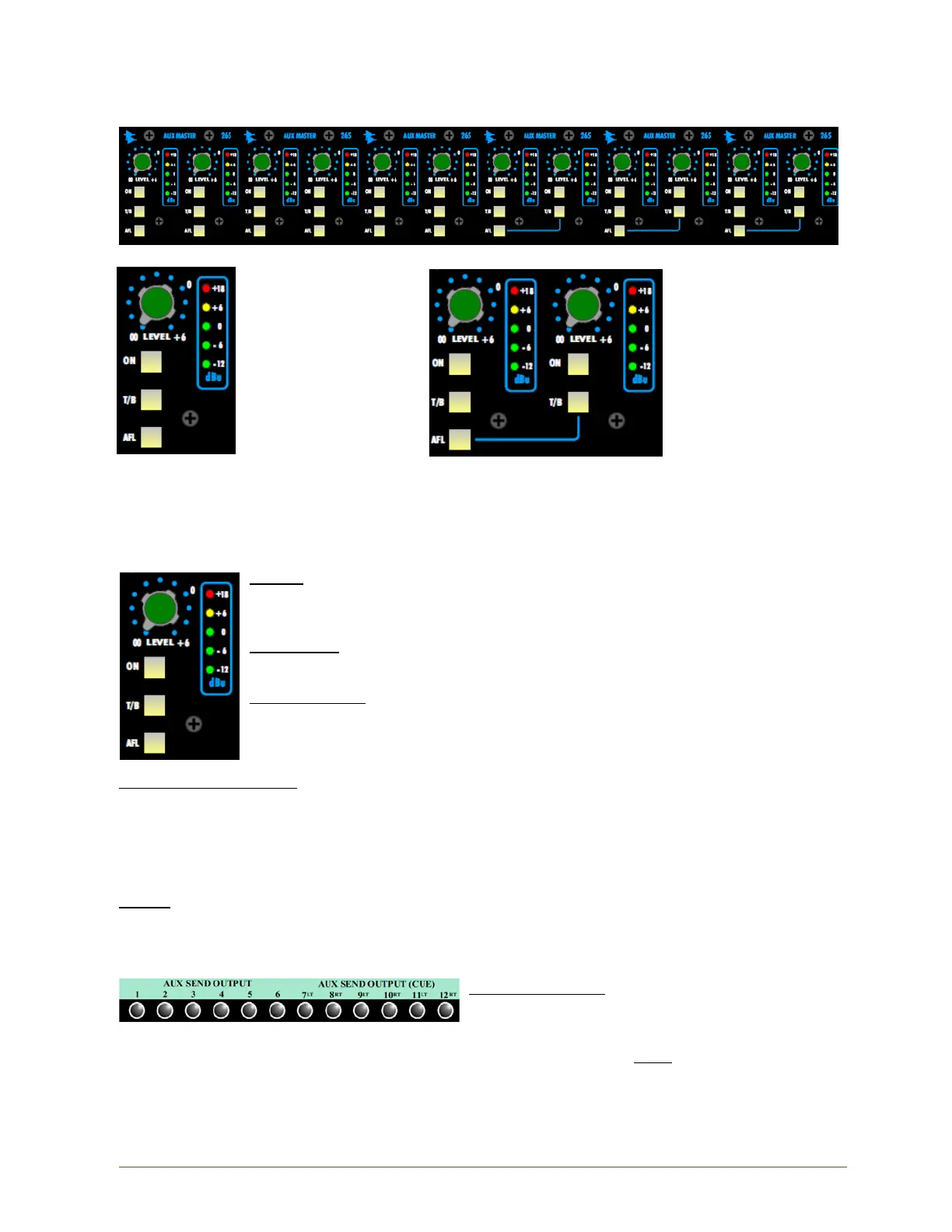

Auxiliary Bus Masters 1-12 are located above the Stereo Returns in the 265 Aux Master module. Each
Aux Master is the output control for the corresponding Auxiliary Bus.
Aux Bus Masters 1-6
provide output level
control for mono Aux
Sends & Buses 1-6.
The mono and stereo Aux Masters are identical with the exception of the AFL solo. Mono Aux Masters
1-6 are equipped with an individual AFL solo button for mono operation. Aux Masters 7/8, 9/10, 11/12
are equipped with a ganged AFL solo function for stereo operation.
The controls for all Aux Masters function as follows:
LEVEL: Output level control.
Feeds the AUX SEND OUTPUT 1-12
-∞ to +6dB range
ON (on/off): On/off switch for the Aux Bus outputs
• Illuminates when engaged
T/B (Talkback): Routes the Talk Back output to the Aux Master
• Talkback output will be added to the Aux Master output when the AUX
Talkback button is pressed in the Master Section.
• Illuminates when engaged
AFL (After Fader Listen): Activates the AFL solo function for the Aux Master
• AFL is the only solo function available for the Aux Masters
• Each mono Aux Master (1-6) has an individual ALF button
• Each pair of stereo Aux Masters (7/8, 9/10, 11/12) share a common AFL button for stereo
operation
• Illuminates when engaged
Meter: Displays Aux Master output level
• 5-segment LED meter
Auxiliary Master Patch Points
AUX SEND OUTPUT: Auxiliary bus outputs
1-6 are mono aux outputs
7-12 are stereo (LT/RT) aux/cue outputs
Half-normalled to AUX DEVICE INPUT
Outputs split if patched
provide output level
control for stereo Aux
Sends 7/8, 9/10, and
11/12.
