Control Room Monitor Source Selection (MONITOR SELECT)

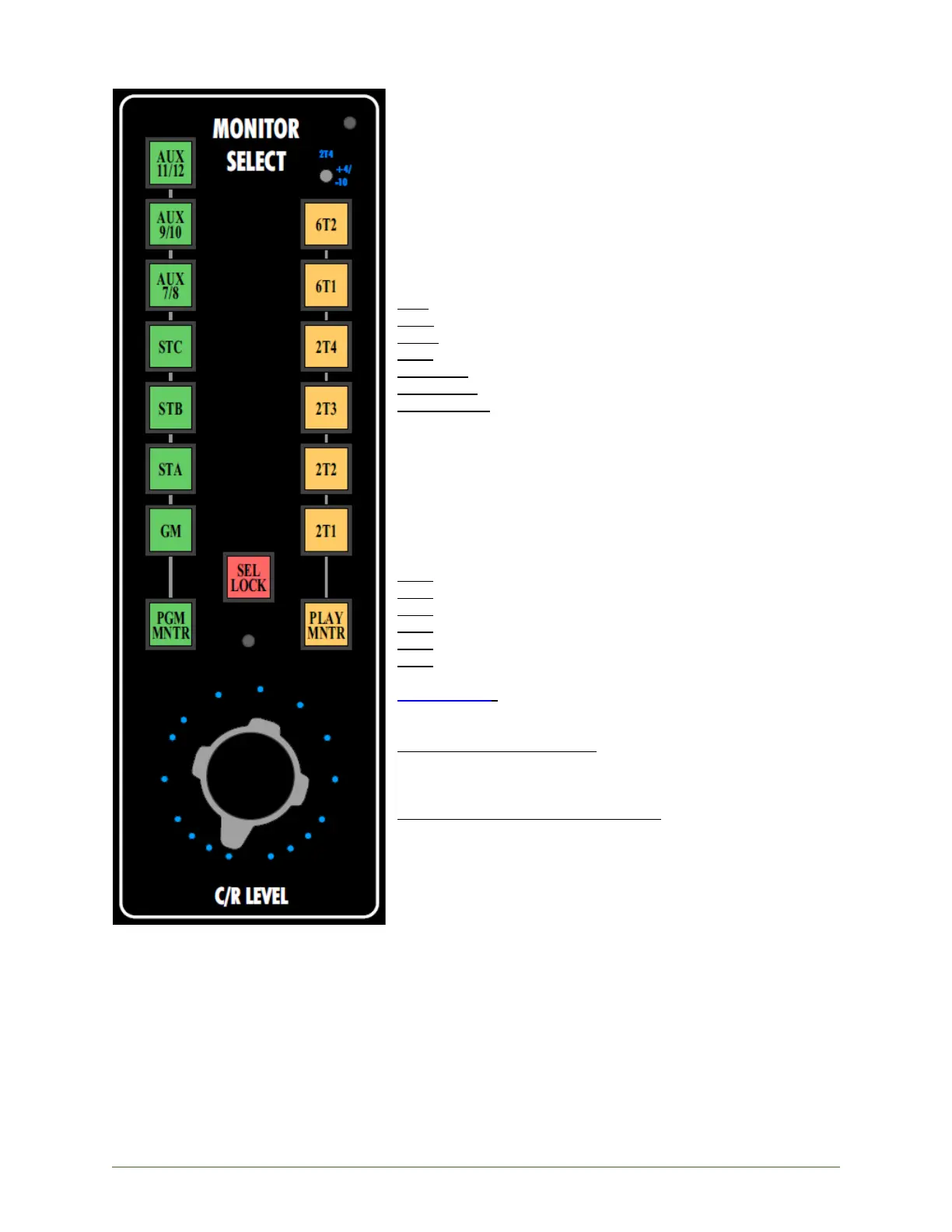

The MONITOR SELECT section contains selectors for seven
internal console (PGM MNTR) or six external (PLAY MNTR)
sources for the control room monitor systems. This section also
contains the main Control Room monitor level control (C/R
LEVEL).
Internal monitor sources are selected by engaging the PGM
MNTR (Program Monitor) button and the selector for the
desired internal source.
The following internal sources may be selected as the Control
Room monitor source:
GM: Output of the stereo Program Grand Master
STA: Output of stereo A Program Master
STB: Output of stereo B Program Master
STC: Output of stereo C Program Master
Aux 7/8: Output of Aux Masters 7/8
Aux 9/10: Output of Aux Masters 9/10
AUX 11/12: Output of Aux Masters 11/12
NOTE: All internal monitor sources are stereo.
External monitor sources are selected by engaging the PLAY
MNTR (Playback Monitor) button and the selector for the
desired external source.
The following external sources may be selected as the Control
Room monitor source:
2T1: Output of 2-track recorder/stereo source #1
2T2: Output of 2-track recorder/stereo source #2
2T3: Output of 2-track recorder/stereo source #3
2T4: Output of 2-track recorder/stereo source #4
6T1: Output of surround source #1
6T2: Output of surround source #2
2T4 +4/-10: Switches the input for 2T4 between -10dBv to
+4dBu level
SEL LOCK (Selection Lock): Protects the control room monitor
source from changes
• Illuminates when engaged
C/R LEVEL (Control Room Level): Level control for the
selected control room monitor system
Primary level control for the MAIN and ALT control
room monitors
-∞dB to 0dB range
Fed from the selected MONITOR SELECT source
