Large Fader Path and Channel Routing Controls
The 968 Large Fader audio path is the primary audio channel designed to serve
the following functions:
Primary signal path during mixing with 100mm, automated fader
Monitor mix during multitrack recording
OR
Routing microphone and instrument inputs to a multitrack recorder
Retuning effects, virtual tracks, and other sources during mix-down
The Large Fader path is fed from the Line Input by default.
Accordingly, the Large Fader audio path is equipped with the following features:
-6dB Line Input Pad
Channel Trim
Ø Phase Reverse (Polarity Inverter)
Default path for EQ
Assignable lower 200 slot (COMP)
Insert Send and Return
Sweepable high-pass filter
Default source for Direct Output
Default source Multitrack Bus assignments
Odd-even panning across Multitrack Buses
Assignable to stereo Program Buses A, B, and C
Panning to stereo Program Buses
100mm, long-throw, automated Large Fader
MUTE
SOLO
Solo and channel routing SAFE
Peak Indicator
Access to Channel Meter (depending on Master Meter Selection)
The channel routing controls are also included in this section and function as follows:
FLIP: Swaps the input sources between the Large and Small Fader paths
The upper 200 slot Preamp Output is the default source for the Small Fader path
The Line Input is the default source for the Large Fader path
Will engage on all channels when the FLIP button is engaged in the Master Section
Illuminates when engaged
DIR PRE (Direct Output Pre): Routes the pre-EQ & Insert signal from the assigned fader path to the
Direct Output.
• The Direct Output is the fed post-fader signal from the assigned path by default
• Illuminates when engaged
DIR SM (Direct Output Small Fader): Routes the Small Fader path to the Direct Output
• The Direct Output is fed from the Large Fader path by default
• Illuminates when engaged

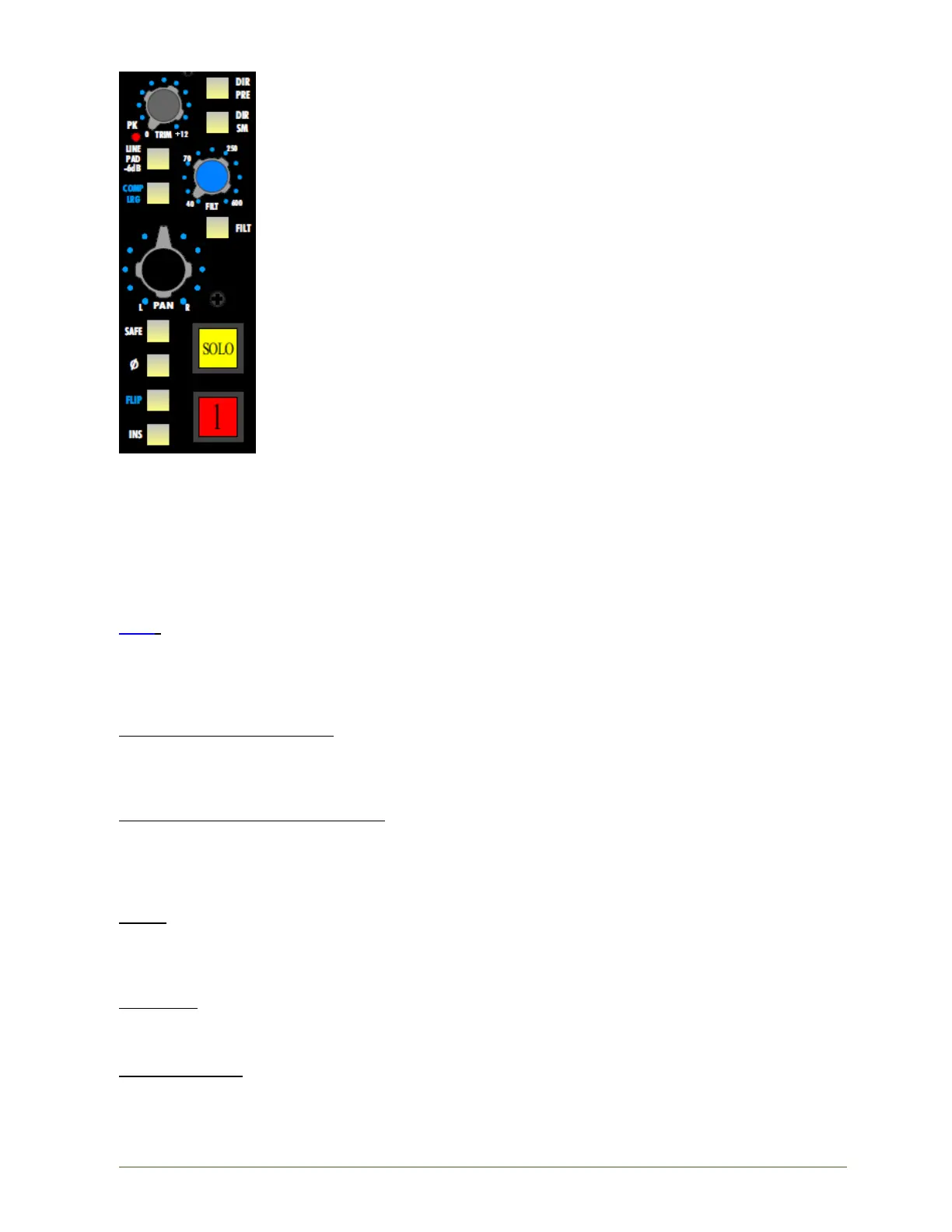

The controls for the Large Fader path function as follows:
TRIM: Sets the amount of pre-fader level Trim (boost)
0 to +12dB of gain
Located pre-fader, so the added gain is reflected in all post-fader stages (Aux Sends, Solos,
Bus Assignments and Direct \Output)
PK (Peak): A red LED illuminates when the preset Peak Reference level is reached in the Small Fader
audio path
The peak level is selected by the PEAK REFERENCE selector in the Master Section
LINE PAD -6dB: Inserts a -6dB pad immediately after Line Input
