API Legacy AXS - 2500 C Stereo Bus Compressor Patch Points; Multitrack Patch Points; Auxiliary Master Patch Points

Legacy AXS API
80

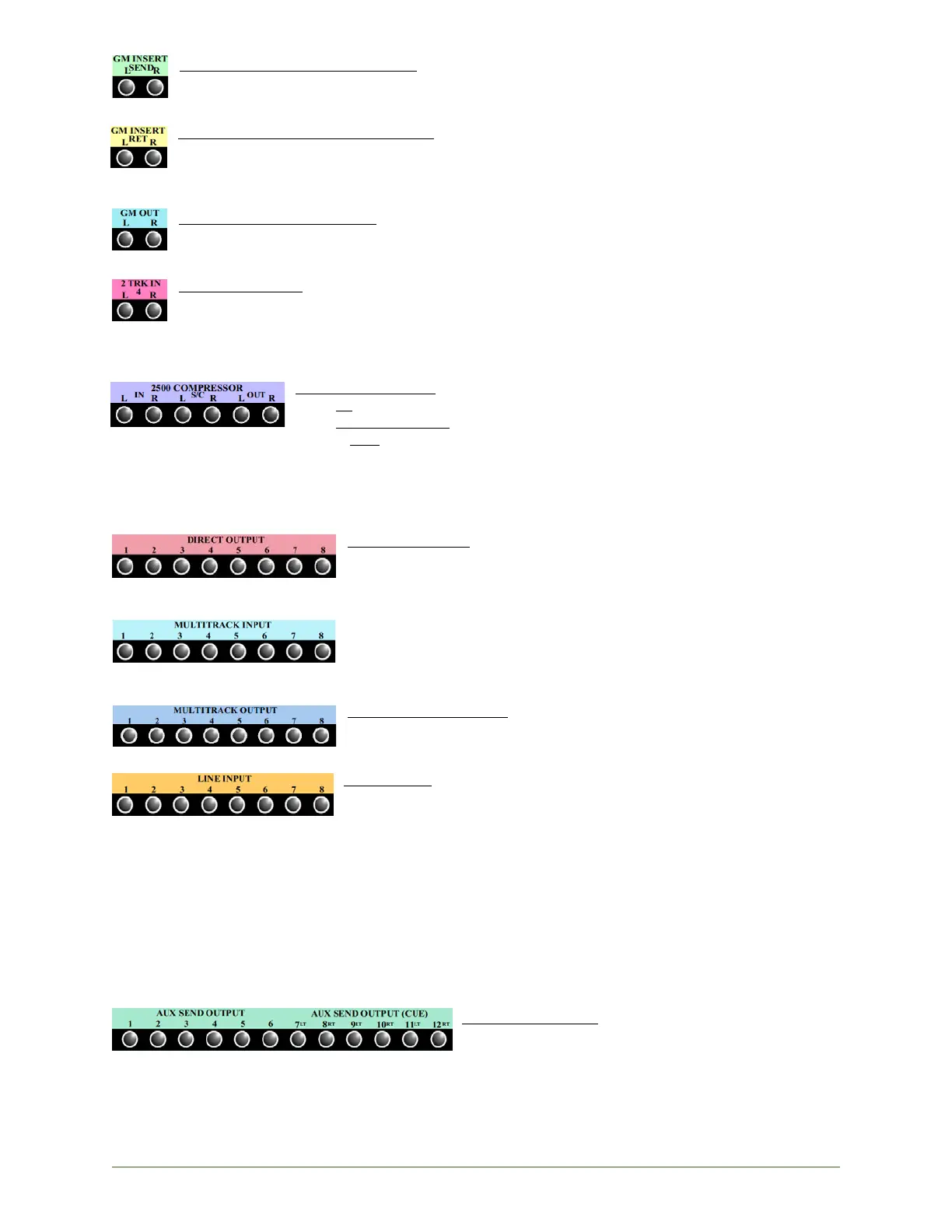

GM INSERT SEND (Grand Master): Insert Send from the stereo Grand Master
 Always active
 Pre-fader
GM INSERT RETURN (Grand Master): Insert Return to the stereo Grand Master
 Patched signal is inserted in the Program Master signal flow when
the INS button is engaged
 Pre-fader
GM OUTPUT (Grand Master): Main outputs for the stereo Grand Master
• Half-normalled to 2 TRACK INPUT 4
• Outputs split if patched
2 TRACK INPUT 4: Input to 2-track recorder 4
• Half-normalled from STEREO OUTPUT A, B, C
• Breaking input: Inserted patch cord will replace normalled connection
2500C Stereo Bus Compressor Patch Points
2500 COMPRESSOR: 2500C stereo Bus Compressor patch points
• IN: Left/Right compressor input
• S/C (side chain): Left/Right input to the compressor detection path
• OUT: Left/Right compressor output
NOTE: The 2500C Stereo Bus Compressor must be patched to be used.
Multitrack Patch Points
DIRECT OUTPUT: Channel Direct Output (as assigned)
 Fed post-fader from the Large Fader by default
 Half-normalled to the MULTITRACK INPUT
• Outputs split if patched
MULTITRACK INPUT: Connection to multitrack recorder inputs
 Half-normalled from DIRECT OUTPUT
 Breaking input: Inserted patch cord will replace normalled
connection
MULTITRACK OUTPUT: Multitrack recorder returns
• Half-normal to LINE INPUT
• Outputs split if patched
LINE INPUT: Main line-level inputs
• Balanced, low-impedance, line-level input
• Half-normal from MULTITRACK OUTPUT
• Breaking input: Inserted patch cord will replace normalled
connection
NOTE: The DIRECT OUTPUT, MULTITRACK INPUT/OUTPUT, and LINE IN patch points are associated
with the channels and are not part of the Multitrack Bus system. Since BUS OUTPUTS are
commonly patched to feed the multitrack recorder, the DIRECT OUTPUT, MULTITRACK
INPUT/OUTPUT, and LINE IN patch points are shown here.
Auxiliary Master Patch Points
AUX SEND OUTPUT: Auxiliary bus outputs
 1-6 are mono aux outputs
 7-12 are stereo (LT/RT) aux/cue outputs
 Half-normalled to AUX DEVICE INPUT
 Outputs split if patched
