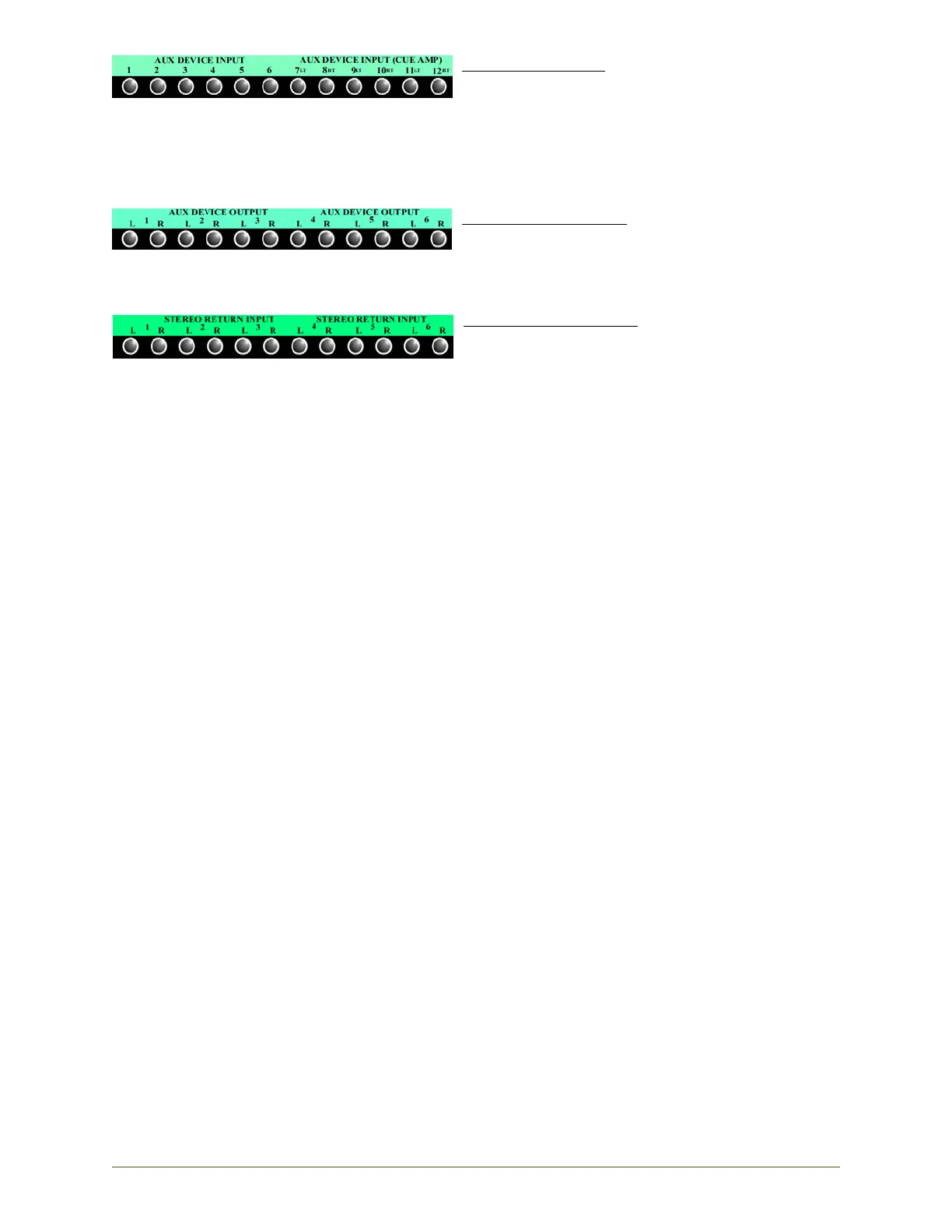

AUX DEVICE INPUT: Connection to external effects
devices, cue systems, and/or other devices
1-6 are fed from mono sends
7-12 are fed from stereo (LT/RT) aux/cue
sends
Half-normalled from the AUX SEND OUTPUT
• Breaking input: Inserted patch cord will
replace normalled connection
AUX DEVICE OUTPUT: Stereo output connections for
external devices
Half-normalled to the STEREO RETURN
INPUT
Outputs split if patched
STEREO RETURN INPUT:
Balanced, line-level, low-impedance
Half-normalled from the AUX DEVICE
OUTPUT
• Breaking input: Inserted patch cord will
replace normalled connection
To create normalled connections to headphone cue systems and effects devices, through external effects
processors, and back to the program buses for mixing, the Legacy AXS provides AUX DEVICE INPUT
and AUX DEVICE OUTPUT patch points to. The AUX DEVICE INPUT (CUE AMP) patch points are half-
normalled from the AUX SEND OUTPUT (CUE) patch points. The AUX DEVICE OUTPUT patch points are
half-normalled to the STEREO RETURN INPUT patch points. The diagram below illustrates an example
of how theses patch points can be interfaced to provide normalled connections to external effects devices
and cues systems.
