Multitrack Buses
There are twenty-four (24) Multitrack Buses. Multitrack Bus assignments are made using the 624 Bus
Assignment module in each channel.
Multitrack Buses may be fed from either the Small Fader path or Large Fader path, but not both
simultaneously. The default source for the Multitrack Buses is the Large Fader path. To feed the
Multitrack Buses from the Small Fader path, press the 24 button in the Small Fader controls on the
968 Input Module.
Multitrack Signal Flow

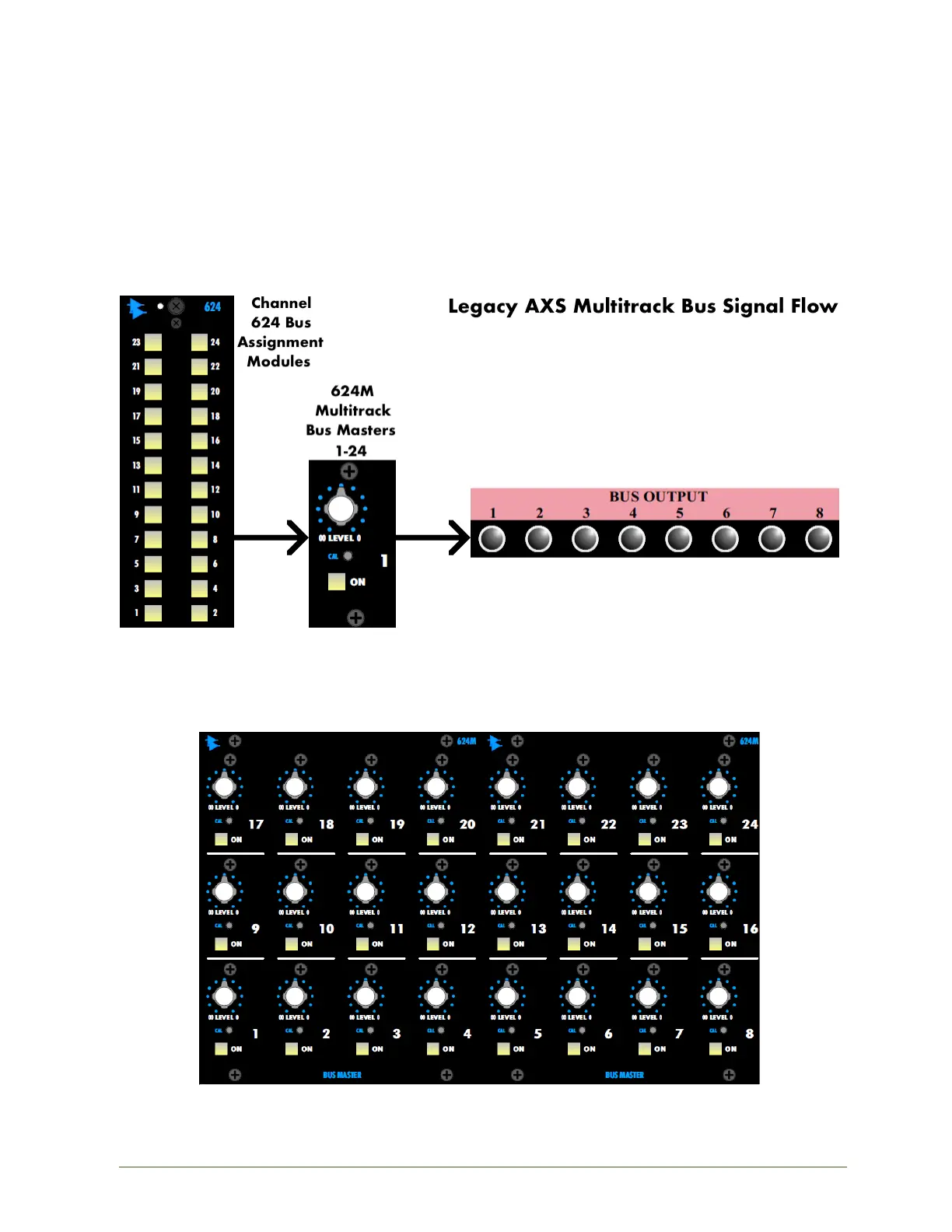

The diagram below shows the multitrack signal flow. Only the first eight Bus Outputs are shown.
624M Multitrack Bus Masters
Each of the 624 assignments feeds its respective Multitrack Bus and the corresponding 624M Multitrack
Bus Master in the master bucket.
