Each Multitrack Bus Master has a gain control and trim control. These controls feed the BUS OUTPUT
patch points 1-24 in the System patch bay.

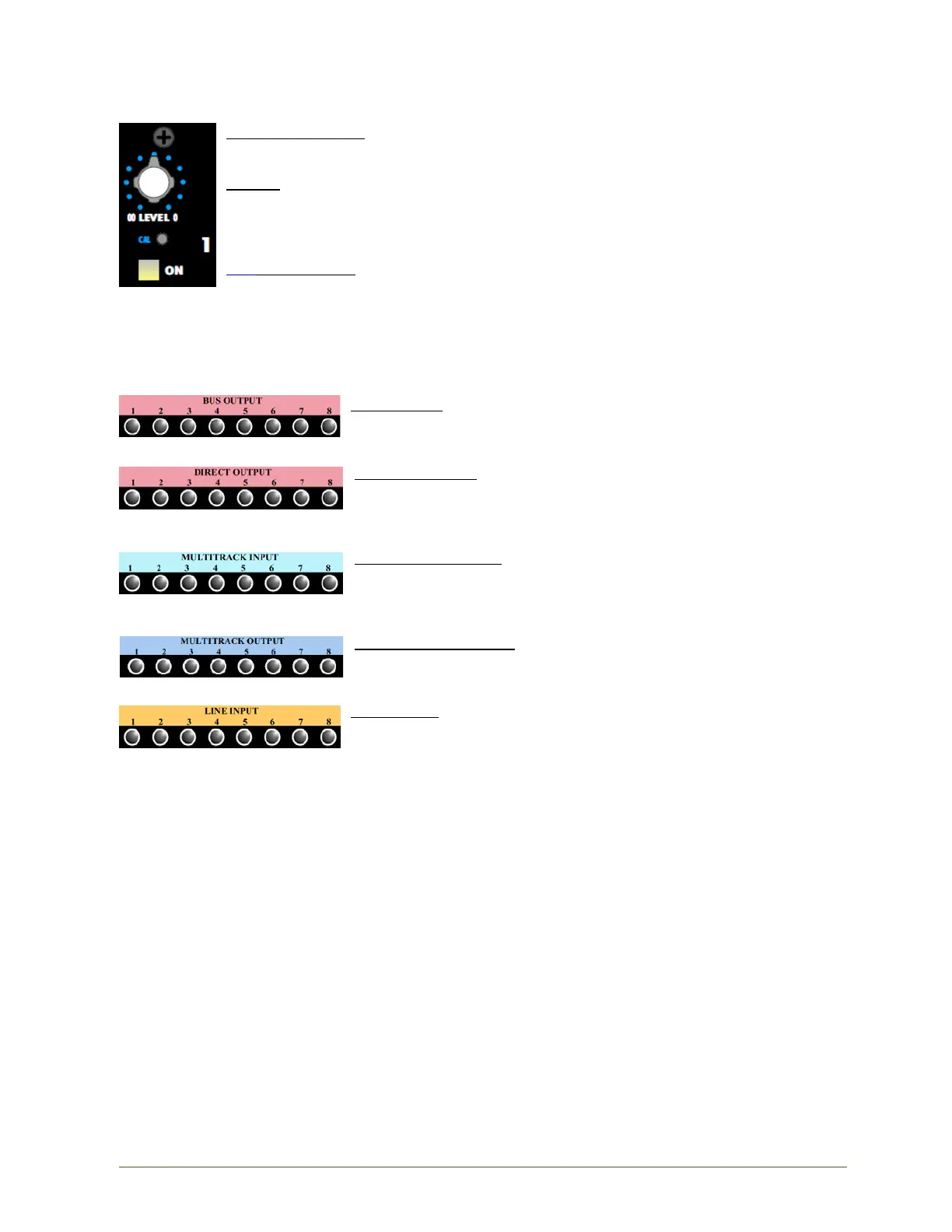

Controls for the 624M Multitrack Bus Masters are as follows:
ON (on/off switch): On/off switch for the Multitrack Bus outputs
• Illuminates when engaged
LEVEL: Sets the level for the Multitrack Bus output
• -∞ to 0dB range
• 0dB is unity gain (fully clockwise)
• -∞dB is full attenuation (fully counter-clockwise)
CAL (Calibration): Calibration trim pot
• Allows for precise adjustment of the bus output for calibration
The output of the Multitrack Bus Masters feed the BUS OUTPUT patch points in the System patch bay.
These patch points are not normalled to the MULTITRACK IN patch points.
Multitrack Patch Points
BUS OUTPUT: Multitrack Bus outputs
Not normalled in the standard configuration
DIRECT OUTPUT: Channel Direct Output (as assigned)
Fed post-fader from the Large Fader by default
Half-normalled to the MULTITRACK INPUT
• Outputs split if patched
MULTITRACK INPUT: Connection to multitrack recorder inputs
Half-normalled from DIRECT OUTPUT
• Breaking input: Inserted patch cord will replace normalled
connection
MULTITRACK OUTPUT: Multitrack recorder returns
• Half-normal to LINE INPUT
• Outputs split if patched
LINE INPUT: Main line-level inputs
• Balanced, low-impedance, line-level input
• Half-normal from MULTITRACK OUTPUT
• Breaking input: Inserted patch cord will replace normalled
connection
