Stereo Return Modules 1-6
Every Legacy AXS is equipped with six Stereo Return modules, located in the master bucket.
The six Stereo Returns are designed to
provide extra capacity and flexibility
during mixing and support techniques
such as returning stereo stems to a mix,
returning virtual instruments and tracks,
parallel compression, effects returns and
other applications. Each Stereo Return
can be assigned to any or all the three
stereo Program Buses as well as directly
to the program Grand Master.

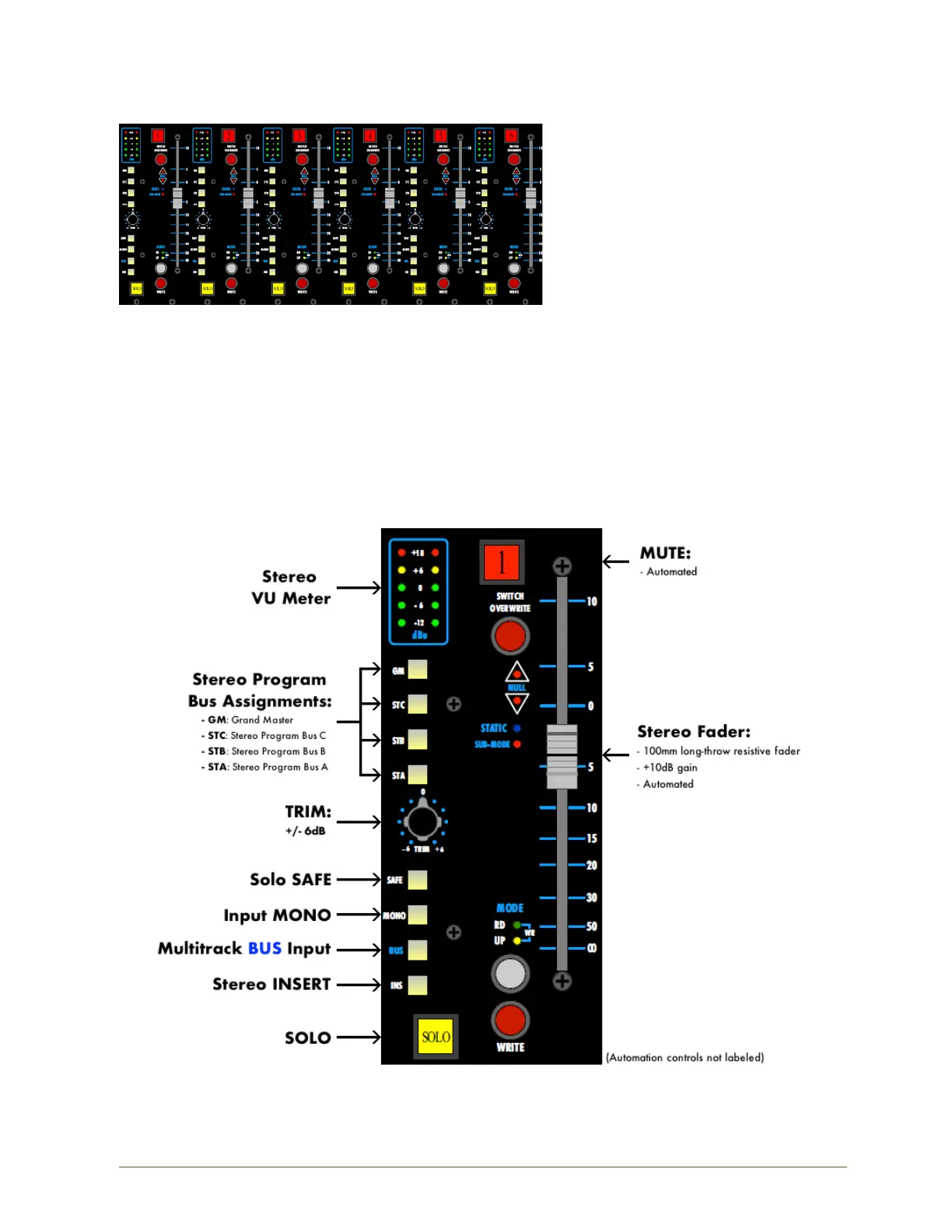

Each Stereo Return is equipped as follows:
• Balanced, low-impedance, line-level inputs
• Alternate input from associated pair of Multitrack Buses
• Input TRIM: +/- 6dB
• Balanced stereo INSERT (controlled by automation)
• Mono input summing
• Stereo Direct Output patch points
• 100mm long-throw resistive automated fader: +10dB to -∞dB range
• MUTE (controlled by automation)
• SOLO with Solo SAFE
• 5-segment LED meter
