Monitor System Patch Points
Control Room Monitor Patch Points

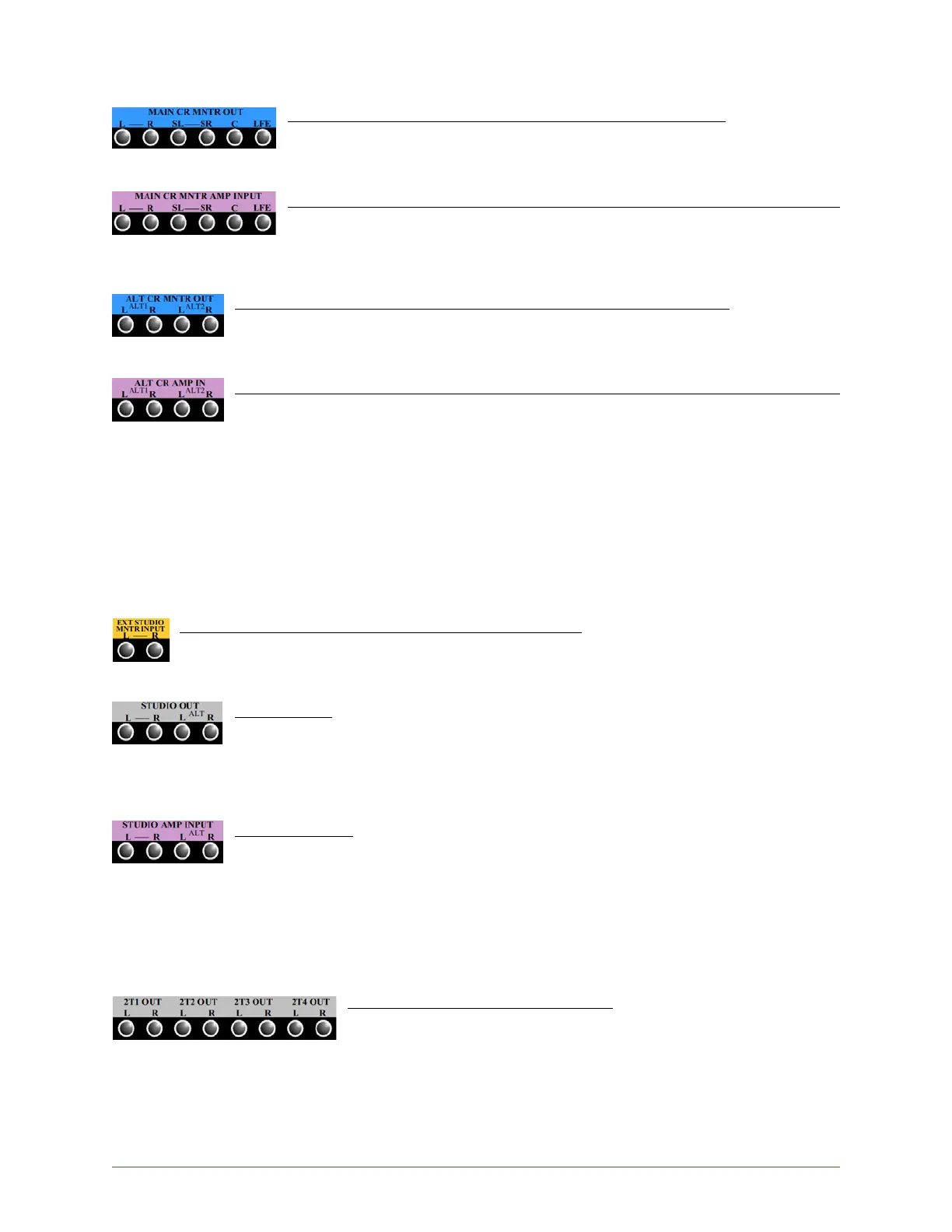

MAIN CR MNTR OUT (Main Control Room Monitor Outputs): Outputs to the
MAIN control room monitor system
Half-normalled to MAIN CR MNTR AMP INPUT
Outputs split if patched
MAIN CR MNTR AMP INPUT (Main Control Room Monitor Amplifier Inputs):
Inputs to the main control room monitor amplifiers
• Half-normalled from MAIN CR MNTR OUT
• Breaking input: Inserted patch cord will replace the feed to the main
monitor amps with the patch cord signal
ALT CR MNTR OUT (Alternate Control Room Monitor Outputs 1 & 2): Outputs to the
alternate control room monitor systems 1 & 2
Half-normalled to ALT CR MNTR AMP INPUT 1 & 2
Outputs split if patched
ALT CR MNTR AMP INPUT (Alternate Control Room Monitor Amplifier Inputs 1 & 2):
Inputs to the alternate control room monitor amplifiers 1 & 2
• Half-normalled from ALT CR MNTR OUT 1 & 2
• Breaking input: Inserted patch cord will replace the feed to the alternate
monitor amps with the patch cord signal
CAUTION: Exercise great care when patching into any of the Amplifier Input (AMP IN)
patch points. There is no level control between these patch points and the
inputs to the monitor system amplifiers. Patching unattenuated signals into
these patch points can result in very loud output from the Control Room monitor
system.
Studio Loudspeaker Patch Points
EXT STUDIO MNTR INPUT (External Studio Monitor Input): External input to the studio monitor
source selector
• The EXT IN button in the STUDIO monitor controls must be engaged for the
external source to be routed to the studio loudspeaker outputs
STUDIO OUT: Outputs to the main and alternate studio monitor systems
L-R feed are the outputs for the main studio loudspeakers
ALT L-R feed are the outputs for the alternate studio loudspeakers
L-R points are half-normalled to STUDIO AMP INPUT
ALT L-R points are half-normalled to ALT STUDIO AMP INPUT
Outputs split if patched
STUDIO AMP IN: Inputs to the main and alternate studio monitor amplifiers
L-R feed are the inputs for the main studio amps
ALT L-R are the inputs for the alternate studio loudspeakers
L-R points are half-normalled from STUDIO OUT
ALT L-R points are half-normalled from ALT STUDIO OUT
Patching to these points will replace the feed to the studio monitor amps with
the patch cord signal
External Playback Source Patch Points
2T1-2T4 OUT (2-Track Outputs 1-4): Returns from the external 2-
track record/playback device outputs
Half-normalled to 2 TRACK MNTR IN 1-4
