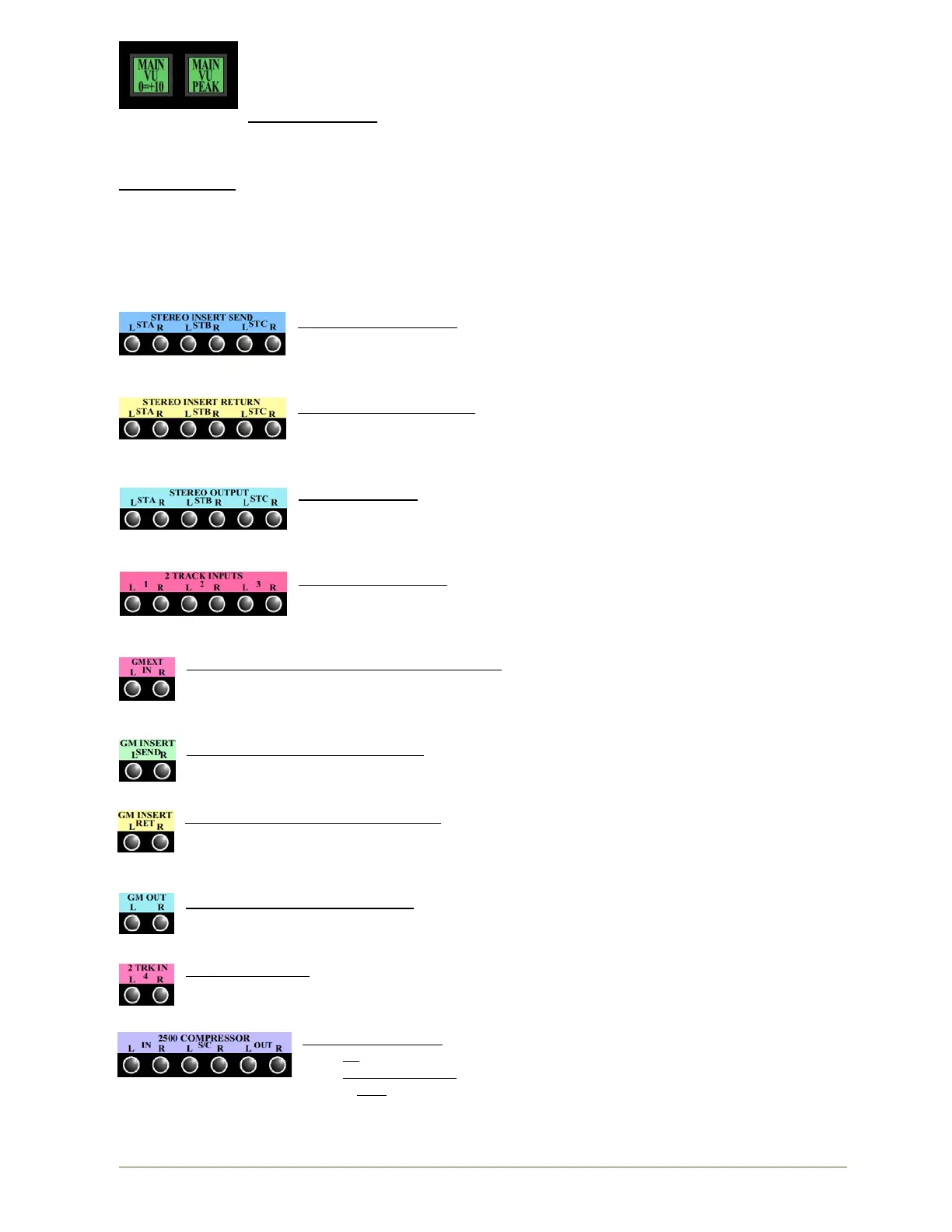

The Main Meters have two controls in the METER SELECT area of the Master Section.
The METER SELECT controls for the Main Meters function as follows:
MAIN VU 0=+10: Inserts a -10dB pad before the Main Meter inputs
• Use to meter high level signals
• Illuminates when engaged
MAIN VU PEAK: Changes the Main Meter ballistics from VU to Peak
• A fixed peak hold circuit feeds the meter
• Illuminates when engaged
Stereo Program Master Patch Points
The following section outlines Stereo Program Master patch points.
STEREO INSERT SEND: Insert Send from stereo Program Masters A, B, C
 Always active
 Pre-fader
STEREO INSERT RETURN: Insert Return to stereo Program Masters A, B, C
 Patched signal is inserted in the Program Master signal flow when
the INS button is engaged
 Pre-fader
STEREO OUTPUT: Main outputs for stereo Program Masters A, B, C
• Half-normalled to 2 TRACK INPUTS 1, 2, 3
• Outputs split if patched
2 TRACK INPUTS 1-3: Input to 2-track recorders 1-3
• Half-normalled from STEREO OUTPUT A, B, C
• Breaking input: Inserted patch cord will replace normalled
connection
GM EXT IN (Grand Master External Input): Stereo external inputs to the Grand Master
summing bus
• The EXT button on the Grand Master must be engaged for the external source to be
routed to the Grand Master summing bus
GM INSERT SEND (Grand Master): Insert Send from the stereo Grand Master
 Always active
 Pre-fader
GM INSERT RETURN (Grand Master): Insert Return to the stereo Grand Master
 Patched signal is inserted in the Program Master signal flow when
the INS button is engaged
 Pre-fader
GM OUTPUT (Grand Master Out): Main outputs for the stereo Grand Master
• Half-normalled to 2 TRACK INPUT 4
• Outputs split if patched
2 TRACK INPUT 4: Input to 2-track recorder 4
• Half-normalled from STEREO OUTPUT A, B, C
• Breaking input: Inserted patch cord will replace normalled connection
2500 COMPRESSOR: 2500C stereo Bus Compressor patch points
• IN: Left/Right compressor input
• S/C (side chain): Left/Right input to the compressor detection path
• OUT: Left/Right compressor output
