control room Monitor Source is replaced with the output of the Solo Bus and the Solo Bus is displayed
on the LEFT and RIGHT Main Meters (SOLO).

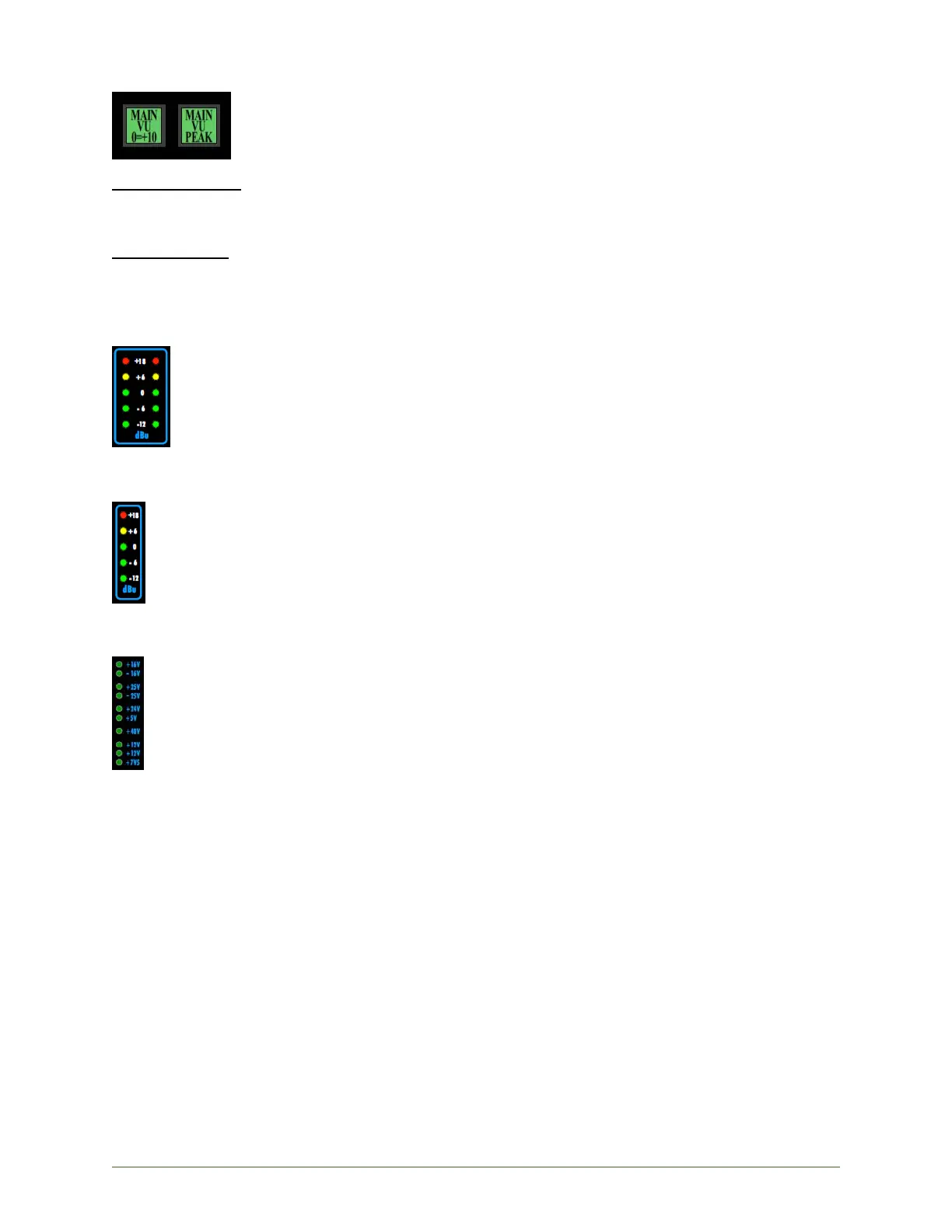

The Main Meters have two controls in the METER SELECT area of the Master Section.
The METER SELECT controls for the Main Meters function as follows:
MAIN VU 0=+10: Inserts a -10dB pad before the Main Meter inputs.
• Use to meter high level signals
• Illuminates when engaged
MAIN VU PEAK: Changes the Main Meter ballistics from VU to Peak
• A fixed peak hold circuit feeds the meter
• Illuminates when engaged
Stereo Return Meters
Each Stereo Return is equipped with a stereo 5-segment meter that indicates output level.
Auxiliary Master Meters
Each Auxiliary Masters is equipped with a 5-segment meter that indicates output level.
Power Supply Voltage Indicators
LED voltage indicators provide a quick visual indication of the status of the console power supply
units and are most often used in maintenance and trouble-shooting applications. Green indicates
the correct voltage level. Red indicates there is a possible voltage rail failure. Turn the
console off and investigate immediately.
• +16V
• -16V
• +25V
• -25V
• +24V
• +5V
• +48V
• +12V
• +12V
• +7.5V
