APRILIA TUONO V4 R a-PRC ABS User Manual

•
1 Flanged M6x16 screw
•
1 Secondary air solenoid mounting
•
1 Secondary air pipe
•
1 Secondary air pipe
•
1 Secondary air pipe
•
4 Rubber manifolds
•
4 Clip-on clamps
Motorcycle division

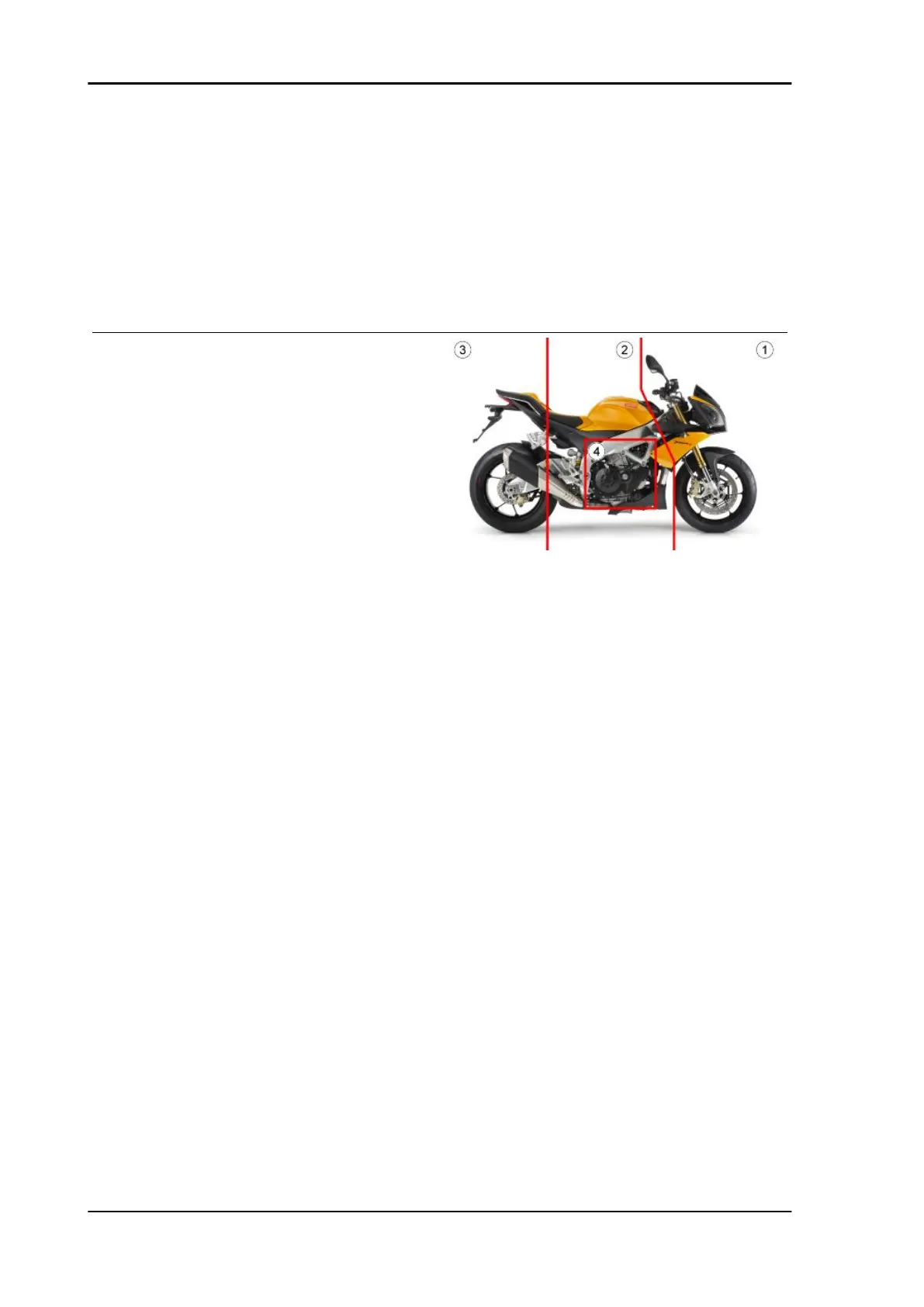

The wiring timing is subdivided in three essential
sections, as indicated in the figure.
1. Front section
2. Central section
3. Rear section
4. Engine
Special checks for the correct connection and laying of cables
It is extremely important that any security-locks for the following connectors are properly connected and
correctly tightened to ensure proper engine, and therefore proper vehicle, operation.
CHASSIS
•
Instrument panel connector
•
Demand sensor connectors
•
Start-up relay connector
•
Front speed sensor connector
•
Rear speed sensor connector
•
Fall sensor connector
•
Safety relay connector
•
Protection relay connector
•
Injection relay connector
•
Taillight connector
•
Fuel pump connector
•
Exhaust valve actuator connector
•
Engine-vehicle interface connector
•
Flywheel connector
•
Regulator connector
•
Fan connectors
•
Starter motor eyelet
•
Stand switch connector
Electrical system TUONO V4 R a-PRC ABS
ELE SYS - 100
