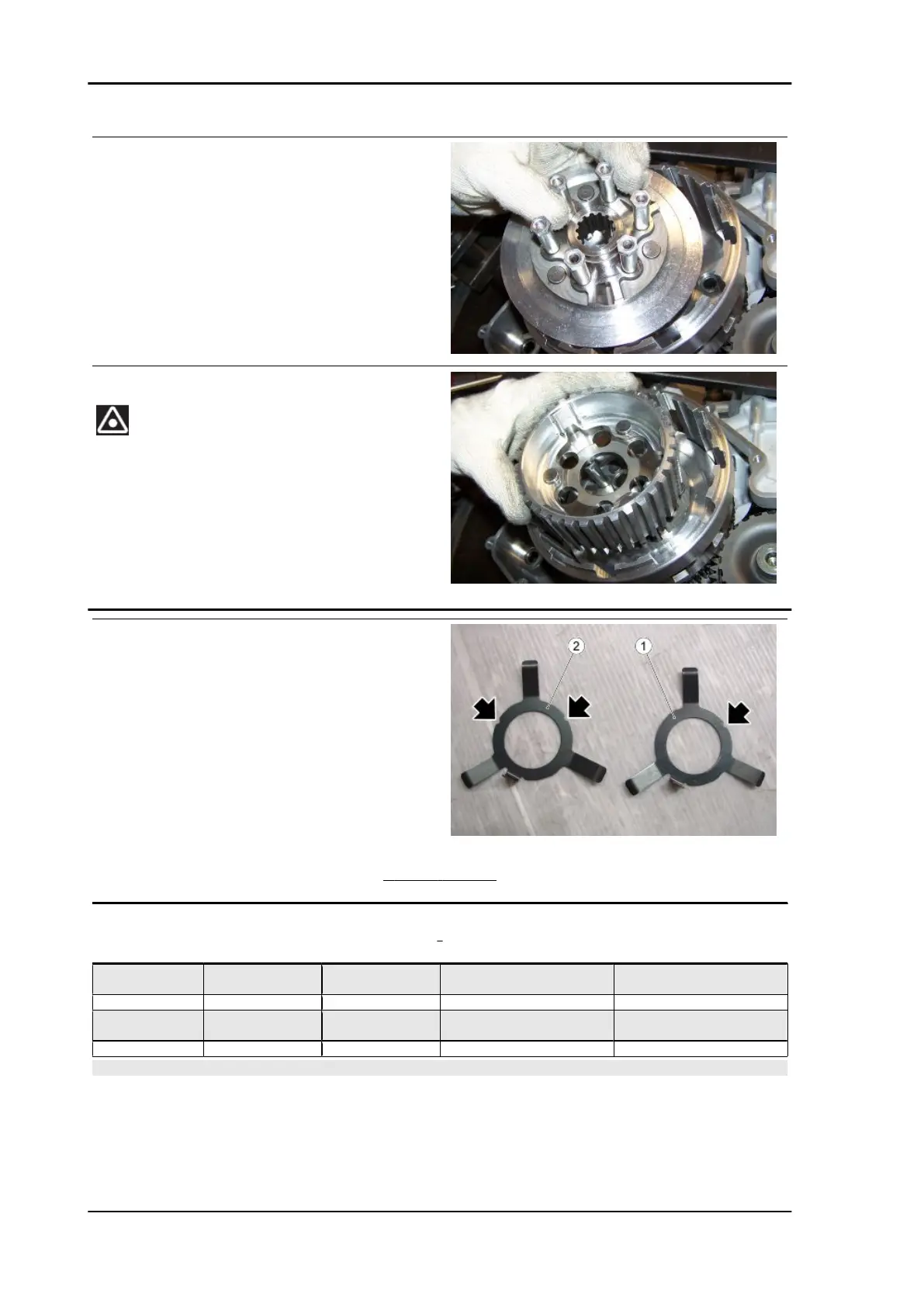

Install the clutch hub cam tower.
•
Position the clutch hub.
HOUSE THE THREE CLUTCH HUB CAMS IN THE SPECIFIC
CLUTCH HUB CAM TOWER INCLINES.
•
The slipper springs are distinguishable
by the cleats. In the 0.8mm spring (1)
there is only one notch, while in the
0.9mm spring (2) there are two notch-
es.
SLIPPER SPRINGS
First assembly solution Specific assistance
-
Engine No. No. Spring - Lining Washer - Lining No. Spring - Lining Washer - Lining
Up to No. 10927 3 - 0.8 mm NO 3 - 0.8 mm + 1 - 0.8 mm (NO
TEETH)
YES - 0.8 mm
Alternatively Alternatively
From No. 10928 to
No. 12604
3 - 0.8 mm + 1 - 0.8
mm (NO TEETH)
YES - 0.8 mm 3 - 0.9 mm NO
Up to No. 12605 3 - 0.9 mm NO 3 - 0.9 mm NO
CAUTION
ONCE THE SPRINGS HAVE BEEN RECEIVED BY THE SPARE PARTS, VERIFY THE THICKNESS
TO CHOOSE THE RIGHT COMBINATION AS IN THE TABLE
Engine TUONO V4 R a-PRC ABS
ENG - 286
