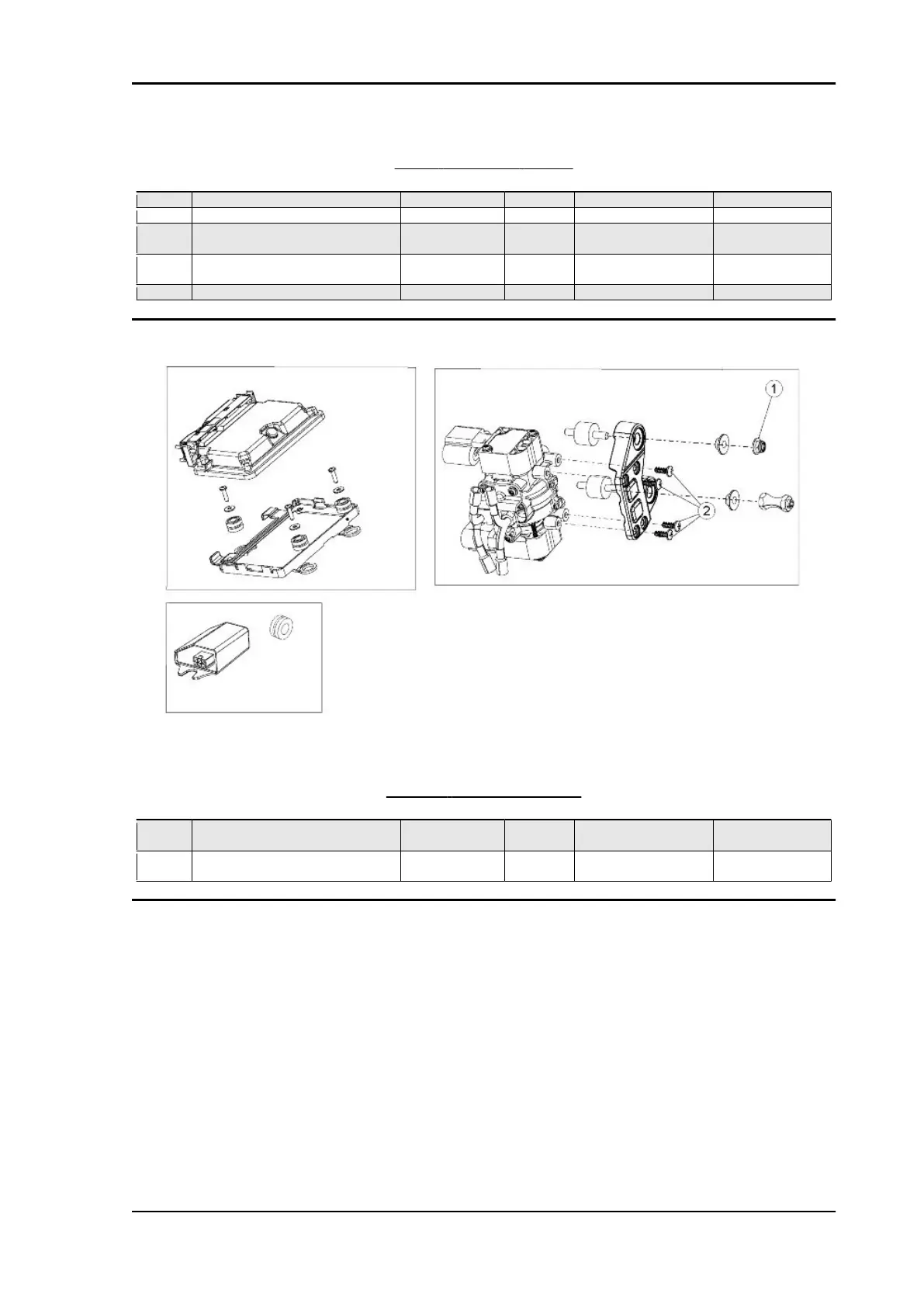

FRONT ELECTRICAL SYSTEM
pos. Description Type Quantity Torque Notes
1 Fall sensor mounting fixing screw M6 1 8 Nm (5.90 lb ft) -
2 Horn fixing screw M8 1 15 Nm (11.06 lb ft) -
3 Screw fastening the voltage regula-
tor to the inner fairing
M6 2 6 Nm (4.43 lb ft) -
4 Shear head screw (to the left of the
ignition lock)
M8 1 Manual Tighten until the
head shears off
5 Right hand ignition lock screw M8 1 20 Nm (14.75 lb ft) -
CENTRAL ELECTRICAL SYSTEM
pos. Description Type Quantity Torque Notes
1 Upper Silentblock nut, demand sen-
sor mounting bracket
M6 1 5 Nm (3.69 lb ft) -
2 Demand sensor fixing screw to
mounting plate
SWP 4.9 4 1.2 Nm (0.88 lb ft) -
TUONO V4 R a-PRC ABS Characteristics
CHAR - 29
