APRILIA TUONO V4 R a-PRC ABS User Manual

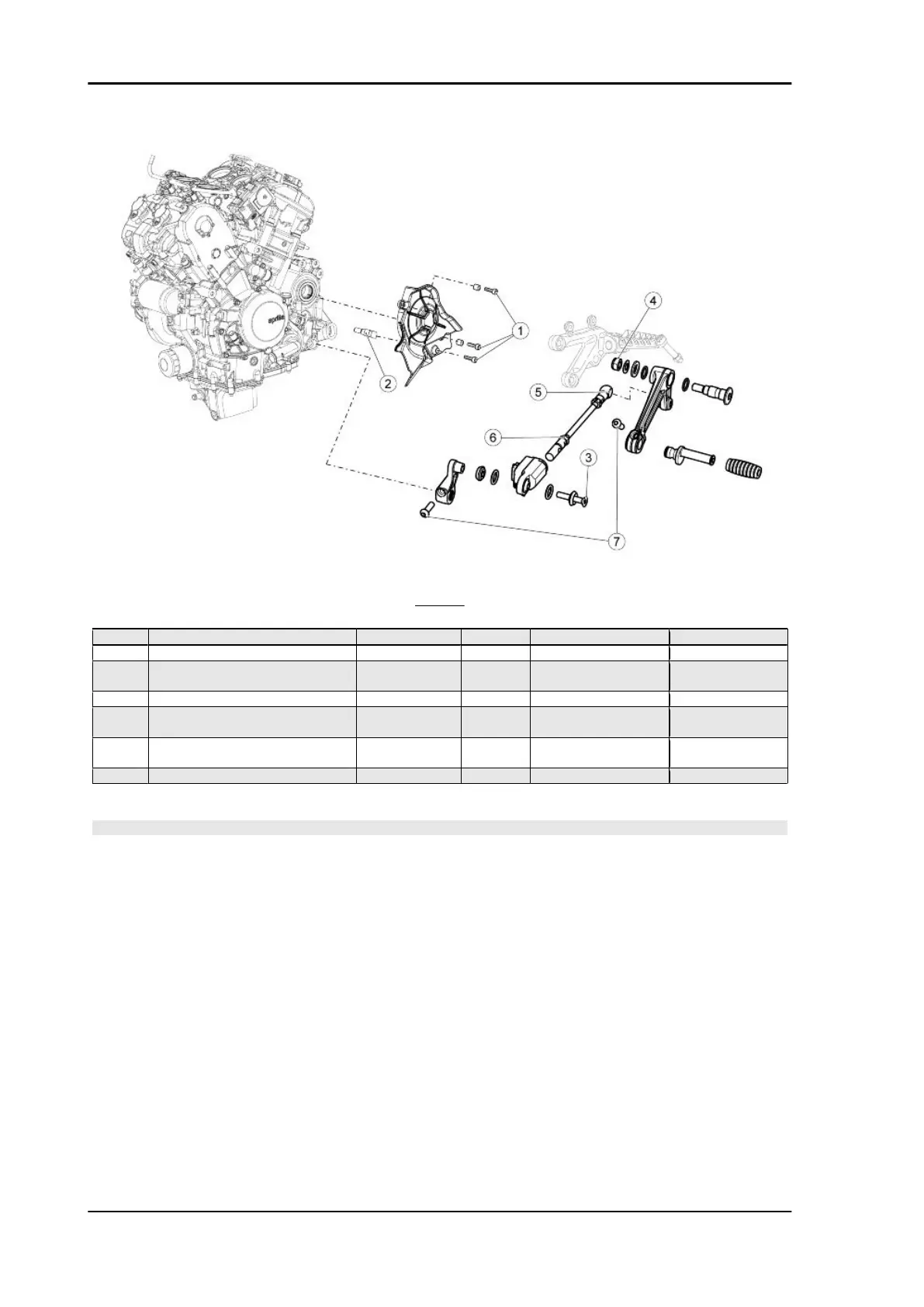

ENGINE
pos. Description Type Quantity Torques Notes
1 Pinion protector casing fixing screws M6 3 8 Nm (5.90 lb ft) -
2 Threaded stand-off - 1 8 Nm (5.90 lb ft) -
3 Countersunk flat head hex socket
screw
M6x35 1 10 Nm (7.38 lb ft) Loct.
4 Self-locking nut M8 1 25 Nm (18.44 lb ft) -
5 Fastening between gearbox tie-rod
joint and gear lever
- 1 8 Nm (5.90 lb ft) Loct.
6 Nut used to fasten the gearbox tie-
rod to the quick shift device
- 1 8 Nm (5.90 lb ft) -
7 TBEI screws M6x20 2 8 Nm (5.90 lb ft) -
•
Apply water-repellent grease between the O-rings and the Quick Shift uniball
NOTE
ONCE ASSEMBLE, THE DISTANCE BETWEEN THE UNIBALL AND THE JOINT MUST BE AP-
PROXIMATELY 180mm (7.09in).
Characteristics TUONO V4 R a-PRC ABS
CHAR - 30
