REAR BRAKE PUMP
pos. Description Type Quantity Torque Notes
1 Rear brake rod lock nut M6 1 12 Nm (8.85 lb ft) -
2 Rear brake pump fixing screws M6 2 8 Nm (5.90 lb ft) -
3 Rear brake lever fixing screw M8 1 25 Nm (18.44 lb ft) -

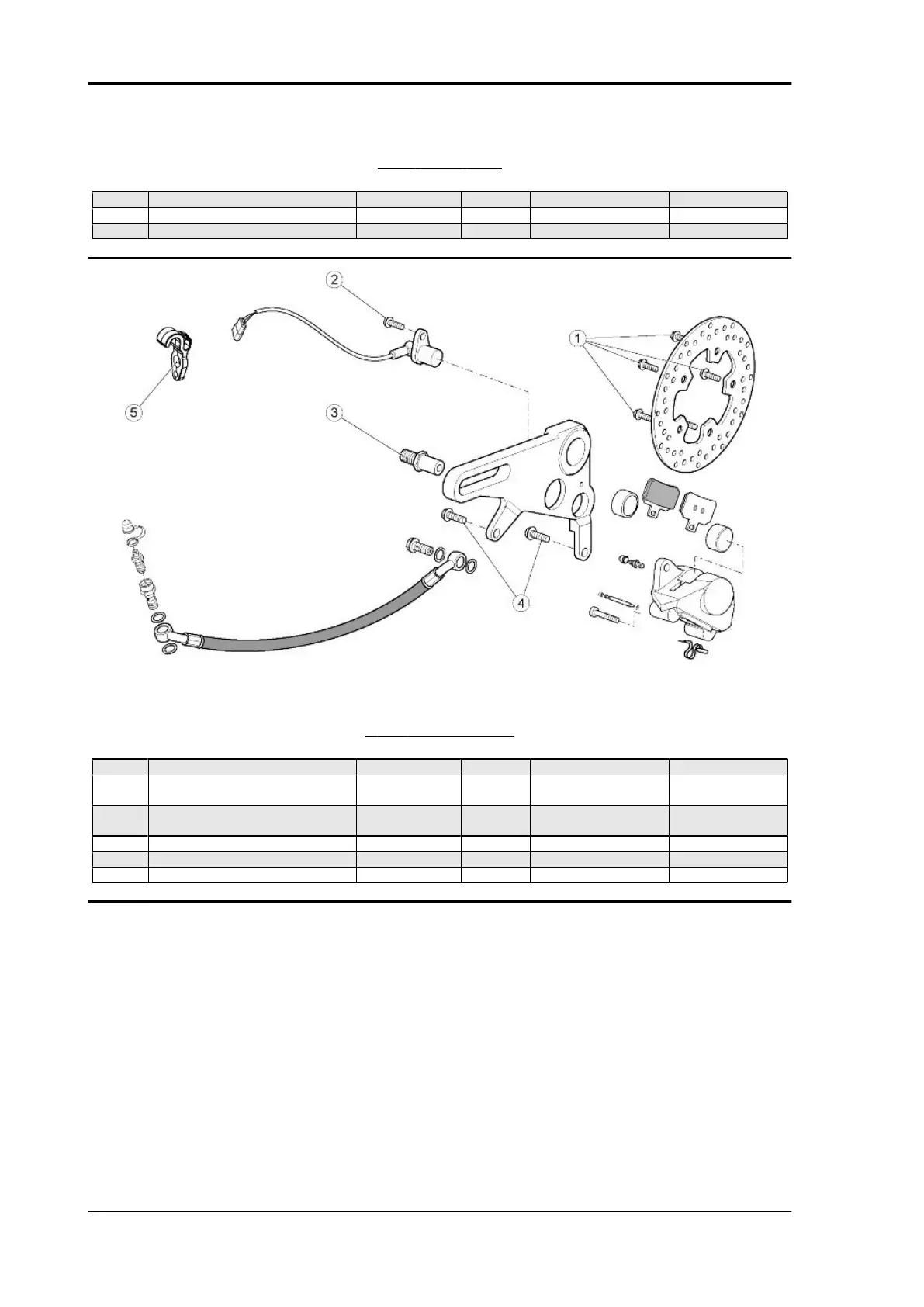

REAR BRAKE CALLIPER
pos. Description Type Quantity Torque Notes
1 Rear brake disc fixing screws M8 5 30 Nm (22.13 lb ft) Loct. 243
2 Screw fastening odometer sensor
onto rear brake calliper mounting
M6 1 12 Nm (8.85 lb ft) -
3 Rear brake calliper support plate
locking pin
M12 1 50 Nm (36.88 lb ft) Loct. 243
4 Rear callipers fastening screw M8 2 25 Nm (18.44 lb ft) -
5 Brake pipe clamp fixing screw M5 2 4 Nm (2.95 lb ft) -
- Brake pipe bracket fixing screw M5 2 4 Nm (2.95 lb ft) -
Characteristics TUONO V4 R a-PRC ABS
CHAR - 34
